• Model NO.：JBC30R
• Engine：Yuchai 85kw
• Operating Weight：7100 Kg
• Discharge Way：Self Dumping
• Water Supply Mode：Automatic
• Transport Package：Nude Packing
• Specification：6830*2800*3200 mm
• Trademark：Luzun
• Origin：Shandong, China
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. JBC30R Engine Yuchai 85kw Operating Weight 7100 Kg Discharge Way Self Dumping Water Supply Mode Automatic Transport Package Nude Packing Specification 6830*2800*3200 mm Trademark Luzun Origin Shandong, China Production Capacity 2000PCS/Year

Product Description

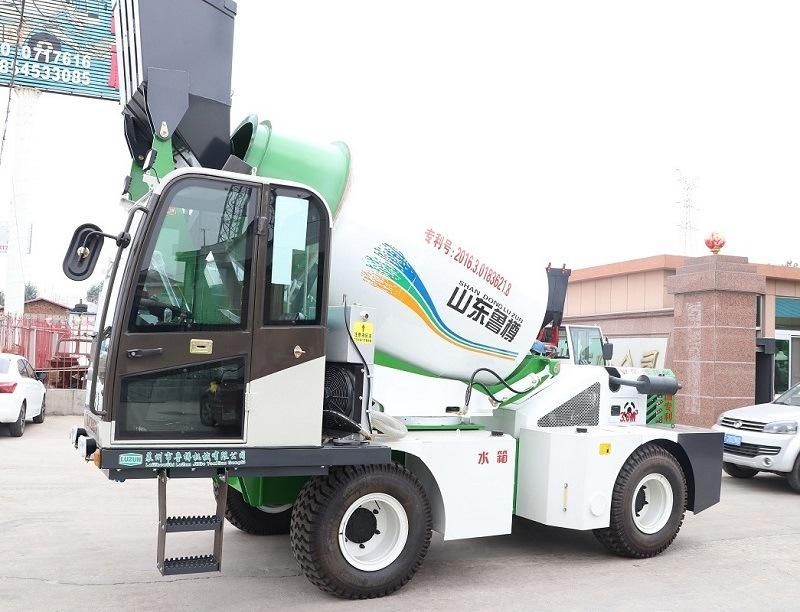

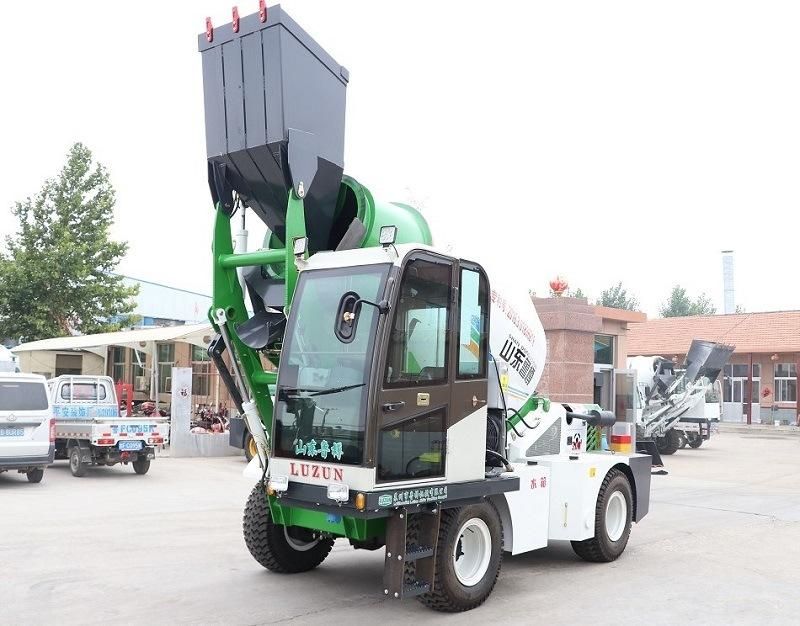

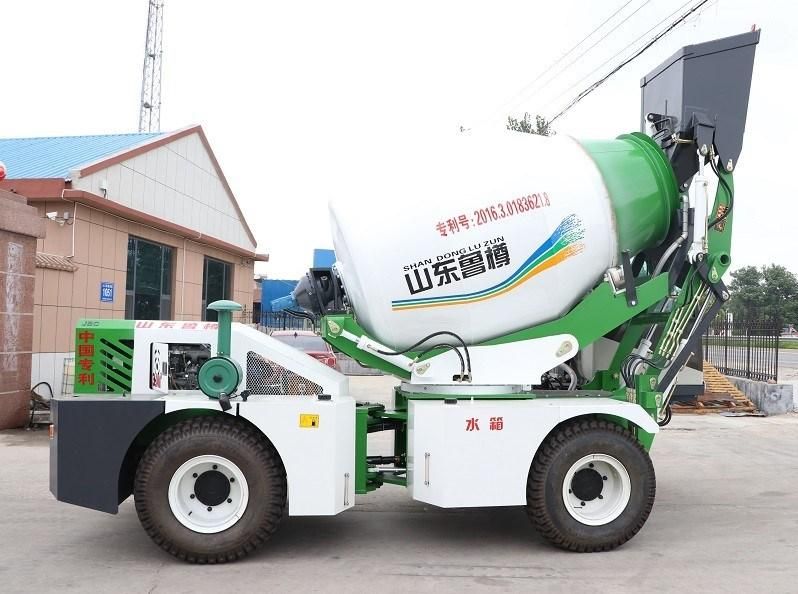

China 3m3 Output Capacity JBC30R Automatic Self Loading Mobile Concrete Mixer
 Product Description

Self-loading mixer, also known as automatic loading mobile concrete mixer, is a kind of equipment that combines the functions of concrete transport truck and concrete mixing station. It integrates concrete loading, metering, mixing and discharging, and can realize concrete transportation. And concrete mixing equipment for on-site concrete construction operations. The self-feeding mixer truck greatly improves production efficiency and reduces production time and cost. It has many features of simplicity, speed and efficiency.


Model	JBC20R	JBC30R	JBC35R	JBC40R
Output capacity	2.5 m3	3.0 m3	3.5 m3	4.0 m3
Dipper capacity	0.5~1.0 m3	0.5~1.0 m3	0.5~1.0 m3	0.5~1.0 m3
Engine	Yuchai 78kw	Yuchai 85kw	Yuchai 85kw	Yuchai 85kw
Productivity	/	15 m3/h	/	/
Operating weight	5800 kg	7100 kg	7100 kg	8100 kg
Dimension	5650*2210*3450 mm	6830*2800*3200 mm	6830*2800*3200 mm	8200*2900*3260 mm
Timing water supply system	Yes	Yes	Yes	Yes
Weighing function	Automatic	Automatic	Automatic	Automatic
Automatic rotation	Yes	Yes	Yes	Yes
Discharge Way	Self Dumping	Self Dumping	Self Dumping	Self Dumping
Water Supply Mode	Automatic	Automatic	Automatic	Automatic

Self Loading Mobile Concrete Mixer is purchased and employed as a merger of Loader, Mobile Batching Plant and Transit Mixer to fulfil the small to medium volume concrete needs for the construction purpose.
