• Model NO.：SR23MR
• Travel Speed：40cm,s
• Certification：ISO 9001:2008
• Condition：New
• Model：Shantui Sr23mr
• Operating Weight：23000kg
• Engine：Weichai Wp10
• Rated Power：162kw,2200rpm
• Transport Package：Roro
• Specification：23000kg
• Trademark：SHANTUI
• Origin：Shandong, China
• HS Code：8429401100
• Production Capacity：10000 Units, Year

Basic Info.

Model NO. SR23MR Travel Speed 40cm/s Certification ISO 9001:2008 Condition New Model Shantui Sr23mr Operating Weight 23000kg Engine Weichai Wp10 Rated Power 162kw/2200rpm Transport Package Roro Specification 23000kg Trademark SHANTUI Origin Shandong, China HS Code 8429401100 Production Capacity 10000 Units/ Year

Product Description

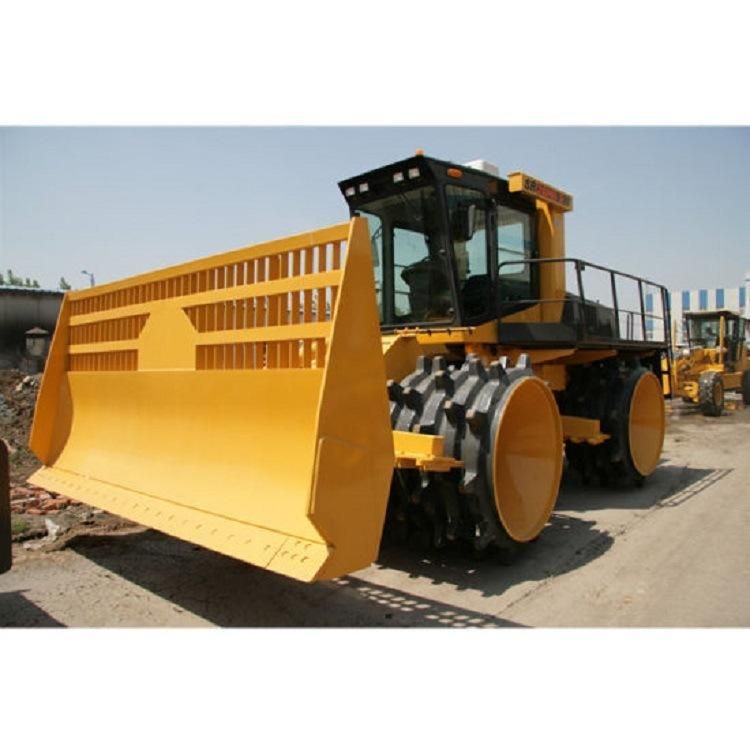

Trash Compactor SHANTUI 23000kg SR23MR Refuse Compactor
WHEEL ROAD ROLLER: SR23MR
OVERALL WEIGHT: 23000KG
ENGINE POWER: With 162kW/2200rpm, this engine conforms to China-III emission regulation.
COMPACTING WIDTH: 3090mm

Operating cost
*The proprietary match technology and the optimal power curve can achieve high operating efficiency and reasonable fuel economy and reduce the composite fuel consumption by 5%~8%.
* The core electric and hydraulic parts feature high reliability to reduce the malfunction downtime.
* High value maintenance.
Working performance
* The installed Weichai China-III electronic control engine can maintain the machine under best working status with strong power to ensure the compacting quality and high efficiency and energy-saving.
* The hydro-mechanically driven power drive system is professionally designed and precisely manufactured specially for severe waste treatment environment and provide higher productivity.
* The high capacity blade can bulldoze the waste during the compacting to improve the operating efficiency.
* The professionally designed compacting drum guarantees the effective compacting and crushing of the waste. The compacting teeth are made of corrosion-resistant and wear-resistant material to prolong the life of compacting drum.
High maintenance convenience
* The lubricating points are centrally arranged and the rear hood adopts combination openable structure to improve the repair and maintenance convenience.
* The connection between blade and front frame adopts unique seat bolted cover and ball joint to ease the assembling, which can be easily replaced if worn.
High operating comfort
*The full-enclosed cab and the air purifier can guard the driver against the influence of severe working environment.
* The traveling of machine is controlled by electronic control shifting joystick to achieve comfortable and handy operations, effectively mitigate operator's fatigue, and improve the operating efficiency.
* The lifting of blade is controlled by mechanical linkage, featuring simple operations and convenient repairs.
* The comfortable cushioned seat is adjustable in longitudinal position and is installed with left and right folding armrests and retractable seat belt and the A/C and heating system is installed to achieve safer and more comfortable operations.


Parameter name	SR23MR (Standard version)
Performance parameters
Operating weight (Kg)	23000
Exciting force (KN)	-
Vibration frequency (Hz)	-
Nominal amplitude (mm)	-
Ground pressure (KPa)	-
Gradeability (%)	-
Engine
Engine model	WP10
Rated power/rated speed (kW/rpm)	162/2200
Overall dimensions
Overall dimensions of machine (mm)	7360*3200*3640
Driving performance
Forward speed (km/h)	4.37/6.82/10
Reversing speed (km/h)	4.37/6.82
Chassis System
Wheelbase (mm)	-
Tank capacity
Fuel tank (L)	400
Working device
Compacting width(mm)	3090
