• Model NO.：SR26YT
• Certification：ISO 9001:2008
• Condition：New
• Model：Shantui Sr26yt
• Operating Weight：26000kg
• Engine：Shangchai Sc7h
• Rated Power：118kw,2000rpm
• Transport Package：Roro
• Specification：26000kg
• Trademark：SHANTUI
• Origin：Shandong, China
• HS Code：8429401100
• Production Capacity：10000 Units, Year

Basic Info.

Model NO. SR26YT Certification ISO 9001:2008 Condition New Model Shantui Sr26yt Operating Weight 26000kg Engine Shangchai Sc7h Rated Power 118kw/2000rpm Transport Package Roro Specification 26000kg Trademark SHANTUI Origin Shandong, China HS Code 8429401100 Production Capacity 10000 Units/ Year

Product Description

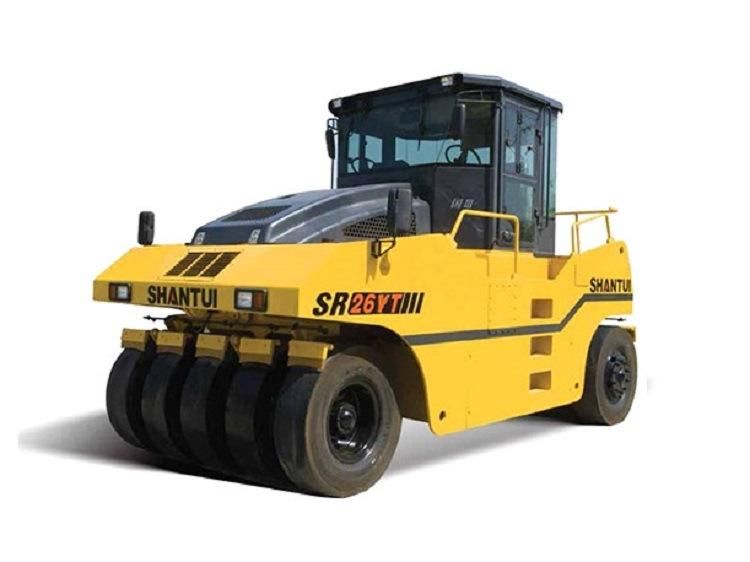

SHANTUI Pneumatic Road Roller SR26YT Hydraulic Roller with SDEC Engine
WHEEL ROAD ROLLER: SR26YT
OVERALL WEIGHT: 26000kg
ENGINE POWER: With 118kW/2000rpm, this engine conforms to China-III emission regulation.
COMPACTING WIDTH: 2750mm

Operating cost
* The proprietary match technology can achieve high operating efficiency and reasonable fuel economy.
* The configuration of brand core parts achieves high quality and reliability and reduces the malfunction downtime.
Working performance
* The high-strength three-point swing M frame for front wheels guarantees the uniform compacting on rugged ground.
* The special tires for construction machinery feature good wear resistance and long life.
* The hydraulic drive and the stepless speed regulation achieve comfortable and efficient operations, avoid the material accumulation due to sudden acceleration and deceleration, and guarantee high compacting evenness.
* The four-stage brake features short braking distance and high safety and meets the needs under diversified working conditions.
High maintenance convenience
* The centralized oil drainage system eases the maintenances of engine, transmission, radiator, fuel tank, and hydraulic oil tank.
* All body parts are designed with service hatches and uplifting covers to ease the maintenances and repairs of parts.
* The centralized lubrication system for the rear wheels eases the centralized maintenances of the rear wheels.
High operating comfort
* The downward exhaust design and the optimized heat dissipation air ducts reduce the radiation of engine compartment temperature towards the cab.
* The double control mode is designed strictly as per ergonomic principles and the functional buttons are centralized to ease the access.
* The octahedral cab provides a broad vision.

Parameter name	SR26YT
Performance parameters
Operating weight (Kg)	26000
Exciting force (KN)	-
Vibration frequency (Hz)	-
Nominal amplitude (mm)	-
Ground pressure (KPa)	200-420
Gradeability (%)	20
Engine
Engine model	SC7H
Rated power/rated speed (kW/rpm)	118/2000
Overall dimensions
Overall dimensions of machine (mm)	5060*2892*3338
Driving performance
Forward speed (km/h)	F1:0-7,F2:0-14
Reversing speed (km/h)	R1:0-7,R2:0-14
Chassis System
Wheelbase (mm)	3840
Tank capacity
Fuel tank (L)	180
Working device
Compacting width(mm)	2750
