70HP 0.55m3 1.5 Ton Small Loader, Mini Wheel Loader
Jinan Sinoheng Import and Export Co., Ltd.- Certification:ISO9001: 2000
- Condition:New
- Rated Load:2000kg
- Transmission:Power Transmission
- Walking Mode:Wheeled
- Type:Small Loader
Base Info
- Model NO.:926
- Delivery Time:20 Days
- Rated Power:64HP
- Bucket Capacity:0.85m3
- Bucket Width:1800mm
- Max. Breakout Force:38kn
- Operating Weight:3600kg
- Dumping Height:3200mm
- Min Turning Radius:4500mm
- Usage:Universal Type
- Engine Power:<74kw
- Transport Package:Container
- Specification:ISO9001: 2000
- Trademark:SINOHENG
- Origin:China
- Production Capacity:500PCS,Month
Description
Descriptions & Specifications926 Description Parameter Engine Details Model HD4102 (WEI CHAI) Engine type In-linearrangement, water-cooled, four-cycle diesel Engine Rated Power 64HP Rated Speed 2400 r/min (rpm) Transmission System Type hydraulictorque converter Bucket Bucket Capacity 0.85m3 Bucket width 1800mm Max. Breakout Force 38KN Rated Load 2000kg Operating Weight 3600kg Overall Dimensions Overall Length (Bucket on ground position) 5600mm

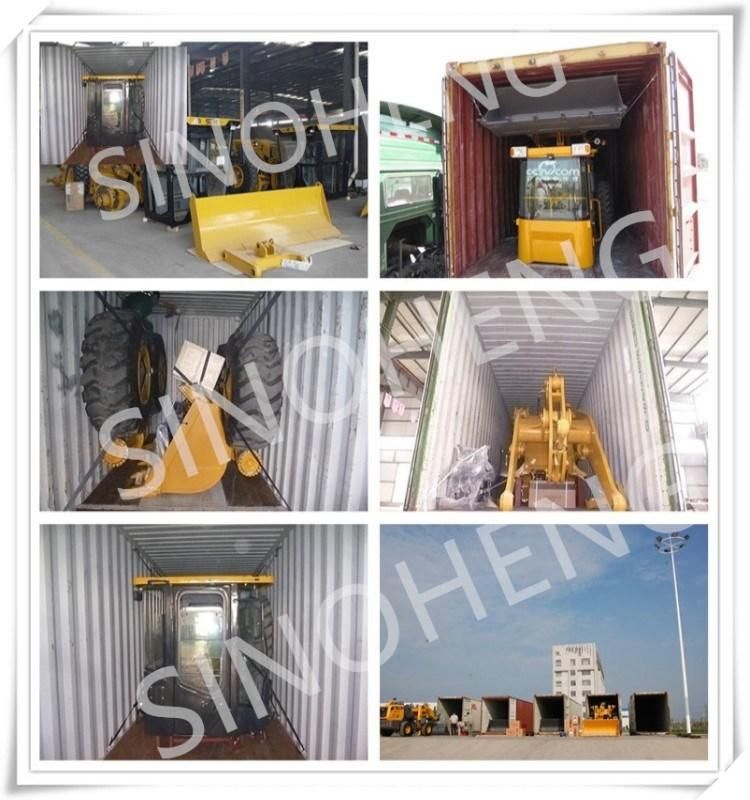

Overall Height Ground to Cab Top 2750mm Ground to exhaust pipe It is below from the top of cabin Dumping Height 3200mm Overall Width 1800mm Operating Specifications Steering System Articulated Frame with hydraulic power steering Min Turning Radius 4500mm Driving System four wheel drive ,four wheel brake, wheel reductor bridge. Brake System Service Brake Hydraulic disc brake on four wheels Parking Brake Hand operated Tyre Model 16.70-16 Width 34cm Diameter 90cm Wheelbase 2100mm Track 1460mm Shipment: 2units shipped in 1x40HC
