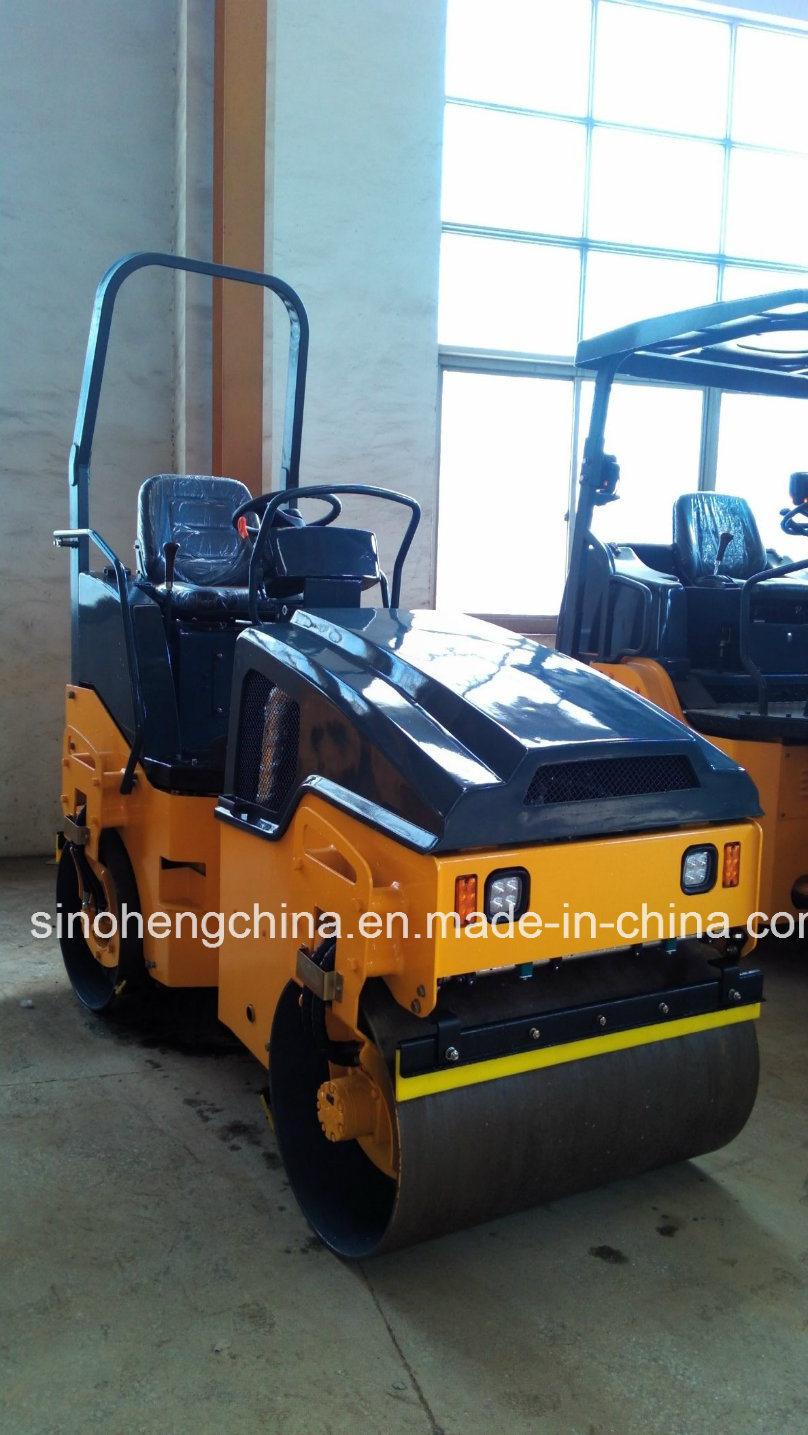

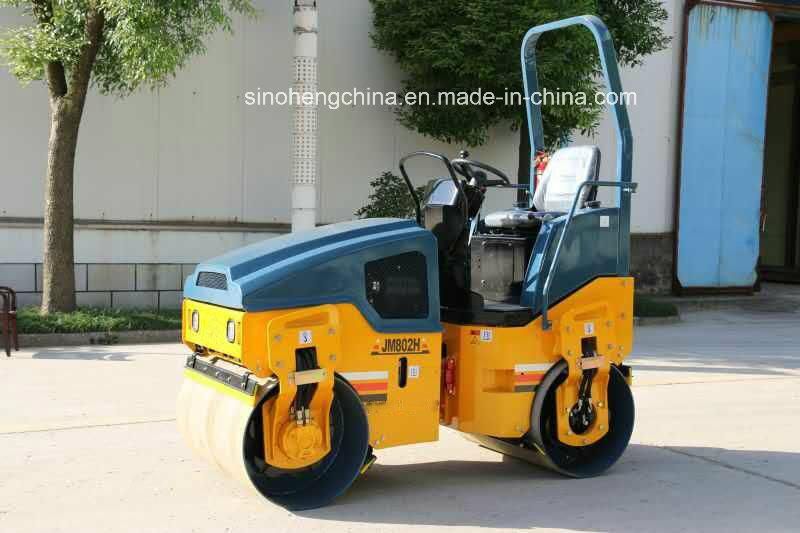

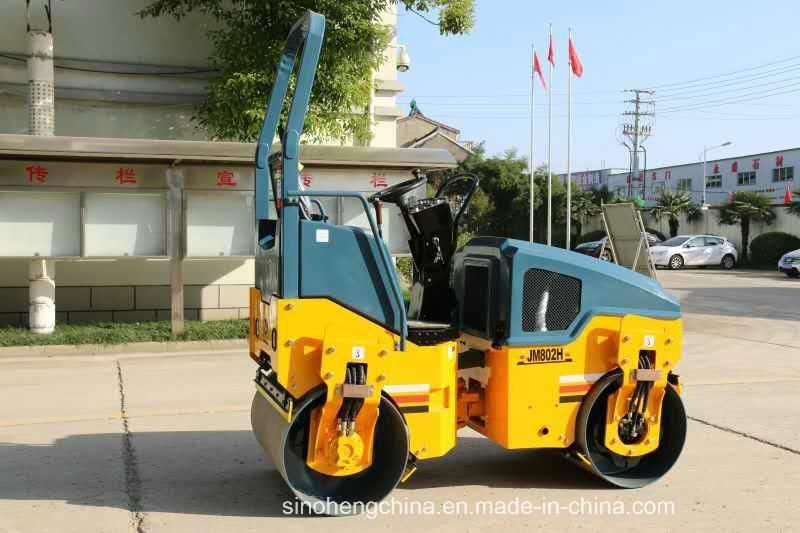

2000kg Double Drum Vibratory Road Roller Compactor Jm802h
Jinan Sinoheng Import and Export Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Steel Wheel
- Compaction Depth：0.45mm
- Engine Type：Diesel Engine
Base Info
- Model NO.：JM802H
- Travel Speed：8km,H
- Centrifugal Force：21kn
- Certification：CE, ISO 9001:2000
- Condition：New
- Operating Weight：2000kg
- Rolling Width：1000mm
- Vibration Frequency：65Hz
- Engine Power/Speed：18.4,2600kw , R,Min
- Transport Package：Container
- Specification：2600*1320*2580
- Trademark：SINOHENG
- Origin：China
- HS Code：84294019
- Production Capacity：500 Sets,Month
Description
Basic Info.
Model NO. JM802H Travel Speed 8km/H Centrifugal Force 21kn Certification CE, ISO 9001:2000 Condition New Operating Weight 2000kg Rolling Width 1000mm Vibration Frequency 65Hz Engine Power/Speed 18.4/2600kw / R/Min Transport Package Container Specification 2600*1320*2580 Trademark SINOHENG Origin China HS Code 84294019 Production Capacity 500 Sets/MonthProduct Description
2000kg Double Drum Vibratory Road Roller Compactor JM802H2 ton Full Hydraulic Vibratory Roller Compactor ApplicationsCompacting and repairing the general road base and asphalt pavement in narrow space, such as sidewalks, rural county road, parking area, stadium, trench, courtyard and so on. The highway road base and asphalt pavement are also suitable.
Main Features
1.Hydraulic double drum, two-speed range and stepless speed change .
2.Hydraulic double drum vibration, electronic controlled delayed starting of vibration with good compaction performance.
3.Hydraulic steering, articulated frame with flexible operation.
4.Equipped with electronic control pressurized water spraying system, high volume anti-corrosive water tank.
5.Hydraulic service brake, electronic self-locking parking brake, safe and reliable.
6.The front cover can be turned up in a big angel for easily maintenance.
7.Equipped with imported famous brand hydraulic components with reliable performance.
8.A trailer is provided for convenient transportation.
9.Imported Perkins engine is optional for you.
Technical parameters
| item | unit | JM802H |
| Operating Weight | kg | 2000 |
| Rolling width | mm | 1000 |
| Vibration frequency | Hz | 65 |
| Theoretical amplitude of vibration | mm | 0.45 |
| Exciting force | kN | 21 |
| Travel speed | km/h | 0~4/0~8 |
| Engine model | 3M78 | |
| Engine power/speed | kW / r/min | 18.4/2600 |
| Overall dimensions (L*W*H): | mm | 2600×1320×2580 |
