• Model NO.：TS50

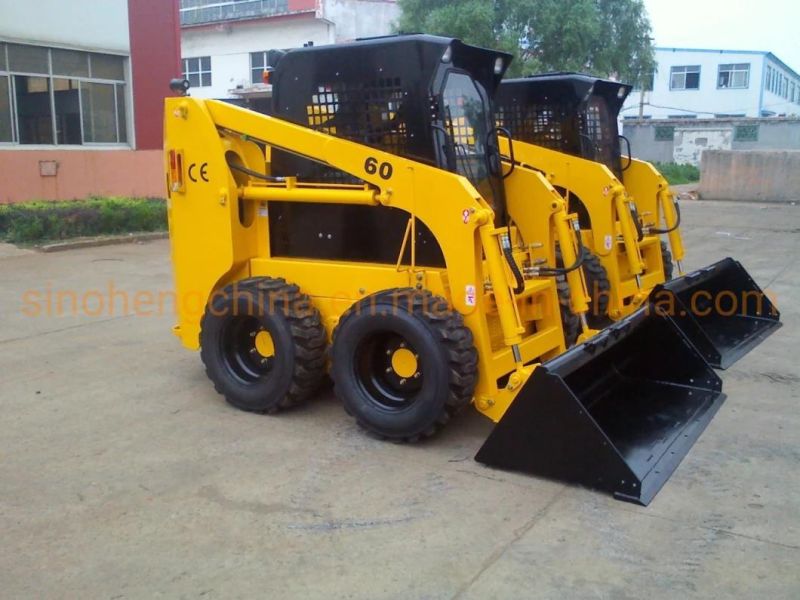

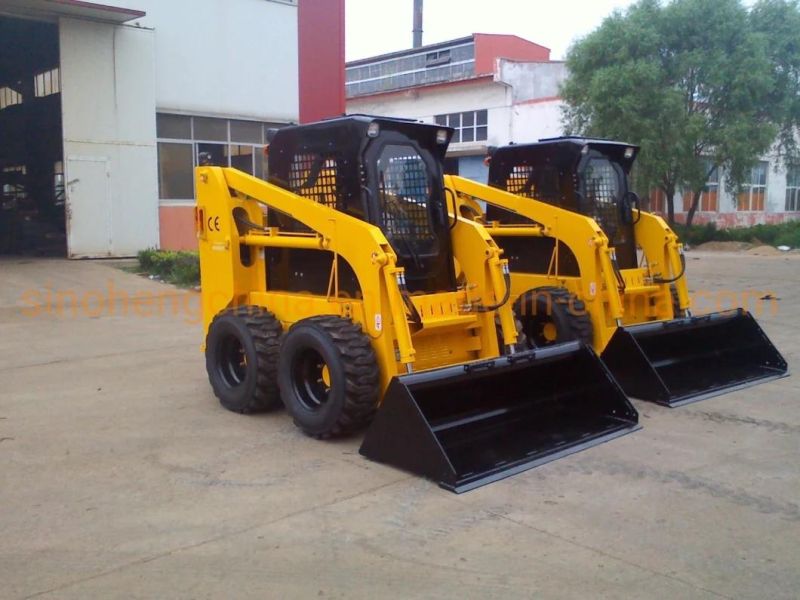

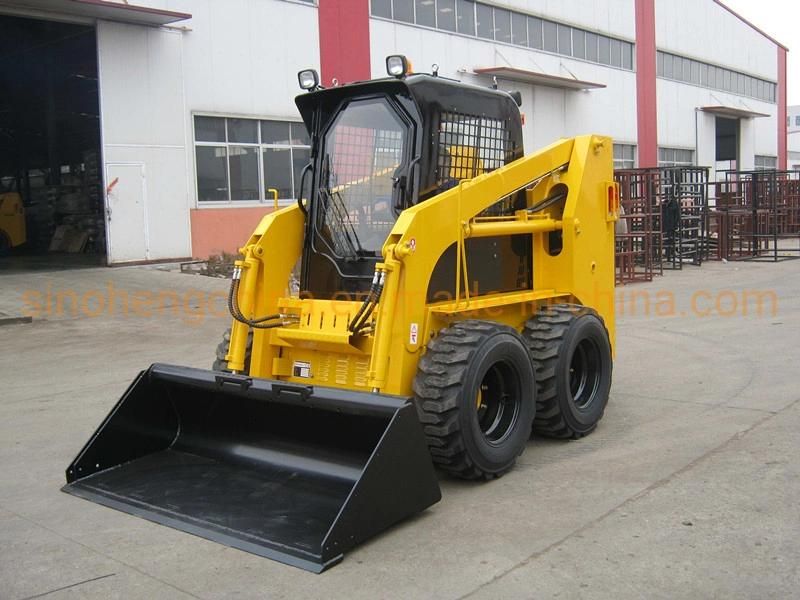

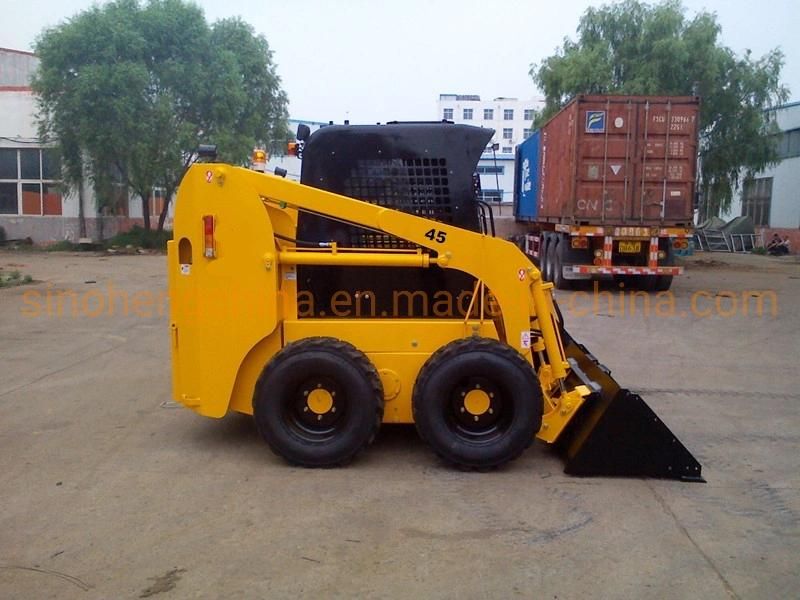

• Type：Skid Steer Loader
• Rated Power (Kw)：30
• Bucket Capacity(M3)：0.3
• Operating Load(Kg)：700
• Dumping Height(mm)：2100
• Dumping Reach(mm)：790
• Wheelbase(mm)：1240
• Bucket Width(mm)：1500
• Displacement (L)：2.156
• Max. Speed (Km/H)：8
• Fuel Tank Capacity(L)：50
• Transport Package：Nude,Container
• Specification：CE
• Trademark：SINOHENG
• Origin：China
• Production Capacity：500 Units Per Month

Model
Main technical parameterTS50AOverall operating height(mm)3350BHeight to bucket hinge pin(mm)2770CHeight to top of cab(mm)2050DHeight to bottom of level bucket(mm)2603EOverall length without bucket(mm)2300FOverall length with bucket(mm)2950GDumping angle at maximum height(°)40HDumping height(mm)2100IDumping reach(mm)790JRollback of bucket on ground(°)30KRollback of bucket at full height(°)104LWheelbase(mm)1240MGround clearance(mm)140NAngle of departure(°)20OFront turning radius without bucket(mm)1064PFront turning radius(mm)1825QRear turning radius(mm)1264RRear axle to bumper(mm)594STread width, centerline to centerline(mm) 1102TWidth(mm)                 1402UBucket width(mm)1500

Model	TS50
Engine model	485
Bore x stroke(mm)	85×95
Rated power (Kw)	30
Rotating speed(rpm)	2650
Number of cylinders	4
Max. torque (N.m)	136
Displacement  (L)	2.156
Max. Speed  (km/h)	8
Tire(track)  modei	300×52.5
Operating load(kg)	700
Lifting	Arc lifting
Bucket capacity(m3)	0.3
Rated flux(L/min)	40
High Flow Flux(L/min)
Fuel tank capacity(L)	50
Self weight bucket(kg)	2800
