• Model NO.：BY800
• Certification：CE
• Condition：New
• Dimension：2170X900X1650mm
• Warranty：1 Year
• Rated Load：800kgs
• Hydralic Piston Pump：Hydro-Gear
• Package：Retort Stand
• Engine：Honda,B&S,Yanmar
• Founction 1：Self Loading Shovel
• Founction 2：Self Unloading Dumper
• Founction 3：High Lift Device
• Transmission 0：Hydraulic Transmission

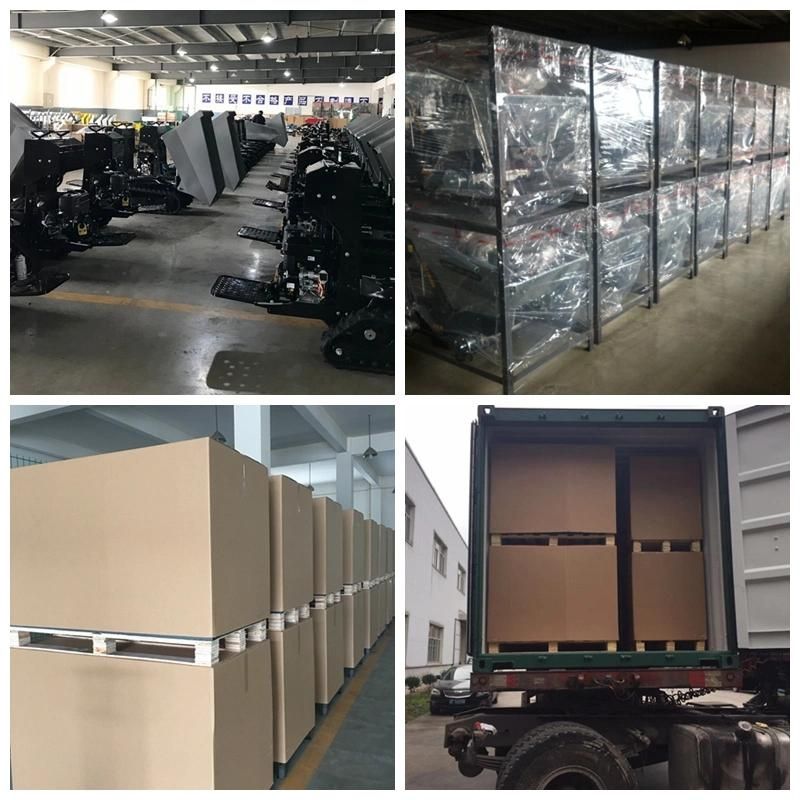

• Transport Package：Plywood Case or Cartoon
• Specification：CE
• Origin：Jiangsu, China
• HS Code：84289090
• Production Capacity：500unit,Month

Basic Info.

Model NO. BY800 Certification CE Condition New Dimension 2170X900X1650mm Warranty 1 Year Rated Load 800kgs Hydralic Piston Pump Hydro-Gear Package Retort Stand Engine Honda/B&S/Yanmar Founction 1 Self Loading Shovel Founction 2 Self Unloading Dumper Founction 3 High Lift Device Transmission 0 Hydraulic Transmission Transport Package Plywood Case or Cartoon Specification CE Origin Jiangsu, China HS Code 84289090 Production Capacity 500unit/Month

Product Description

BY800 13hp gasoline diesel engine powered muck truck farm tractors for sale

Specifications

*Maximum loading weight is 800kgs.
*Easy and comfortable operation due to the intuitive controls.

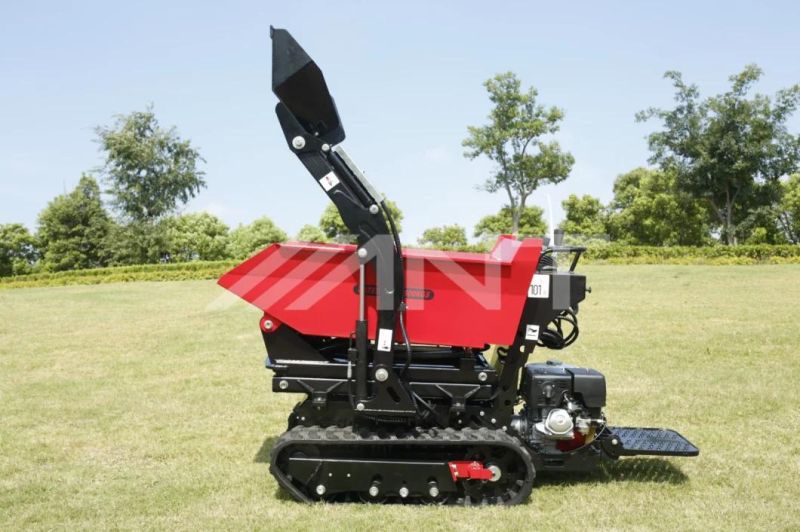

*Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.

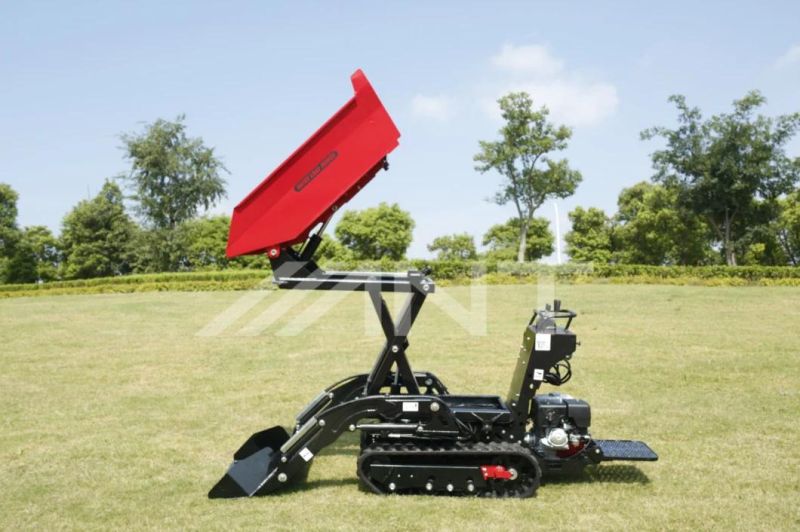

*Lifting height reaches to 1.4m by X-support.
*Easy climbing and stable crossing the obstacles.
*Spot turning, mini slipping.


Model	BY800
Engine	Honda GX390 13HP gasoline/B&S/Kama Diesel
Type	Hydra-static
Operative weight       kgs(lbs)	800 (1762)
Max travel speed       km/h(mph)	0-4.8(0-3.0)
Transmission
Hydraulic pump	2 x variable displ.
Flow                 Vmin(gpm)	2 x 32.4 (2 x 8.5)
Hydraulic motors	2 x orbital
Brake parking	Mechanical
Hydraulic system
Hydraulic pump	piston pump
Flow                 Vmin(gpm)	1 x 13.5 (1 x 3.5)
Hi-flow               Vmin(gpm)	1 x 22 (1 x 3.5)
Max pressure           bar(psi)	150 (2180)
Main valve	2-3 way
Cooled system	air-cooled
Skip tipping system	Hydraulic
Tracks
Standard track width     mm(in)	180 (7.1)
Track roller	3
Rocking rollers	Yes
Track tensioning	Yes
