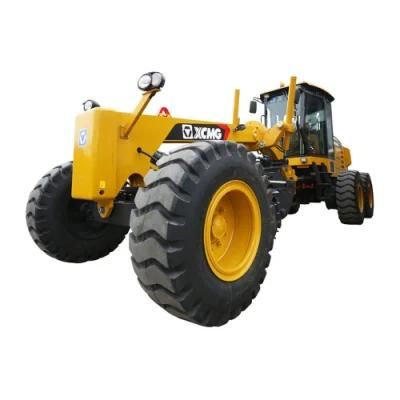

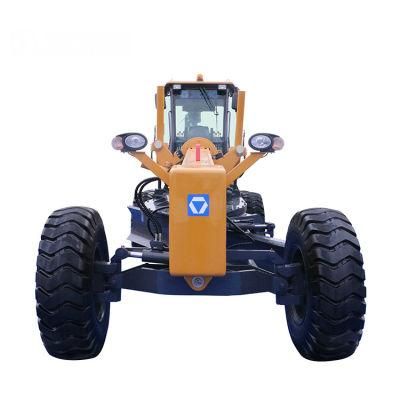

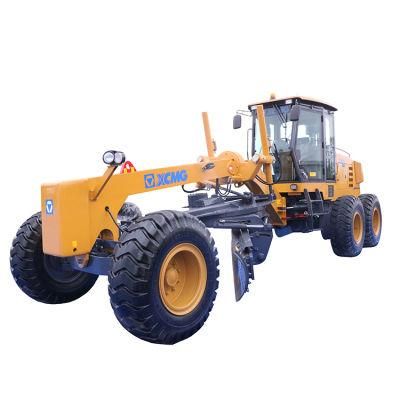

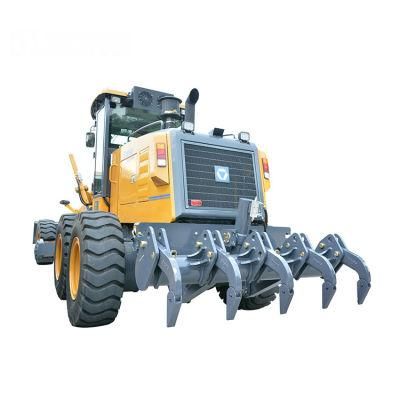

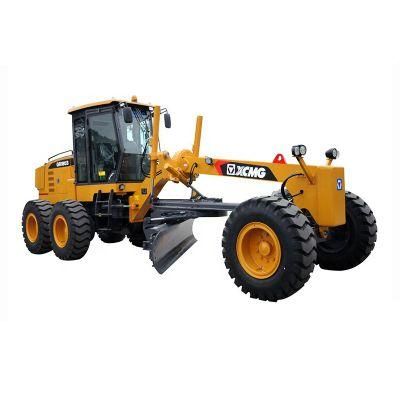

• Model NO.：GR1653 motor grader
• Transmission：Hydraulic - Mechanical
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• After-Sales Service Provided：Overseas Service
• Drive Type：Rear-Axle Drive
• Engine Model：Sc7h180.1g3
• Rated Power/Speed：128kw,2000rpm
• Dimension：8900X2625X3420mm
• Operating Weight：14500kg
• Max. Gradeability：25%
• Tire Inflation Pressure：260kpa
• Working Hydraulic Pressure：20MPa
• Transmission Pressure：1.3~1.8MPa
• Tractive Force：80kn
• Maximum Lift Above Ground：450mm
• Maximum Depth of Cutting：500mm
• Moldboard Width X Height：3965X610mm
• Blade Cutting Angle：28-70degree
• Transport Package：Naked in Container
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8429209000
• Production Capacity：5000PCS,Year

km/hReverse speed5,11,23 Tractive force(f=0.75)77KNMax. gradeability25%Tire inflation pressure260kPaWorking hydraulic pressure20 MPaTransmission pressure1.3~1.8MPaMax. steering angle of front wheels±48° Max. lean angle of front wheels±17° Max. oscillation angle of front axle±15° Max. oscillation angle of balance boxfront15°,reverse15° Frame articulation angle±27° Min. turning radius using articulation7.3mMax. lift height450mMax. cutting depth500mMax. blade position angle90° Blade cutting angle28°-70° Circle reversing rotation360° Moldboard width X height3965*610mm
