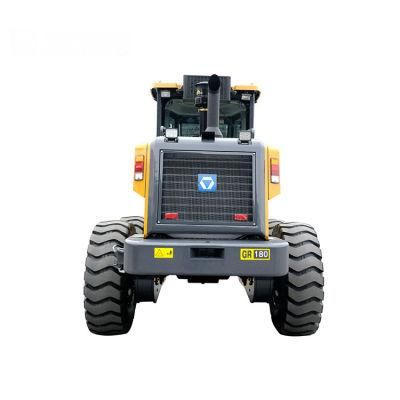

Gr1803 15400kg Road Graders Ripper Price China Motor Grader
Shanghai Super-Above Industry Holdings Co., Ltd.- Condition：New
- Application：Railway, Mine, Farmland, Highway
Base Info
- Model NO.：GR1803 motor grader
- Transmission：Hydraulic - Mechanical
- Walking Mode：Wheeled
- Type：Medium-sized Grader
- After-Sales Service Provided：Overseas Service
- Drive Type：Rear-Axle Drive
- Engine Model：Sc9dk200.1g3
- Rated Power/Speed：147kw,2000rpm
- Dimension：8900X2625X3420mm
- Operating Weight：15400kg
- Max. Gradeability：20%
- Tire Inflation Pressure：260kpa
- Working Hydraulic Pressure：16MPa
- Transmission Pressure：1.3~1.8MPa
- Tractive Force：80kn
- Maximum Lift Above Ground：450mm
- Maximum Depth of Cutting：500mm
- Moldboard Width X Height：3965X610mm
- Blade Cutting Angle：28-70degree
- Transport Package：Naked in Container
- Specification：CE
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8429209000
- Production Capacity：5000PCS,Year
Description
