• Model NO.：E6300F
• Drive Type：Internal Combustion Drive
• Bucket Capacity：1.0~1.5m³
• Size：Large-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Rated Output Power：170kw
• Marketing Type：New Product 2020
• Operation Weight：29300kg
• Engine Model：SD70b
• Swing Speed(R/Min)：10.7
• Max.Digging Height：9620mm
• Max. Digging Radius(mm)：10160mm
• Max.Digging Depth：6830mm
• Bucket Digging Force：193.5kn
• Fuel Tank Capacity(L)：470
• Emission Standard：China Phase III
• Transport Package：Nude
• Specification：10500*3190*3430mm
• Origin：Shandong, China
• HS Code：8429521200
• Production Capacity：1000

Basic Info.

Model NO. E6300F Drive Type Internal Combustion Drive Bucket Capacity 1.0~1.5m³ Size Large-Scale Certification CE, ISO9001: 2000 Condition New Rated Output Power 170kw Marketing Type New Product 2020 Operation Weight 29300kg Engine Model SD70b Swing Speed(R/Min) 10.7 Max.Digging Height 9620mm Max. Digging Radius(mm) 10160mm Max.Digging Depth 6830mm Bucket Digging Force 193.5kn Fuel Tank Capacity(L) 470 Emission Standard China Phase III Transport Package Nude Specification 10500*3190*3430mm Origin Shandong, China HS Code 8429521200 Production Capacity 1000

Product Description

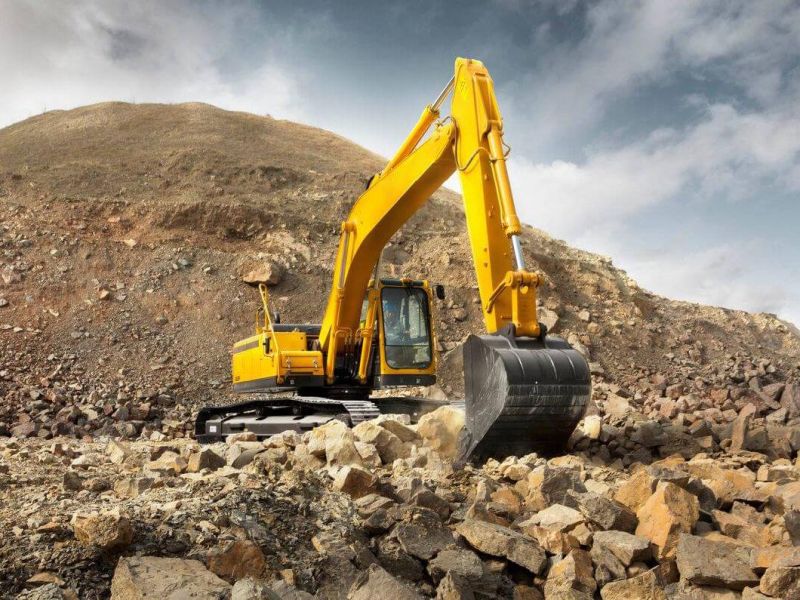

China Fanous Brand Medium Hydraulic Digger Crawler 30 ton Excavator E6300F
with Negative Flow Control
Product Overview

E6300F is a core product jointly developed by SD-G and Vo-lvo experts after fully investigating the Chinese market. The product has high-strengthened chassis, heavy working device, optimized matching power hydraulic system, suitable for a variety of harsh conditions.

The original imported low-speed and high torque D6 engine with supercharging and intercooling, can meet T3 emission. Strong power, economic and environmental protection, are more suitable for mine operation. It adopts three-stage air filtration, three-stage oil filtration and three-stage fuel filtration, with high reliability.

Double pump constant power positive flow hydraulic system, automatic sensing control, with regeneration, priority and other functions.

The reinforced lower frame with lengthened crawler and widened chassis has good trafficability and higher operation stability of the whole machine.

Equipped with EE-CU, VE-CU, IE-CU, keypad and GP-S electronic control system with special technology. It has functions of self-inspection, monitoring, emergency alarm, GP-S positioning and remote monitoring, with good man-machine interaction and convenient operation and maintenance.

The cab is spacious and has good sound insulation effect. It is equipped with three sunshade nets. Silicone oil rubber shock absorber is used to reduce vibration and impact.

It can be equipped with various working devices and accessories such as crushing hammer.

Parameter

Item	Specifications
Operating weight	29330kgs
Bucket capacity	1.4m³
Max.excavation force	193.5kN
Swing speed	0-10.1r/min
Traveling speed	0-5.1km/h
LxWxH	10420x3190x3030mm
Max.digging radius	10690mm
Max.digging depth	7320mm
Max.digging height	10040mm
Engine rated power	170kW
