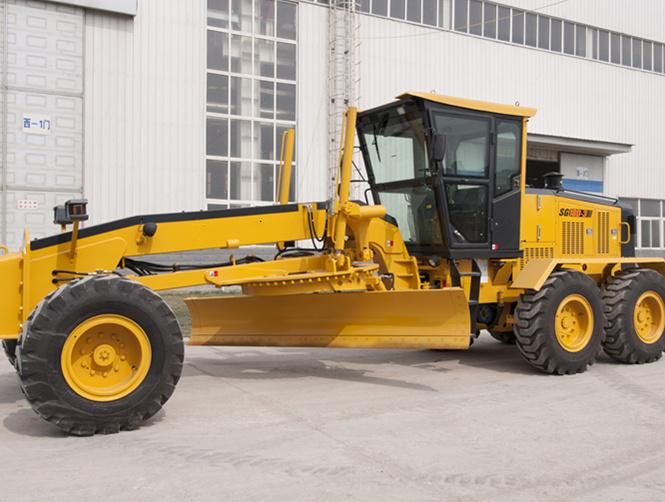

Motor Grader Sg24-3 220HP 18700kg China Road Graders Small Motor Grader Price
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Video Technical Support
- Warranty：1 Year
- Certification：CE
- Condition：New
- Application：Highway
- Transmission：Hydraulic
Base Info
- Model NO.：SG24-3
- Walking Mode：Wheeled
- Type：Medium-sized Grader
- Product Name：Motor Grader
- Engine Model：6btaa5.9-C180
- Net Power：140kw
- Transport Package：Nude Package
- Specification：9230x2600x3380 mm
- Trademark：Evangel
- Origin：China
- Production Capacity：100 Sets,Month
Description
Product name
SG24-3
Operating weight of machine (kg)
18700
Wheelbase (mm)
6260
Wheel tread (mm)
2155
Minimum ground clearance (mm)
430
Steering angle of front wheels (°)
±45
Articulated steering angle (°)
±25
Maximum traction force (kN)
79.3(f=0.75)
Turning radius (mm)
7,800 (Outer side of front wheel)
Maximum gradeability (°)
20
Width of shovel blade (mm)
3660
Height of shovel blade (mm)
635
Blade slewing angle (º)
360
Blade cutting angle (º)
37-83
Maximum digging depth of blade (mm)
500
Overall Size (mm)
8726*2600*3400
