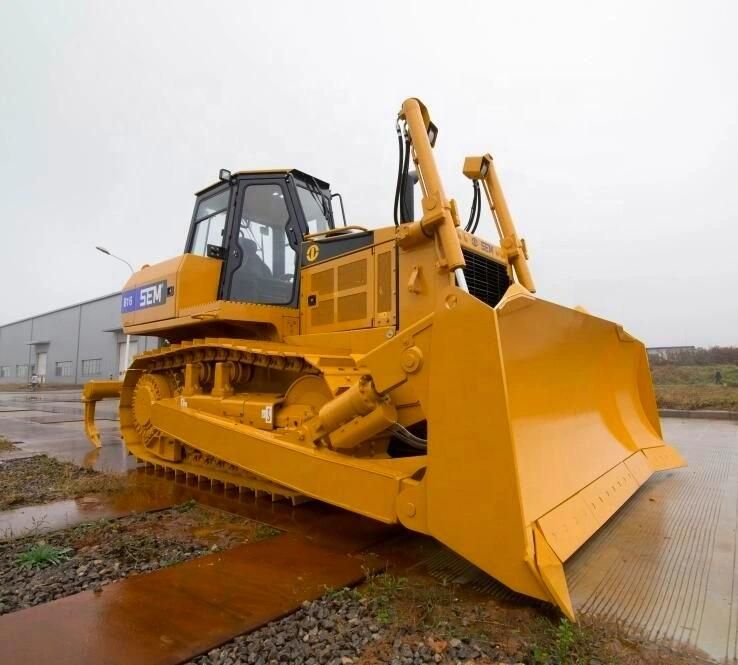

- Model NO.：Sem816D
- Engine Power：74~147kw
- Certification：CE, ISO9001: 2000
- Condition：New
- Color：Yellow
- Transport Package：Nude Package, Suitable for Shipment
- Trademark：shantui
- Origin：Shandong
- HS Code：8429510000
- Production Capacity：1000
| Model |
|---|
| Operating Weigh t | 17,230 kg |
| Ground Pressure | 68 kPa |
| Ground Clearance | 410 mm |
| Max.Slope | 30° |
| Engine |
|---|
| Model | Weichai WD10G178E25 |
| Rated Power | 131 kW / 175 hp |
| Working Tool |
|---|
| Blade Type | SU |
| Blade Capacity | 4.3 m³ ( S 3.4 m³ ) |
| Blade Width | 3 , 140 mm ( S 3,490mm ) |
| Blade height | 1,240mm ( S 1,165mm ) |
| Max. Blade Digging Depth | 430 mm |
| Max. Blade Lift Ground Clearance | 1,041 mm |
| Max.Output Rimpull | 280 kN |
| Maximum Digging Depth Of Ripper | 584 mm |
| Maximum Clearance Under Tip | 615 mm |
| Powertrain |
|---|
| Type | Electronic control, Dual-path, Hydrostatic Drive |
| Travel Speed- F/R | 0 - 10 km/hr (Infi nitely Variable Speed Control) |
| Steering & Brake | Hydrostatic Steering, Wet, Multiple-Disc Brakes |
| Minimum Streeing Radius | 3610 mm (Counter-rotated avaliable) |

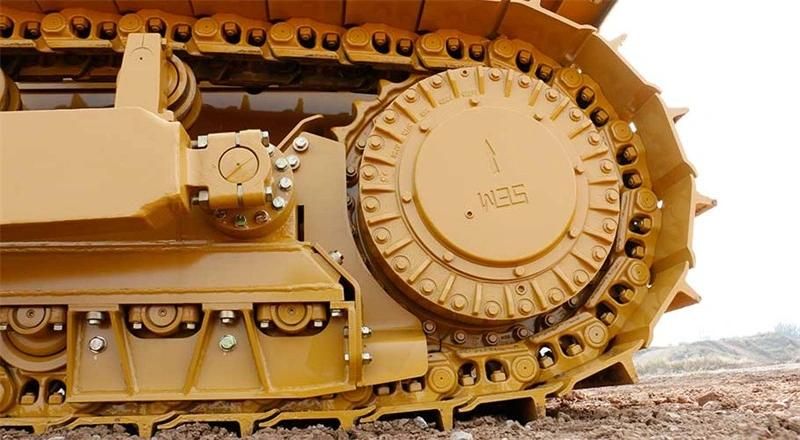

| Undercarrige |
|---|
| Track Shoe Width | 510 mm |
| Track Shoe Quantity | 37 piece |
| Length Of Track On Ground | 2,430 mm |
| Track Gauge | 1,880 mm |
| Track Roller Quantity | 6/Side |
| Carrier Roller Quantity | 2/Side |
| Hydraulic System |
|---|
| Type | Pilot Control |
| Implement Hydraulic System Pressure | 19 Mpa |
