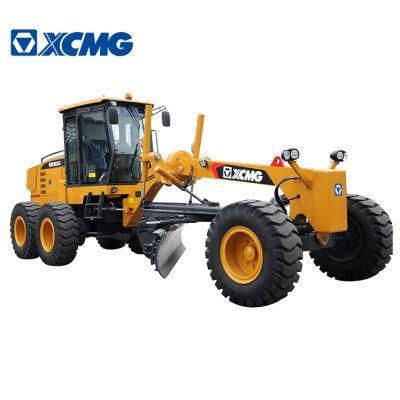

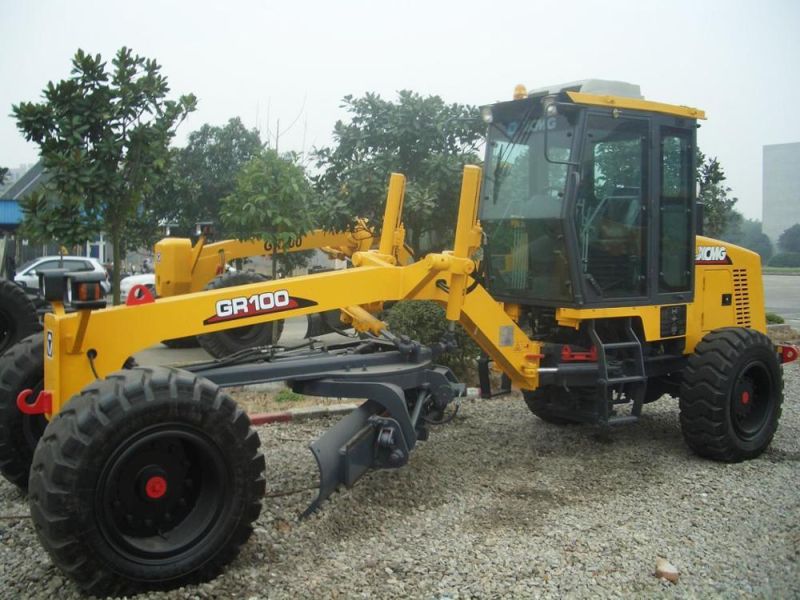

• Model NO.：GR1003
• Forward Speed：38km,H
• Rated Power/Speed：75kw,2200rpm
• Ground Clearance：550mm
• Maximum Gradeability：25%
• Engine Brand：Cummins
• Total Weight：7500kg
• Transport Package：Comply with Export Packaging Requirements
• Specification：7130*2375*3150mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

Product ParametersItemGR1003Basic parametersEngine modelWP4.1Rated power/speed75kW/2200rpmOverall dimension (standard)7130x2375x3150Total weight (standard)7500kgTire specification16/70-24/13.00-24Ground clearance (front axle)550mmSpace of front and rear axles5135 mmSpace of middle and rear wheels1900 mmPerformance
parametersForward velocity5,8,11,17,24,38km/hReverse speed5,11,24km/hTractive effort f=0.7539 kNMaximum gradeability25%Tire inflation pressure300kPaWorking system pressure16MPaTransmission pressure1.3-1.8MpaWorking parametersMaximum steering angle of front wheel±49°Maximum slant angle of front wheel±17°Maximum oscillating angle of front axle±15°Maximum oscillating angle of equilibrium box±16°Maximum steering angle of frame±27°Minimum turning radius6mScrape knifeMaximum lift height310mmMaximum cutting depth350mmMaximum tilt angle45°Cutting angle28°-70°Angle of revolution120°Length & chord height3048x450mmOil filling amountCoolant50LFuel tank280LEngine18LTransmission26LEquilibrium box/Drive alex28LHydraulic oil89LCase
