• Model NO.：SWMH350K
• Drive Type：Diesel +Electrical
• Bucket Capacity：>1.5m³
• Size：Large-Scale
• Certification：CE, ISO9001: 2000, ISO14001
• Condition：New
• Product Name：Material Handler
• Brand：Sinoway
• Engine Power：154kw
• Max.Working Radius：14 M
• Max. Lifting Moment：525 Kn.M
• Cabin Type：Hydraulic Elevation or Rigid
• Operating Weight：35 Ton
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：300 PCS Per Year

Basic Info.

Model NO. SWMH350K Drive Type Diesel +Electrical Bucket Capacity >1.5m³ Size Large-Scale Certification CE, ISO9001: 2000, ISO14001 Condition New Product Name Material Handler Brand Sinoway Engine Power 154kw Max.Working Radius 14 M Max. Lifting Moment 525 Kn.M Cabin Type Hydraulic Elevation or Rigid Operating Weight 35 Ton Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 300 PCS Per Year

Product Description

The main Feature
Dual engine ( Electric motor + Diesel engine) more environmental protection;
Electric operation has over-current and heat leakage protection device;
Utomatic identification of phase sequence to prevent reverse rotation of oil pump;
Hydraulic system power-off, oil self-locking protection device;
Multiple compound movements during operation to improve efficiency;
The hydraulic system is equipped with air-cooled radiator;
The gripper can rotate and change direction automatically 360 degrees;
When electric operation is carried out in the upper control room, there is a dual-purpose air conditioner for heating and cooling;

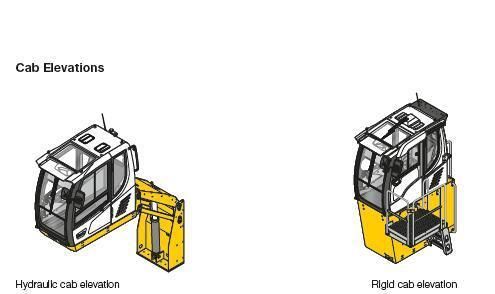

Hydraulic Cabin elevation and Rigid Cabin elevation.

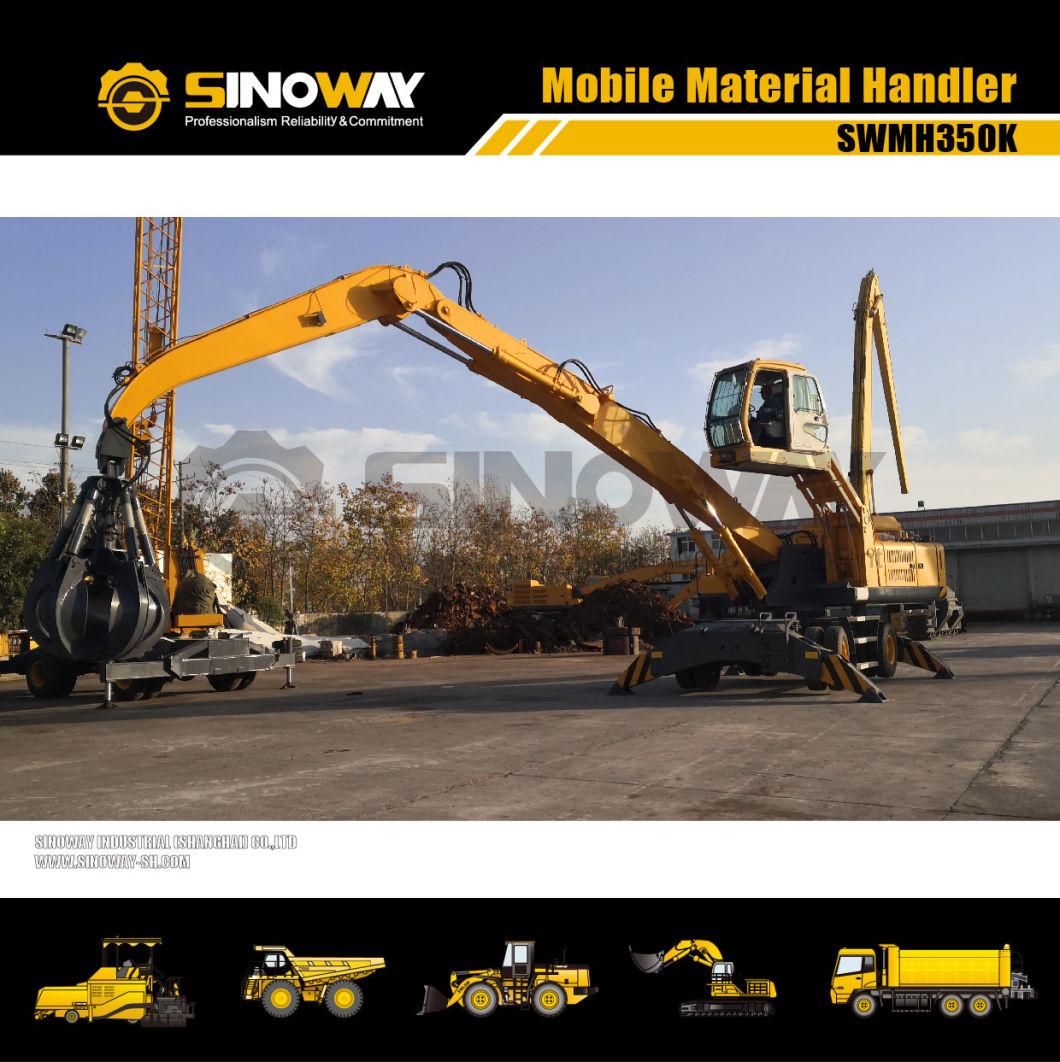

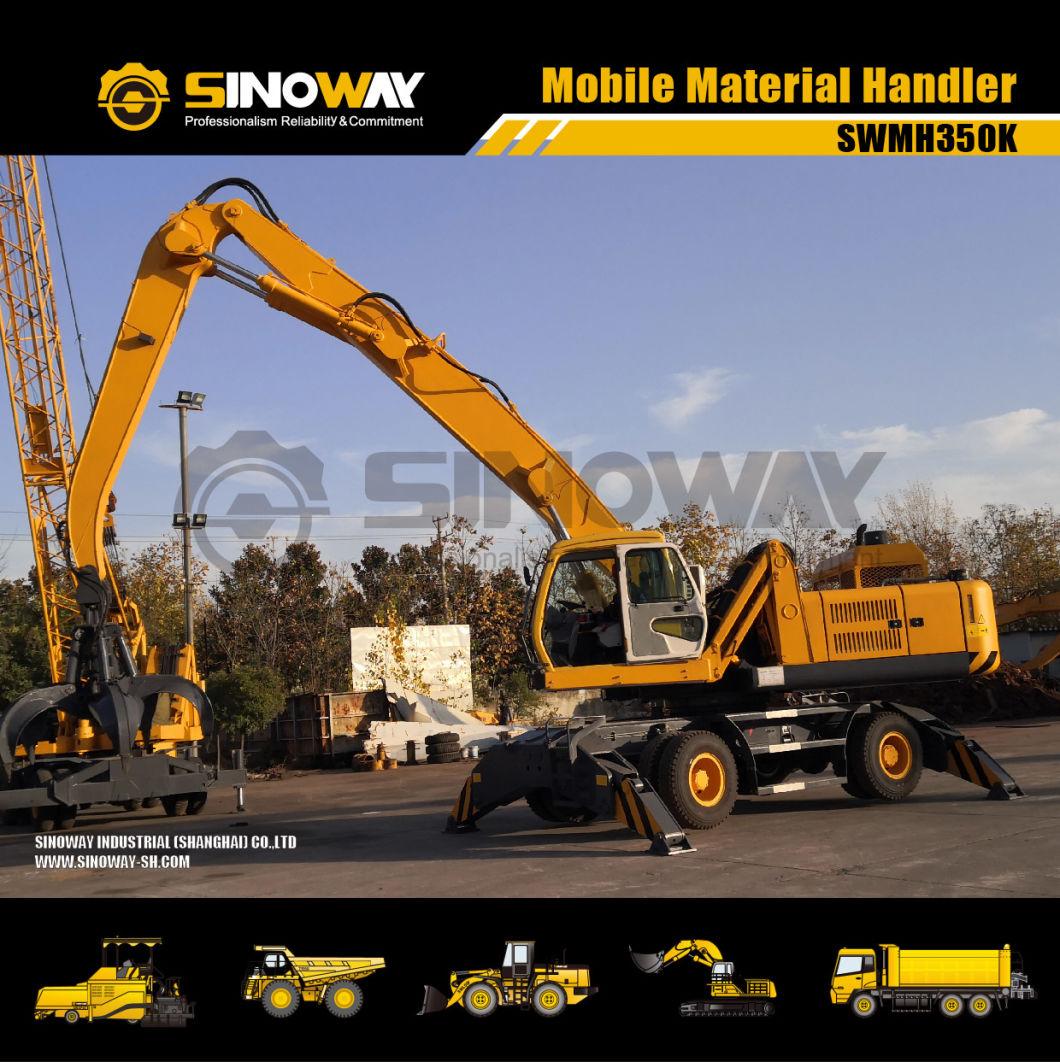

Product Show





Specifications

Mobile Material Handler SWMH350K
Power
Electrical motor	110KW
Rated speed	1480rpm
Max. swing speed(Electrical motor)	5r/min
Diesel engine	154KW
Rated speed	2200rpm
Max. swing speed(Diesel engine)	8r/min
Fuel tank capacity	440L
Main Technical Specification
Max. lifting capacity@Min. working radius	13000kg
Max. lifting capacity@Max. working radius	2000kg
Min. working radius	4000mm
Max. working radius	14000mm
Max. lifting moment	52.5t.m
Max. swing torque	107kN.m
Boom length	8000mm
Arm length	6000mm
Main luffing time(Max. speed)
-Fall boom(Electrical/Diesel)	≤17s/≤11s
-Rise boom(Electrical/Diesel)	≤21s/≤11s
Auxiliary luffing time(Max. speed)
-Fall boom(Electrical/Diesel)	≤20s/≤11s
-Rise boom(Electrical/Diesel)	≤9s/≤6s
Outrigger
-Full stretching(Electrical/Diesel)	≤16s/≤11s
-Full retracting(Electrical/Diesel)	≤12s/≤10s
Outrigger distance
-Lengthways	4500mm
-Transversal	4200mm
Travelling System
Max. travelling speed	15km/h
Min. turning radius	7.6m
Max. gradeability	18%
Min. ground clearance	250mm
Max. traction force	109kN
Approach angle	15.0°
Departure angle	15.0°
Braking distance(Speed:15km/h)	≤6.5m
Operating weight	35000kg(Including clam shell)
Dimension
Overall length	11000mm
Overall width	3500mm
Overall height	3190mm
Wheelbase	3200mm
Max.lifting height of cab	5900mm
Rear-end length/Slewing radius	3650mm
Counterweight clearance	1430mm
Upperstructure width	2940mm
