• Model NO.：SWMH250K
• Bucket Capacity：1.0~1.5m³
• Size：Medium-Sized
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Product Name：Material Handler
• Brand：Sinoway
• Working Radius：10.2 M
• Max. Lifting Height：11.3 M
• Engine Power：260HP
• Operating Weight：25ton
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：200 PCS Per Year

Basic Info.

Model NO. SWMH250K Bucket Capacity 1.0~1.5m³ Size Medium-Sized Certification ISO9001: 2000, ISO14001 Condition New Product Name Material Handler Brand Sinoway Working Radius 10.2 M Max. Lifting Height 11.3 M Engine Power 260HP Operating Weight 25ton Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 200 PCS Per Year

Product Description

Product Description

This product has a "double force" system for internal combustion engine and 380V electric interchange operation; "double force" system with explosion-proof machine and electric interchangeable operation; "double force" system with optional explosion-proof machine and electric interchange operation; The use of explosion-proof machine, electric interchangeable "double force" system; optional explosion-proof machine, fully enclosed electrical, fire protection and save 60% energy consumption compared to internal combustion engine operations; can quickly replace different hydraulic grabs.

The electric operation has over-current and heat-discharge protection devices;
Phase sequence automatic identification to prevent oil pump reversal device;
Hydraulic system power failure, oil self-locking protection device;
There are a number of complex movements during the operation to improve efficiency;
The hydraulic system is equipped with an air-cooled radiator;
The gripper can automatically turn and reversing 360 degrees;
When the electric control room is electrically operated, there is a dual-purpose air conditioning unit;

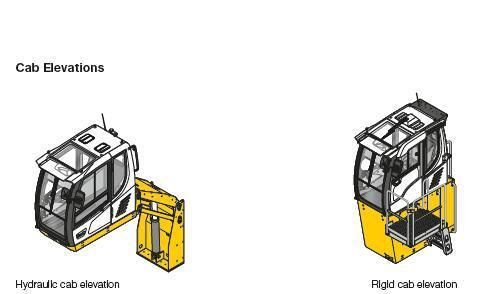

Elevated cab as optional.

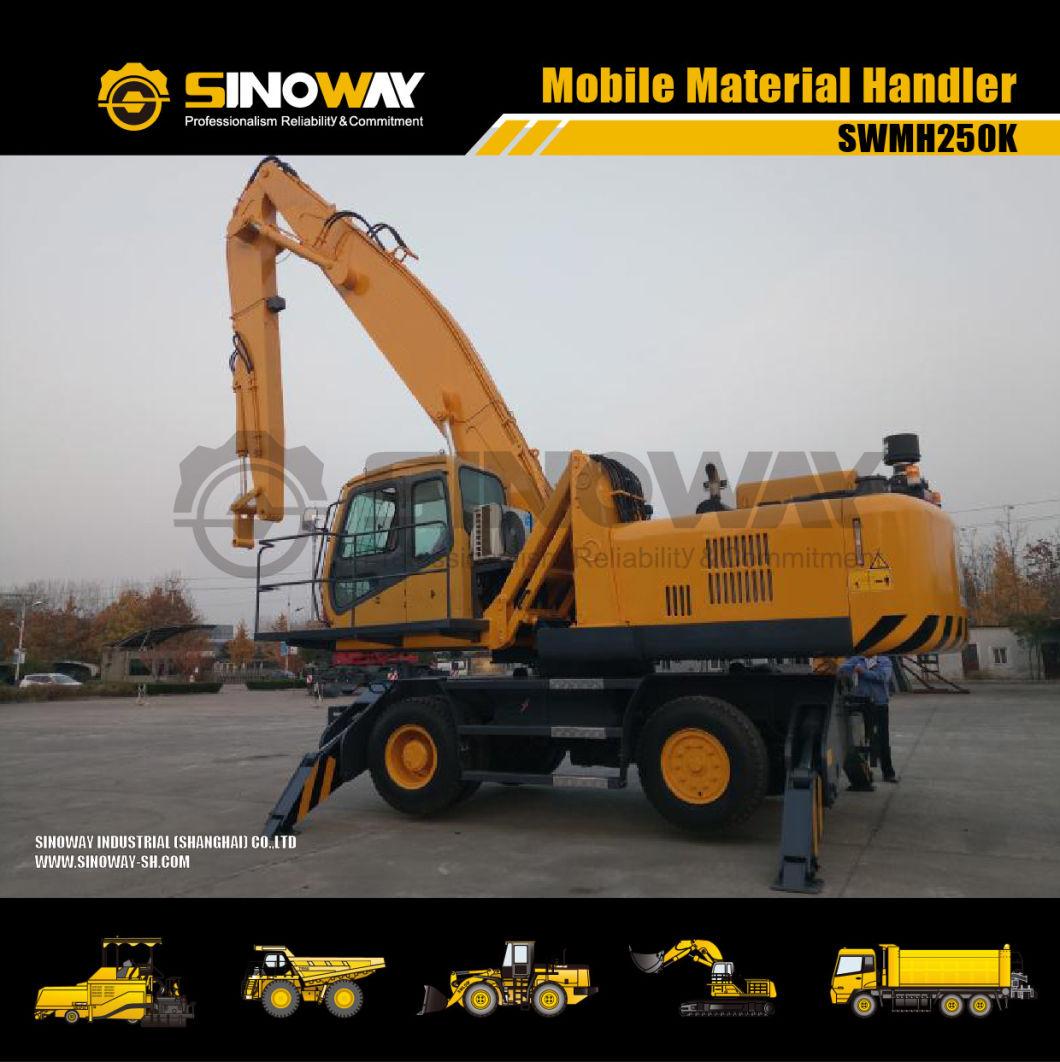

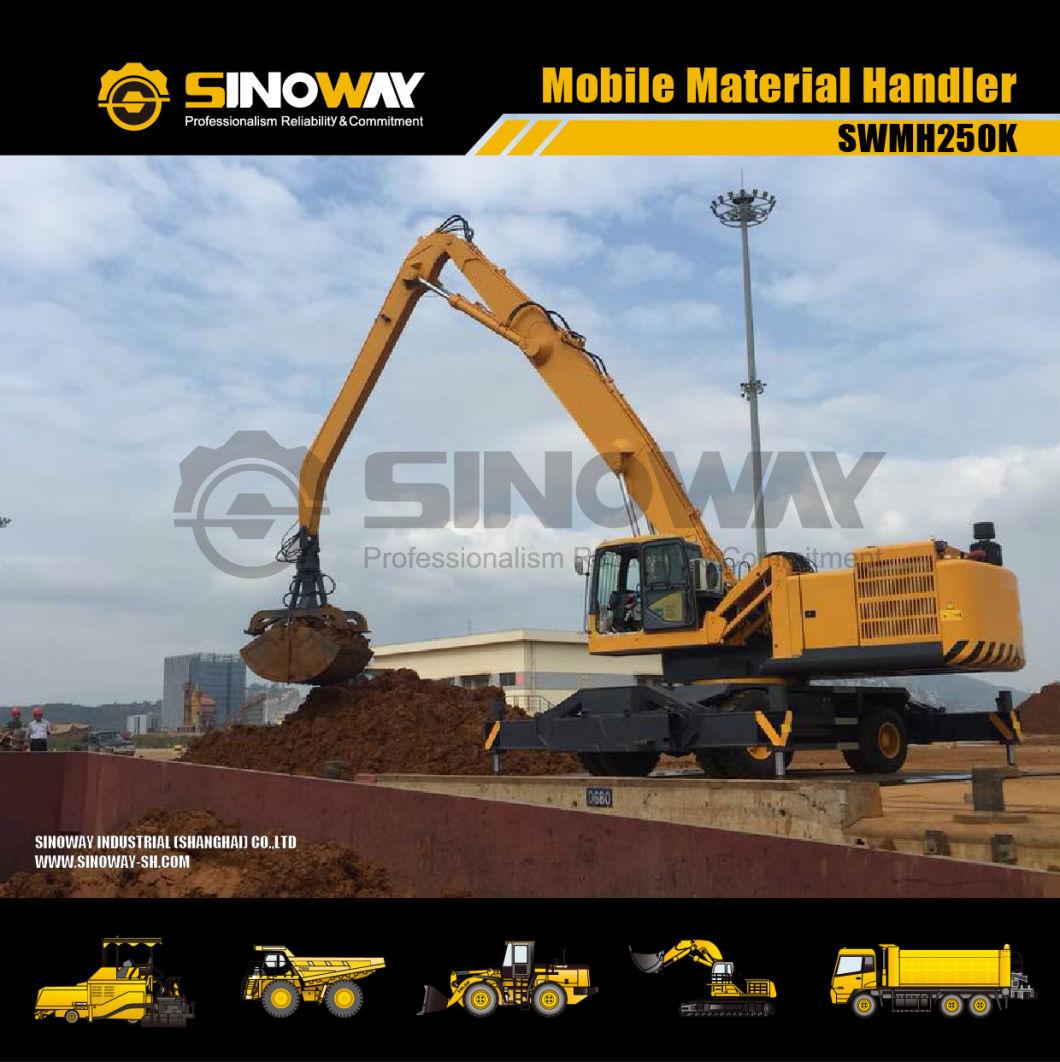

Product Show






Specifications

Mobile Material Handler SWMH250K
Power
Electrical motor	75KW
Rated speed	1200rpm
Max. swing speed(Electrical motor)	5r/min
Diesel engine	118KW
Rated speed	2200rpm
Max. swing speed(Diesel engine)	8r/min
Fuel tank capacity	320L
Main Technical Specification
Max. lifting capacity@Min. working radius	8500kg
Max. lifting capacity@Max. working radius	1000kg
Min. working radius	3000mm
Max. working radius	10200mm
Max. lifting moment	30.0t.m
Max. swing torque	75kN.m
Boom length	6200mm
Arm length	4000mm
Main luffing time(Max. speed)
-Fall boom(Electrical/Diesel)	≤17s/≤11s
-Rise boom(Electrical/Diesel)	≤21s/≤11s
Auxiliary luffing time(Max. speed)
-Fall boom(Electrical/Diesel)	≤20s/≤11s
-Rise boom(Electrical/Diesel)	≤9s/≤6s
Outrigger
-Full stretching(Electrical/Diesel)	≤16s/≤11s
-Full retracting(Electrical/Diesel)	≤12s/≤10s
Outrigger distance
-Lengthways	4500mm
-Transversal	4200mm
Travelling System
Max. travelling speed	15km/h
Min. turning radius	7.6m
Max. gradeability	10%
Min. ground clearance	250mm
Max. traction force	100kN
Approach angle	15.0°
Departure angle	15.0°
Braking distance(Speed:15km/h)	≤6.5m
Operating weight	25000kg(Including clam shell)

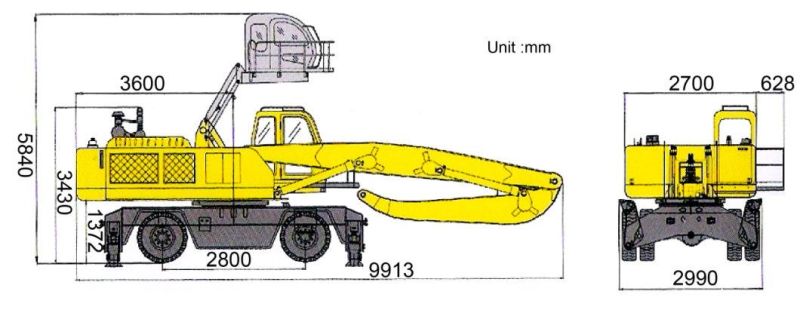

Dimension
Overall length	10800mm
Overall width	3000mm
Overall height	3430mm
Wheelbase	2800mm
Max.lifting height of cab	5840mm
Rear-end length/Slewing radius	3600mm
Counterweight clearance	1372mm
Upperstructure width	2700mm
