Wolf We18 1.8 Ton Mini Small Digger Excavator Hydraulic Wheel Excavator Mining Crawler Excavator
Qingdao Zongjin Engineering Machinery Co., Ltd.- Usage：Mining Excavator
- Bucket：Backhoe
Base Info
- Model NO.：WE18
- Transmission：Hydraulic Transmission
- Bucket Capacity：0.025
- Size：Small-Scale
- Certification：CE
- Condition：New
- Overral Weight：1800kg
- Lxwxh：3800X1050X2280mm
- Engine：Laidong Km385b 18.1kw
- Swing Speed：10-12 R,Min
- Travelling Tracking Force：15 Kn
- Bucket Digging Force：11.5 Kn
- Arm Digging Force：9.3kn
- Working Pressure：16 MPa
- Max. Digging Depth：2050mm
- Max Digging Height：3370mm
- Max. Dumping Height：2390mm
- Max. Digging Radius on Ground：3860mm
- Track Length：1630mm
- Track Width：230mm
- Ground Clearance：485mm
- Transport Package：4 Sets in 1*20gp
- Specification：3800x1050x2280mm
- Trademark：WOLF
- Origin：China
- HS Code：84295212
- Production Capacity：2000 Sets,Year
- Package size per unit product：380.00cm * 110.00cm * 260.00cm
- Gross weight per unit product：1800.000kg
Description
Operation parametersOperation Weight KG 1800 Bucket Capacity m3 0.06 Max. Digging Radius mm 3860 Max. Digging Depth mm 2050 Max. Digging Height mm 3370 Max. Dumping Height mm 2390 Max. Dozer Cutting mm 270 Max. Dozer Lifting mm 235 Boom Deflexion (Left/Right) ° 75/45 Tail Swing Radius mm 1125 Front Min. Swing Radius mm 1720

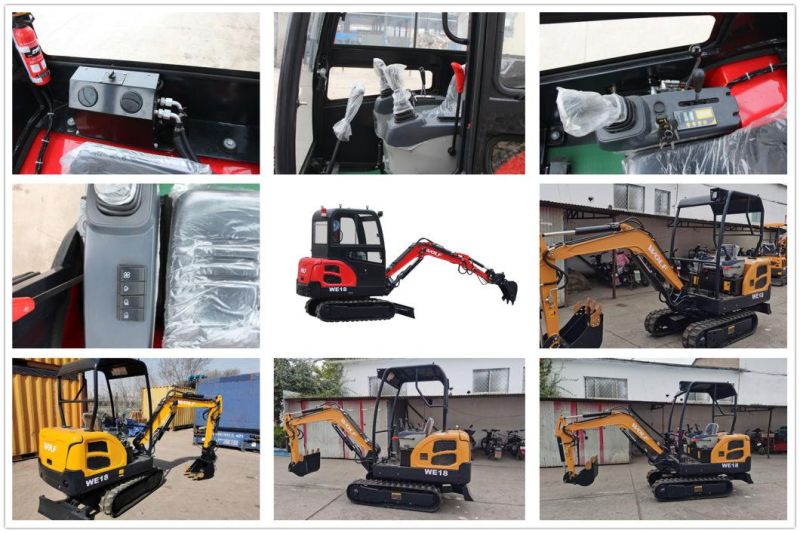

You can rely on every detail of this WE18 excavator.
Attachments

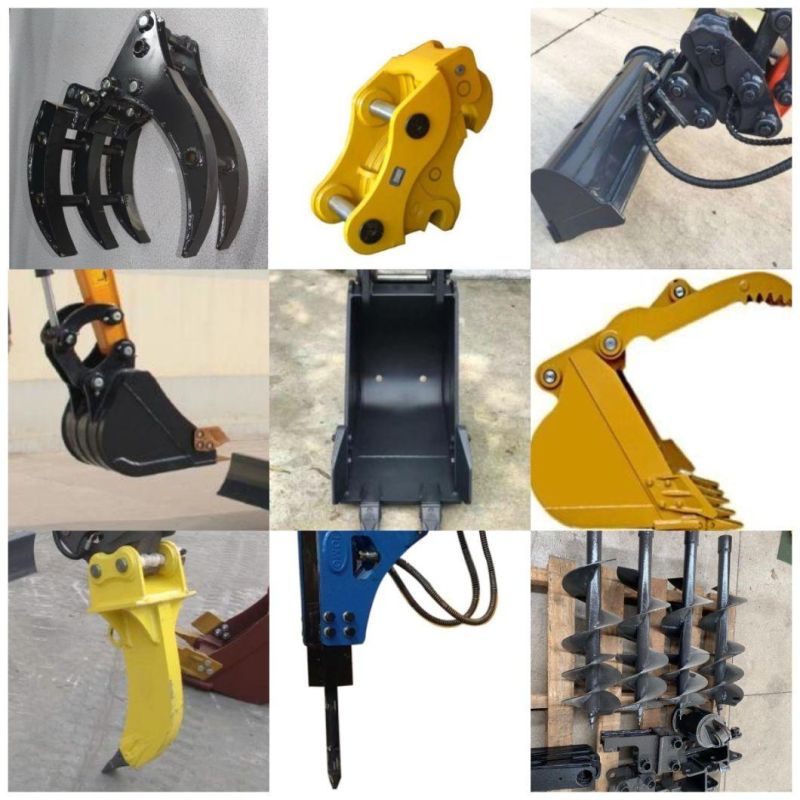

It also can be attached with different attachments to solve all kind of jobs, such as digging buckets in different sizes, tilting bucket, thumb bucket, hammer, breaker, auger, grapple etc.
Shipping

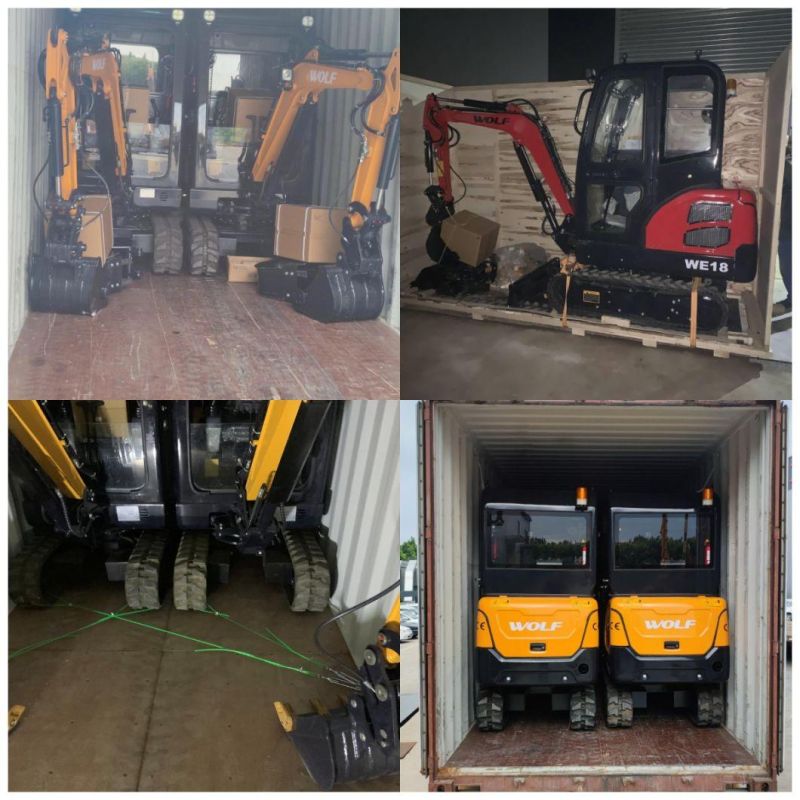

4 sets of WE18 could be loaded in 20" container and 8 sets of WE18 could be shipped in 40" container. If you only need 1 set, we could pack it in wood box and send by LCL.
Colors:

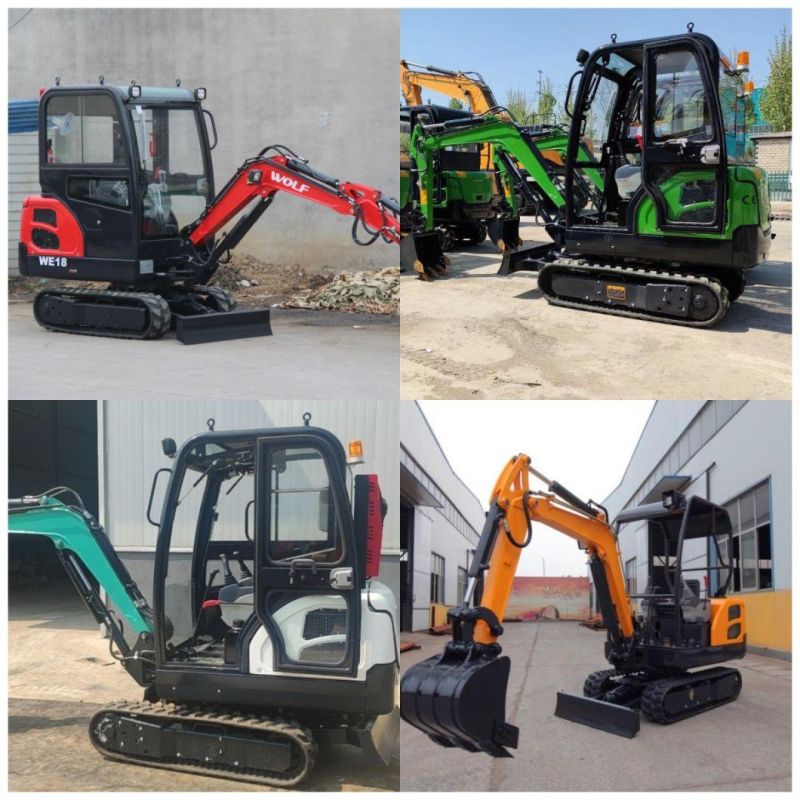

We can do many different colors such as yellow, red, white etc., and also we can customize your exclusive color based on your requirement.
All of the excavators are CE approved. Quality could be assured.
You can rely on every detail of this WE18 excavator.
- Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
- Famous brand hydraulic system parts ensure the stable quality.
- equipped with double fuel filter to guarantee fuel purity to protect engine
- Boom deflexion design meet narrow work condition, reinforced rubber track to protect road
- extend hydraulic line for various attachments.
- comfort seat make operator easy to work.
- Cabin with heater, extendable track are optional.
Attachments
It also can be attached with different attachments to solve all kind of jobs, such as digging buckets in different sizes, tilting bucket, thumb bucket, hammer, breaker, auger, grapple etc.
Shipping
4 sets of WE18 could be loaded in 20" container and 8 sets of WE18 could be shipped in 40" container. If you only need 1 set, we could pack it in wood box and send by LCL.
Colors:
We can do many different colors such as yellow, red, white etc., and also we can customize your exclusive color based on your requirement.
All of the excavators are CE approved. Quality could be assured.
