Hot Sell S186f 10HP Reversible Plate Compactor with Electric Start

Jiangsu Excalibur Power Machinery Co., Ltd.

After-sales Service：Provided
Warranty：One Year
Type：Rammer Compactor
Working Method：Vibration
Axle：Uniaxial Monowheel
Grinding Wheel Type：Light Grind

Base Info

Model NO.：SC-330B
Compaction Depth：50cm
Engine Type：Petrol Engine
Travel Speed：25cm,s
Centrifugal Force：50kn
Certification：CE, ISO 9001:2000
Condition：New
Product Name：Plate Compactor
Model：Sc330b
Vibration Frequency：3600V.P.M
Plate Size：880*650mm
Starting Mode：Manual Start
After Warranty Service：Spare Parts
After-Sales Service Provided：Free Spare Parts
Engine Model：Diesel Engine 186fa , 10HP
Net Weight：330kgs
Limited Grade Ablilty：20
Transport Package：Carton
Specification：1030*535*1010mm
Trademark：Excalibur
Origin：Jiangsu, China
HS Code：843061
Production Capacity：12000units, Year

Description

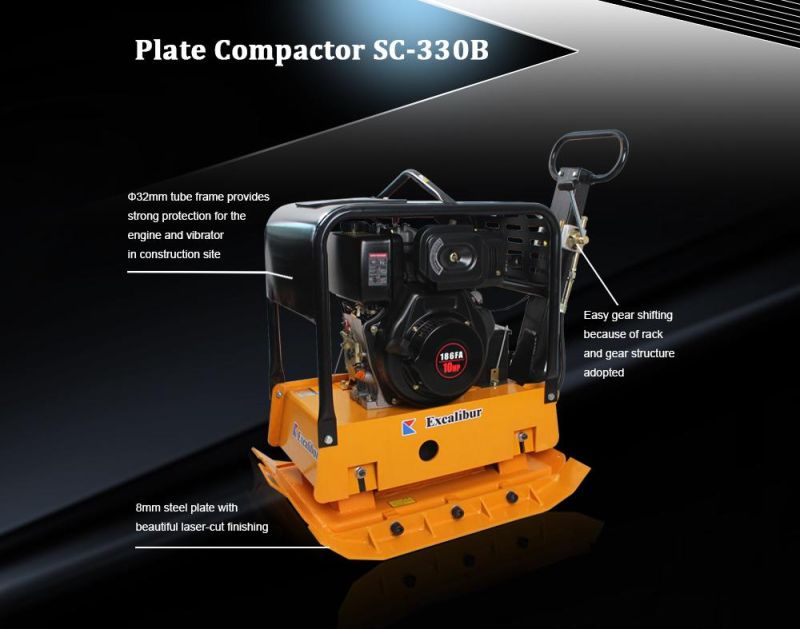

Hot Sell S186f 10HP Reversible Plate Compactor with Electric Start

Excalibur plate compactors are widely used in the compaction of soil, asphalt roads, sidewalks, bridges, and narrow fields.

Hot Sell S186f 10HP Reversible Plate Compactor with Electric Start

Hot Sell S186f 10HP Reversible Plate Compactor with Electric Start

SpecificationModelSC-330BPlate size L*W (mm)880*650Travel speed (m/min)20-25Limited grade ability 20Vibration frequency vpm (Hz)3600Centrifugal force (KN)50Engine model Diesel engine 186FA / 10HPStarting system Recoil starter/ Electric starterPacking size(mm)1030*535*1010Net weight (KG)330 Hot Sell S186f 10HP Reversible Plate Compactor with Electric Start

Hot Sell S186f 10HP Reversible Plate Compactor with Electric Start

Hot Sell S186f 10HP Reversible Plate Compactor with Electric Start

Hot Sell S186f 10HP Reversible Plate Compactor with Electric Start

Hot Sell S186f 10HP Reversible Plate Compactor with Electric Start

Hot Sell S186f 10HP Reversible Plate Compactor with Electric Start

Hot Sell S186f 10HP Reversible Plate Compactor with Electric Start

Hot Sell S186f 10HP Reversible Plate Compactor with Electric Start

here to send your inquiries!
