• Model NO.：SWEA220
• Usage：Special Excavator, Marine Excavator, Mining Excavator
• Bucket：Backhoe
• Transmission：Hydraulic Transmission
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.1~0.5m³
• Size：Medium-Sized
• Certification：ISO9001: 2000, ISO14001
• Condition：New
• Boom Reach：10m
• Engine：Cummins
• Pontoon Length：10.2m
• Chain Numbers：3
• Track Cleats：Alloy Steel
• Product Name：Floating Excavator
• Brand：Sinoway
• Transport Package：Naked
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：30 PCS,Month
• Package size per unit product：1120.00cm * 535.00cm * 390.00cm
• Gross weight per unit product：30000.000kg

Basic Info.

Model NO. SWEA220 Usage Special Excavator, Marine Excavator, Mining Excavator Bucket Backhoe Transmission Hydraulic Transmission Drive Type Internal Combustion Drive Bucket Capacity 0.1~0.5m³ Size Medium-Sized Certification ISO9001: 2000, ISO14001 Condition New Boom Reach 10m Engine Cummins Pontoon Length 10.2m Chain Numbers 3 Track Cleats Alloy Steel Product Name Floating Excavator Brand Sinoway Transport Package Naked Specification ISO Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 30 PCS/Month

Packaging & Delivery

Package size per unit product 1120.00cm * 535.00cm * 390.00cm Gross weight per unit product 30000.000kg

Product Description

SINOWAY Marsh Excavator

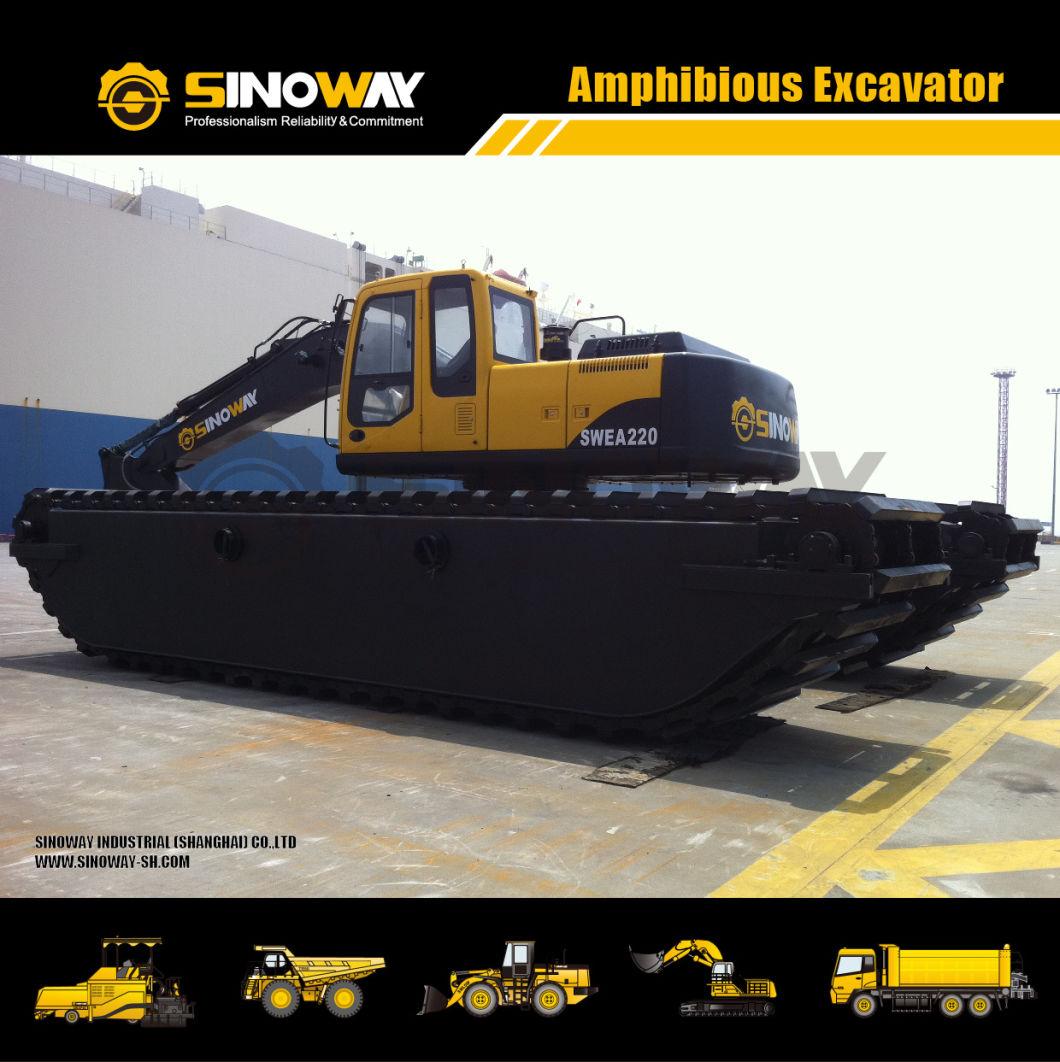

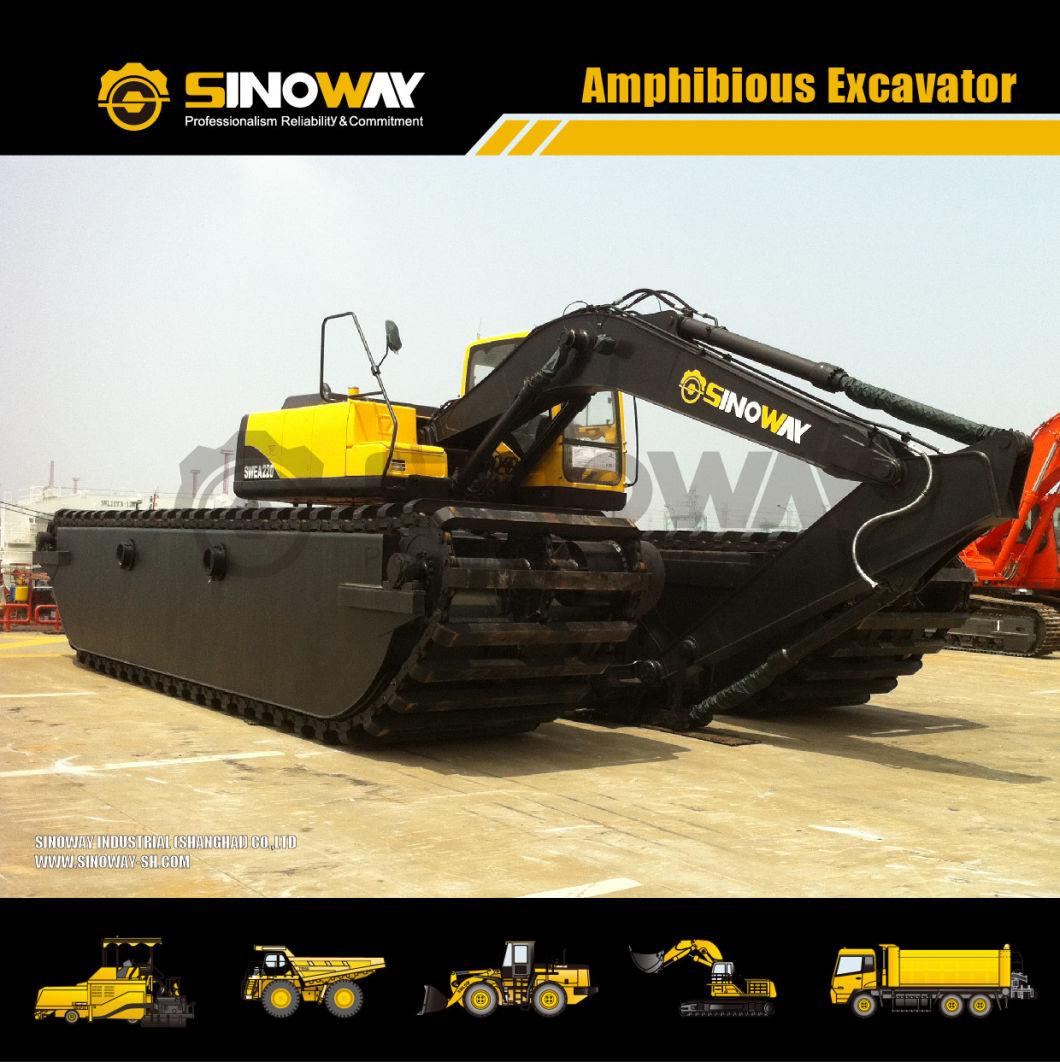

Machine Show


Machine Introduction


Specifications

Engine
Model	Isuzu/Cummins/Doosan
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	110KW
Main Technical Specification
Operating weight	30000Kg
Standard bucket capacity	0.9m3
Slewing speed	11rpm
Stick digging force	97.64KN
Bucket digging force	122.85KN
Main Features
Tracked pontoon structure
Big torque travelling device
Big circular arc structure
High capacity of fuel tank
Main Applications
River/Beach earth moving
Swamp works
Dredging applications
Delta works
Waterway deepening
Hydraulic System
Main pump	DOOSAN
Main valve	DOOSAN
Motor	DOOSAN
Hydraulic flow rate	2x210L/min
Hydraulic pressure	32MPa
Travelling System
Travelling speed	0~5.4km/h
Grade ability	65%
Ground pressure	0.014MPa
No. of chains	300%
Dimensions
Overall length	11200mm
Overall width	5350mm
Overall height	3900mm
Ground clearance	1192mm
Length of pontoon	8000mm
Width of pontoon	1500mm
Height of pontoon	1500mm
Optional
Wide bucket
Operating Scope
Stick length	2900mm
A: Max. cutting height	10577mm
B: Max. dumping height	7810mm
C: Max. digging depth	5704mm
D: Max. reach	10000mm
