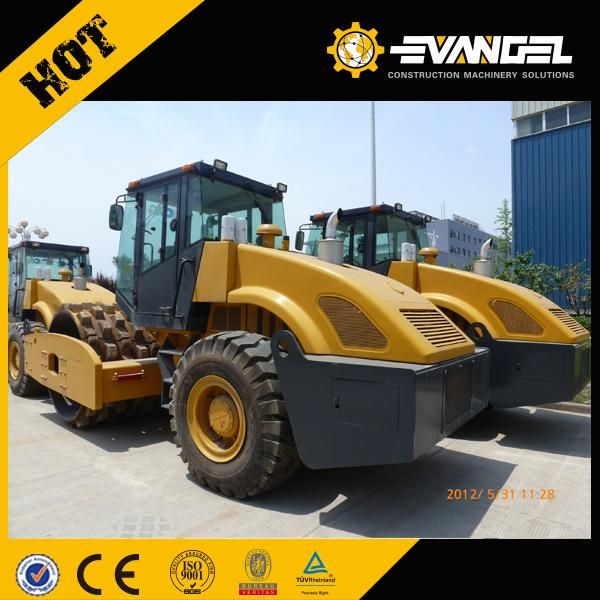

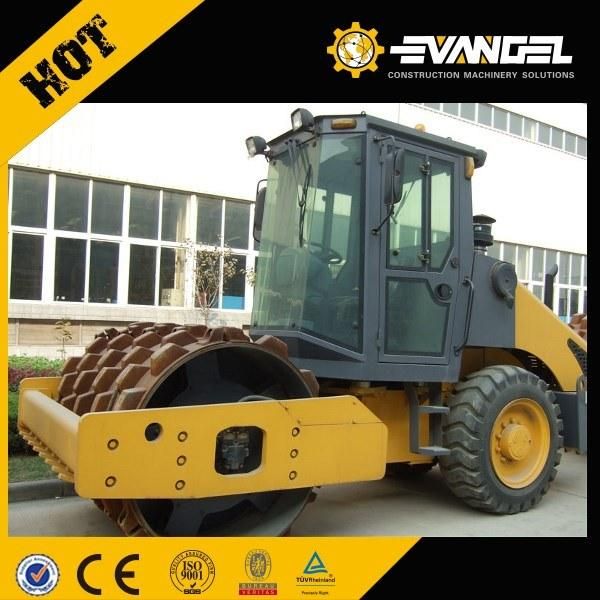

China Xs222je 22ton Vibratory Compactor Road Roller Machine

Evangel Industrial (Shanghai) Co., Ltd.
  • Type：Road Roller
  • Working Method：Vibration
  • Axle：Biaxial Dual-Drum
  • Grinding Wheel Type：Sheep Foot Roller
  • Compaction Depth：40cm
  • Engine Type：Diesel Engine

Base Info

  • Model NO.：XS222JE
  • Travel Speed：30cm,s
  • Centrifugal Force：30.5KN
  • Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Operating Weight：22000kg
  • Engine Model：Sc8d185g2b1
  • Max. Power：136kw @2000r,Min
  • Transport Package：Seaworthy Packing
  • Specification：CE,ISO
  • Origin：Jiangsu, China
  • HS Code：84294019
  • Production Capacity：100 PCS,Month

Description

ItemUnitXS222JEOperating weightkg22000Weight on front drumkg11000Static linear loadN/cm516Speed rangekm/hforward/reverseSpeed I 2.54/2.52Speed II 4.97/4.98Speed III 10.5/-Theoretical gradeability%30Min. external turning radiusmm6500Steering angle°±33Oscillating angle°±10Vibration frequency (high/low)Hz33/28Nominal amplitude (high/low)mm1.86/0.93Excitation force (high/low amplitude)kN374/290Drum diametermm1600Drum widthmm2130Engine model SC8D185G2B1Rated power @2000 r/minkW136Engine oil consumptiong/kW.h223Hydraulic oil tank capacityL170Fuel tank capacityL240
