China Small Motor Grader 135HP Gr135
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Grader
- Object：Gravel Road
- Moving Type：Fixed
- Mixing Method：Continuous Drum
Base Info
- Model NO.：GR135
- Automatic Grade：Semi-Automatic
- Product Capacity：40～400t,h
- Certification：ISO9001: 2000, CE
- Condition：New
- Weight：11200kg
- Dimension：8015X2380X3050mm
- Front and Rear Axle Clearance：5780 Mm
- Transport Package：Nude
- Specification：CE ISO9001
- Origin：Jiangsu
- Production Capacity：10000,Month
Description
Engine rated power/rev
100kW/2200rpm
Dimension
8015×2380×3050mm
Weight
11000kg
Distribution weight of front wheel
3190kg
Distribution weight of rear wheel
7810kg
Min. clearance
Front and rear axle clearance
5780 mm
Front and rear axle clearance
1541 mm
Max. steering angle of front wheel
±49°
Max. inclination angle of front wheel
Max. swing angle
Frame steering angle
Min. turning radius
6.6m
Traction
≥61.3kN
Gradeability
Forward speed
5,8,13,20,30,42 km/h
Reverse speed
5,13,30 km/h
Blade
Max. lifting height
410mm
Max. Digging Depth
515mm
Max.inclination angle
90°
Cutting angle
54°-90°
Rotating angle
360°
Blade length × arc height
3710×610mm
Driving wheel no.
Main technical parameter of optional working devices
GR135
Front bulldozing plate
Bulldozing width
2340mm
Digging depth
130mm

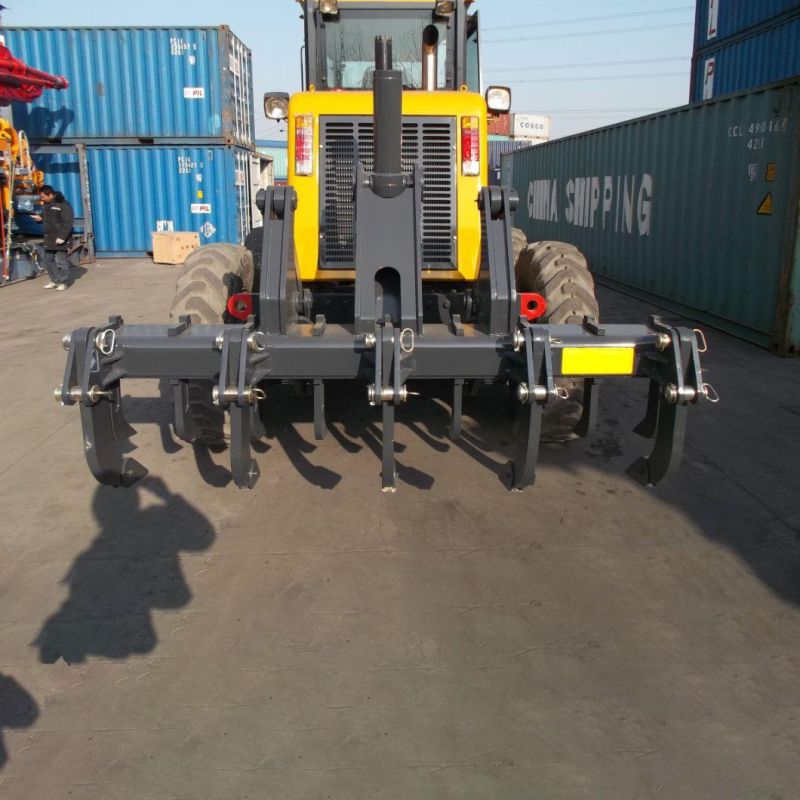

Rear scarifier
Gear no.
5
Digging depth
430mm
Scarifying width
2180mm
Gear no.
9
Digging depth
250mm
Scarifying width
2300mm
Medium harrow
Gear no.
11
Digging depth
280 mm
Scarifying width
1325 mm
