• Model NO.：GR1803
• Model No.：Gr180
• Engine：Cummins 6ctaa8.3 D6114
• Power：138kw
• Operating Weight：15400kg
• Maximum Lift Above Ground：450mm
• Maximum Depth of Cutting：500mm
• Overall Dimensions：8900*2625*3470mm
• Transport Package：Nude Package
• Specification：ISO, CE
• Origin：Jiangsu, China
• HS Code：8429209000
• Production Capacity：50units,Month

Basic Info.

Model NO. GR1803 Model No. Gr180 Engine Cummins 6ctaa8.3 D6114 Power 138kw Operating Weight 15400kg Maximum Lift Above Ground 450mm Maximum Depth of Cutting 500mm Overall Dimensions 8900*2625*3470mm Transport Package Nude Package Specification ISO, CE Origin Jiangsu, China HS Code 8429209000 Production Capacity 50units/Month

Product Description

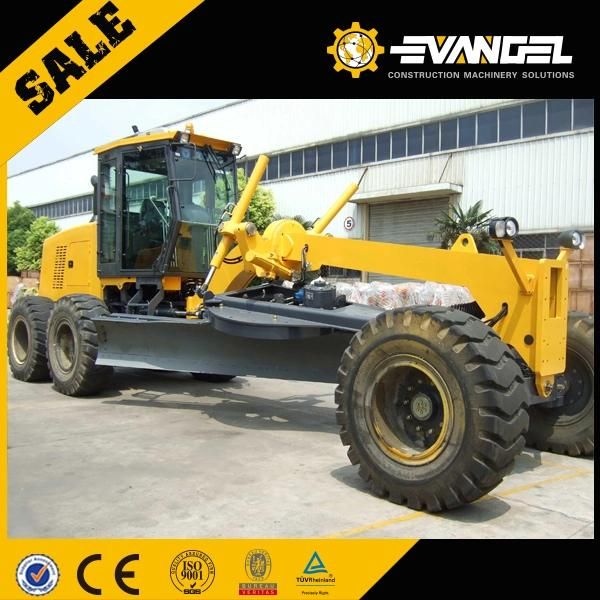

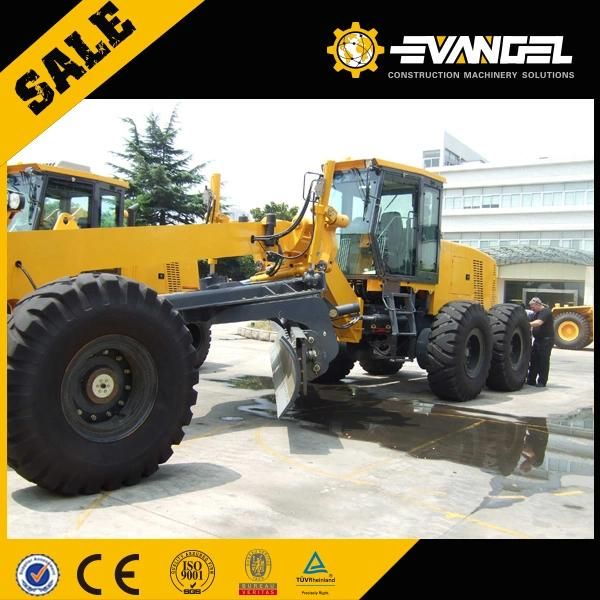

Brand New Road Grader 180HP Small Motor Grader Gr1803 for Sale

CUMMINS electronical injection diesel engine (Tier 3) features low noise and emission.
ZF electro-hydraulic control power shift gearbox guarantees flexible and convenient operation.
With NO-SPIN self -locking differential, the three-way drive axle provides reliable and stable drive.
Double-circuit travel braking hydraulic system is safe and reliable.
With ROPS&FOPS, the cab is equipped with the electric washing window equipment and clear fog equipment. The air-conditioning can exchange the air automatically.
The front wheel hydraulic auxiliary drive system is interlocked with the rear wheel gear. The machine can get 6-wheel, 4-wheel and 2-wheel drive.
The machine passes the CE certification, and meets the requirement of Europe safety and environmental care.
Optional devices: Front bulldozing plate, front harrow, rear scarifier, rotating ball disk and automatic leveling system.

Parameter

Basic specification


Engine model	6CTAA8.3 D6114
Rated power/speed	138kW/2200  140kW/2300rpm
Dimension(LxWxH)	8900×2625×3470mm
Operating weight(Standard)	15400kg
Travelling speed ,forward	5811192338 km/h
Travelling speed ,reverse	51123 km/h
Tractive force(f=0.75)	79KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
Frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°_70°
Circle reversing rotation	360°
Moldboard width X height	3965×610mm
