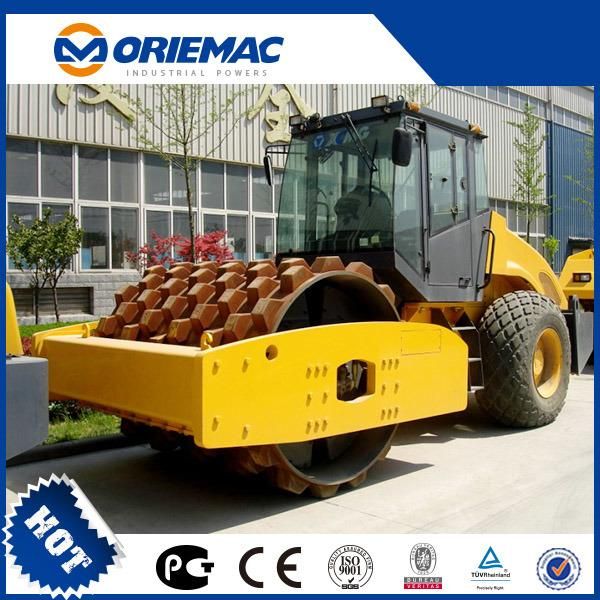

18 Tons Sheep Feet Vibratory Road Roller Xs182j

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Type：Road Roller
Working Method：Vibration
Axle：Biaxial Dual-Drum
Grinding Wheel Type：Sheep Foot Roller
Compaction Depth：40cm
Engine Type：Diesel Engine

Base Info

Model NO.：XS182J
Travel Speed：40cm,s
Centrifugal Force：40KN
Certification：EPA, CS
Condition：New
Operation Weight：18000kg
Transport Package：40hq or RO,RO or Bulk Cargo
Trademark：ORIEMAC
Origin：Jiangsu, China.
Production Capacity：200 Units,Month

Description

TypeUnitXS182Operating weightkg18000Load on front drumkg11500Load on rear wheelskg6500Drum widthmm2130Static linear loadN/cm529Vibration frequency(Low/High)Hz28/33Nominal amplitude(High/Low)mm1.86/0.93Excitation force(High/Low)KN340/240Travel speedkm/h0~10Steering angle°±33Swing angle°±10Theoretical gradeability%50Min. turning radiusmm6500Engine model Cummins B5.9Engine powerkw132Rated engine speedr/min2200Engine oil consumptiong/kW.h232Hydraulic oil tank capacityL240Fuel tank capacityL240
18 Tons Sheep Feet Vibratory Road Roller Xs182j

18 Tons Sheep Feet Vibratory Road Roller Xs182j

18 Tons Sheep Feet Vibratory Road Roller Xs182j

Category

Concrete Machinery

Engineering & Construction Machinery Parts

Mortar Spray Machine

Other Engineering & Construction Machinery

Paving Machinery

Pipe Jacking Machine

Rendering Machine

Recommended

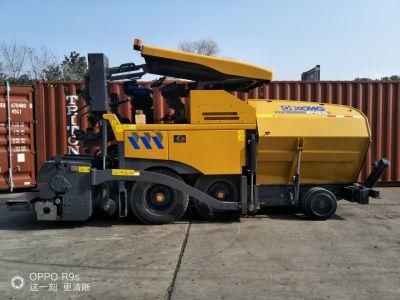

4.5m Asphalt Road Paver Machine RP453L Mini Wheel Paver
ItemsUnitParametersBasic paving widthm2Max. paving widthm4.5Max. paving thicknessmm150Paving speedm/min0~13Travel speedkm/h0~13Theoretical Productivityt/h240Hopper Capacityt12Gradeability%20Pavement evennessmm/3m3Transverse levelling accuracy%±0.03Centre crown ratio%0~+3Engine model4JR3G1Engi
Road Construction Machine Gr215 215HP Mini Motor Grader
BiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°_70°Circle reversing rotation360°Moldboard width X height4270×610mm
Wheel Loader Lw188 1.8ton Wheel Loader for Sale
Rated load1.8tDumping distance850 mmLifting time≤5sTotal time of three devices≤10sDigging force50kNArticulated angle35±1Wheeelbase2200 mmTread1490 mmSpeed6/6km/h24/24km/hTypeNatural intakeRated power60kWRated rotary speed2400r/minDimension: (Length×Width×Height)5520×19
Most Popular Changlin 5 Ton Diesel Loader Zl50g Mini Loader for Sale
OverallDimension1Length(withbucketonground)C6121engine8365(mm)8215mm2Width(tooutsideofwheels)2800(mm)8215mm3Bucketwidth2946(mm)4Height(Tothetopofthecab)3450(mm)5Wheelbase3350(mm)6Tread2200(mm)7Min.groundclearance450(mm)MainTechnicalSpecification1Ratedload5000(Kg)2Operatingweight16300KG3Ratedbucketca
Shantui New Bulldozer SD23 Small Bulldozer Price
ITEMUNITSD23L×W×H (Ripper not included)mm5874×3725×3360Operating weight (Ripper not included)t24.6Engine-imported engine from AmericaNT855-C280S10Rated powerkW/rpm169/2000Gradeability°30Blade type-Straight tilt bladeU-bladeAngle bladeBlade widthmmStraight tilt blade 3725&

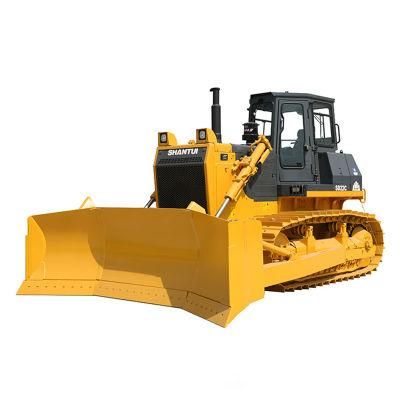

Shantui Small Bulldozer SD22c Bulldozer Spare Parts
ITEMUNITSD22CL×W×H (Ripper not included)mm5750×4200×3395Operating weight (Ripper not included)t24.6Engine-imported engineNT855-C280S10Rated powerkW/rpm162/1800Gradeability°30Blade type-Coal bladeBlade widthmm4200×1350Dozing capacitym39Ma× drop below ground of

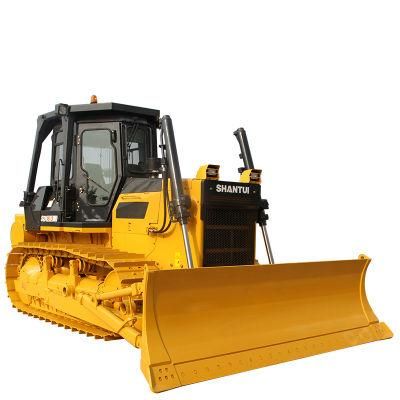

Shantui Small Bulldozer SD16f Bulldozer Tractor
ITEMUNITSD16FL×W×H (Ripper not included)mm5345×3388×3032Operating weight (Ripper not included)t17.5Engine-Shangchai SC11CB184G2B1/ Weichai WD10G178E25Rated powerkW/rpm120/1850Gradeability°30Blade type-Straight tilt blade U blade Angle bladeBlade widthmmStraight tilt blade

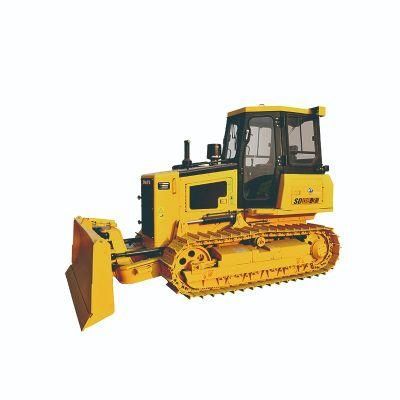

Shantui Bulldozer SD08-3 Mini Bulldozer
