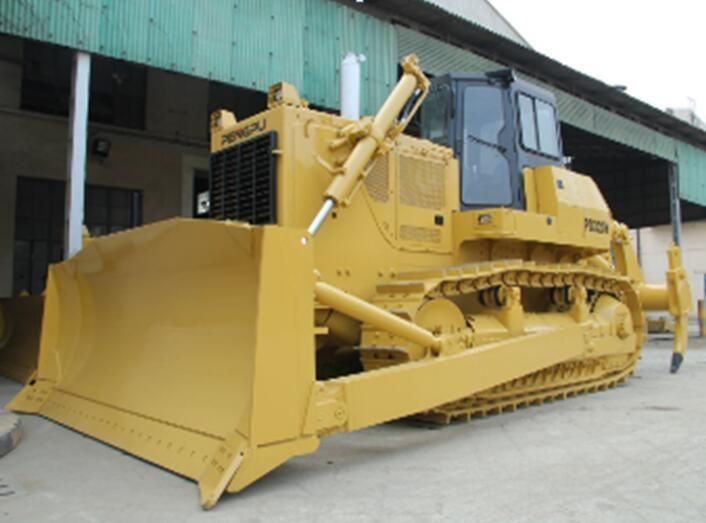

Shanghai Pengpu 320HP Dozer Price Pd320y-1 Bulldozer
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：147~515kw
- Certification：ISO9001: 2000
Base Info
- Model NO.：PD320Y-I
- Condition：New
- Color：Yellow
- Transport Package：Nude Package
- Specification：ISO, CE
- Trademark：pengpu
- Origin：Shanhai, China (Mainland)
- Production Capacity：1500 Units, Year
Description
Engine
Model
Cummins NT855-C360
Type
Four-stroke, turbocharged, aftercooled
Flywheel power, kW
239
Rated speed, r/min
2000
Number of cylinders - bore x stroke, mm
6-ø139.7 x 152.4
Starting method
Electric starting 24V, 11kW
Battery
24V (12V x 2), 195 AH
Air cleaner
Dry horizontal type with precleaner
Transmission system
Torque converter
3-element, single-stage, single-phase
Transmission
Planetary gear, hydraulic actuated, multiple-disc clutch, forced lubrication by gear pump, 3 forward and 3 reverse speeds
Bevel gear
Helical bevel gear, splash lubricated
Steering clutch
Wet, multiple-disc clutch, spring loaded, hydraulically released
Steering brake
Wet, band brake, operated with hydraulic booster
Final drive
Spur gear, double reduction, splash lubricated
Travel speed, km/h
Forward:
? 1st
3.6
? 2nd
6.6
? 3rd
11.5
Reverse:
? 1st
4.4
? 2nd
7.8
? 3rd
13.5
