• Model NO.：300*52.5*86N

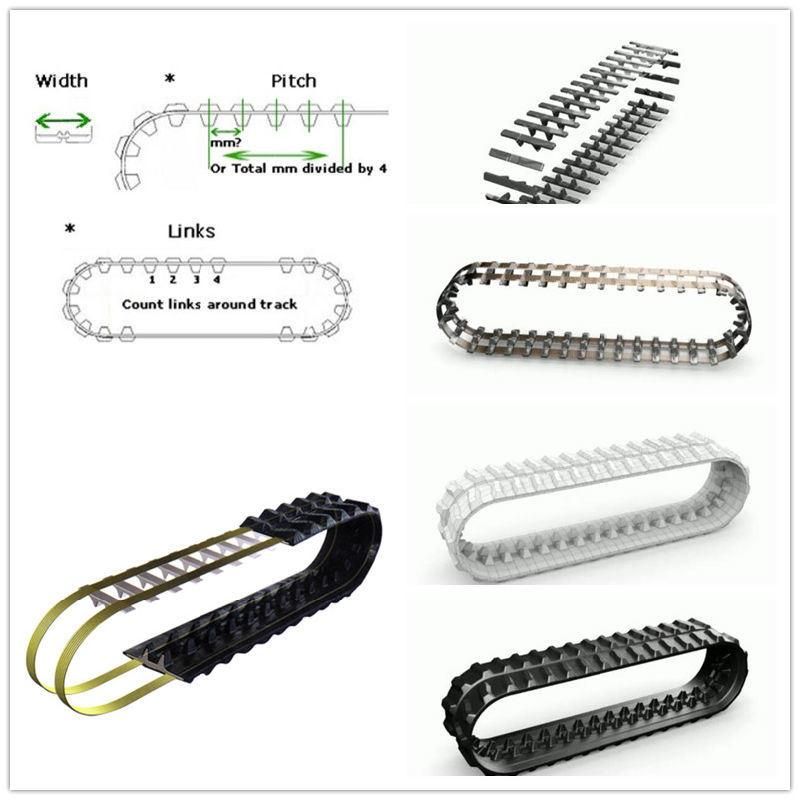

• Width：300mm
• Pitch：52.5mm
• Link：86
• Color：Black
• Material：Rubber and Steel
• Delivery Time：7-10 Days
• Exported Market：Global
• Transport Package：Wooden Pallet
• Specification：300*52.5*86
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：1000 Pieces Per Month

Basic Info.

Model NO. 300*52.5*86N Width 300mm Pitch 52.5mm Link 86 Color Black Material Rubber and Steel Delivery Time 7-10 Days Exported Market Global Transport Package Wooden Pallet Specification 300*52.5*86 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 1000 Pieces Per Month

Product Description

Rubber track 300*52.5*86N for HITACHI AIRMANN DOOSAN HYUNDAI KOMATSU NAGANO SCHAEFF :


Applicable machines	Excavators
Material	rubber and steel
Specification	300*52.5*86N
Installation position	Installed on the excavators

The characteristics of rubber tracks

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft

ground than steel tracks

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than

steel tracks

3. Rubber tracks permit machines to travel at a higher speed than steel tracks

4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of

machine and decreasing operator's fatigue

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30

kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled

vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles

equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks :

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm

when the machine is lifted. Readjust when the tension decreases. (Be careful because the

rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner

circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame,

an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can

cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed

We also have other kinds of and sizes of rubber tracks, if you have interest in it, do not hesitate

to send me a message and I will be very glad to be at your service.

Looking forward to receiving your enquiry.

Adaptation Models:

Model	Original Size	PUYI Size
AX30U | AIRMANN	300X52,5X86	300X52,5X86N
AX30U.4 | AIRMANN	300X52,5X86	300X52,5X86N
AX30UR.4 | AIRMANN	300X52,5X86	300X52,5X86N
AX35U | AIRMANN	300X52,5X86	300X52,5X86N
AX36U | AIRMANN	300X52,5X86	300X52,5X86N
AX36UCGL | AIRMANN	300X52,5X86	300X52,5X86N
MX352 | DITCH WITCH	300X52,5X86	300X52,5X86N
DX35 | DOOSAN	300X52,5X86	300X52,5X86N
DX35Z | DOOSAN	300X52,5X86	300X52,5X86N
EX35U | HITACHI	300X52,5X86	300X52,5X86N
EX36U | HITACHI	300X52,5X86	300X52,5X86N
EX40UR.3 | HITACHI	300X52,5X86	300X52,5X86N
UE35 | HITACHI	300X52,5X86	300X52,5X86N
ZX30U | HITACHI	300X52,5X86	300X52,5X86N
ZX30U.2 | HITACHI	300X52,5X86	300X52,5X86N
ZX30U.3F | HITACHI	300X52,5X86	300X52,5X86N
ZX33 | HITACHI	300X52,5X86	300X52,5X86N
ZX33U | HITACHI	300X52,5X86	300X52,5X86N
ZX33U.2 | HITACHI	300X52,5X86	300X52,5X86N
ZX33U.3 | HITACHI	300X52,5X86	300X52,5X86N
ZX33U.5 | HITACHI	300X52,5X86	300X52,5X86N
ZX35U.2 | HITACHI	300X52,5X86	300X52,5X86N
ZX35U.3 | HITACHI	300X52,5X86	300X52,5X86N
ZX35U.5 | HITACHI	300X52,5X86	300X52,5X86N
ZX38U | HITACHI	300X52,5X86	300X52,5X86N
ZX38U.3 | HITACHI	300X52,5X86	300X52,5X86N
ZX38U.5 | HITACHI	300X52,5X86	300X52,5X86N
ROBEX 35Z.7A | HYUNDAI	300X52,5X86	300X52,5X86N
ROBEX 35Z.9 | HYUNDAI	300X52,5X86	300X52,5X86N
ROBEX 35Z7 | HYUNDAI	300X52,5X86	300X52,5X86N
PC30MR2 | KOMATSU	300X52,5X86	300X52,5X86N
PC30MR3 | KOMATSU	300X52,5X86	300X52,5X86N
PC35MR.2 | KOMATSU	300X52,5X86	300X52,5X86N
PC35MR.3 | KOMATSU	300X52,5X86	300X52,5X86N
NS35.2A | NAGANO	300X52,5X86	300X52,5X86N
NS35.2B | NAGANO	300X52,5X86	300X52,5X86N
HR3.7 | SCHAEFF	300X52,5X86	300X52,5X86N
AM37R | TEREX	300X52,5X86	300X52,5X86N
TC37 | TEREX	300X52,5X86	300X52,5X86N

Parameters:

Size width*pitch	link	A	B	C	D	F	pattern	guiding
130*72	29-40	23	64.5	28	28	15	AF1	A2
150*60	32-40	22	64	22.5	24.5	15	AC	A2
150*72	29-40	23	64	23	23	15	AC	A2
170*60	30-40	19	57	22	22	13	CE	A1
180*60	30-40	23.5	64	21	21.5	15	AM	A1
180*72	31-43	25	68	29	29	15	BK	A2
180*72K	32-48	20	61	22	19.5	17	BB1	B2
B180*72	31-43	23	66	30	29	15	BB1	B2
H180*72	30-50	23	64	27	26	17	BK	A2
190*60	30-40	23.5	64	21	21.5	14	AM	A1
190*72	31-41	21	68	27.5	26.5	15	BF	A2
200*72	34-47	23	76	28.5	26.5	18	BB1	A2
200*72K	37-47	21	69	29.5	29	18	BM	A2
Y200*72	40-52	24	64	28.5	29.5	12	BK	A2
230*48	60-84	24	72	24	25	21	BI	B1
230*48K	60-84	24	66	21	20	19	BI	B2
230*72	42-56	24	82	30	26	18	AF1	A2
230*72K	42-56	20	69	29.5	28	16	BD	A2
230*96	30-48	25	68	23.5	25.5	22	BE	B1
230*101	30-36	25	74	22.5	29	19	BO	B1
250*47K	84	23	70	24	20	22	BD	B2
250*48.5K	80-88	24	66	21	20	19	CA	B2
250*52.5K	72-78	26	81	23	25	25	BA	B2
250*52.5	72-78	29	72	23	25	21	BI	B1
250*72	47-57	24	82	30	26	18	AF1	A2
B250*72	34-60	23	64	29	22	10	CI	A2
B250*72B	34-60	23	78	29	26	16	AB	B2
250*96	35-38	25	70	20	19	22	BB1	B2
250*109	35-38	40	89	24.5	14	20	CG	B1
260*55.5K	74-80	31	80	21.5	27	24	CA	B2
Y260*96	38-41	25	68	23	25.5	22	AB	B1
260*109	35-39	30	84	24	29	15	AB	B1
E280*52.5K	70-88	29	84	27	26	22	BI	B2
280*72	45-64	25	78	29.5	26	22	AL	A2
Y280*106K	35-42	30	80	27.5	28	20	AB	B2
300*52.5N	72-98	30	82	25	18	20	BI	B1
300*52.5W	72-92	43	96	22	23	22	BE	B1
300*52.5K	70-84	29	84	27	26	22	BI	B2
300*52.5KW	72-92	40	92	25	24	22	BI	C1
E300*52.5K	70-88	29	84	27	26	22	BI	B2
KB300*52.5	72-92	40	90	24.5	24.5	22	BI	C1
KB300*52.5N	72-98	30	82	23	20	25	BI	B1
JD300*52.5N	72-98	30	80	23.5	22	22	BI	B1
300*53K	80-96	31	88	25	19.5	21	BI	B2
300*55	70-88	29	86	25.5	27.5	23	BI	B1
300*55.5K	76-82	31	82	22	27	21.5	CA	B2
300*71K	72-76	42	106	23	24	40	BD	B2
300*72	36-40	23	75	40	34	18	BK	A2
BA300*72	36-46	26	76	29	27	19	AF1	A2
300*109N	35-42	29	82	27	28	25	BE	B1
300*109W	35-44	38	90	26	29	24	BB1	B1
K300*109	37-41	27	85	23.5	27.5	20	AB	B2
300*109WK	35-42	40	90	24.5	14	23	CG	B1
320*52.5	72-98	30	83	23.5	18	21	BI	B1
320*54	70-84	29	80	23	21	20	AB	B1
B320*55K	70-88	30	82	25	30	23	BE	B2
Y320*106K	39-43	31	80	26	27	24	AB	B2
350*52.5	70-92	40	94	22.5	19	30.5	BE	B1
E350*52.5K	70-88	29	84	27	26	22	BI	B2
350*54.5K	80-86	40	92	23.5	22.5	23	AD	B2
B350*55K	70-88	30	82	25	30	23	BE	B2
350*56	80-86	39	89	25.5	16.5	20.5	BC	B1
350*75.5K	74	37	98	24.5	25	25	CA	C2
350*108	40-46	40	90	24.5	14	25	CG	B1
350*109	41-44	40	92	26	20	25	BO	B1
Y370*107K	39-41	38	94	25.5	28	23.5	AB	B2
400*72.5N	70-80	38	100	26	24	25	AF3	B1
400*72.5W	68-92	51	108	26	24	25	BI	B1
Y400*72.5K	72-74	28	86	30	24.5	25	AF3	C2
KB400*72.5K	68-76	37	94	24	26	23.5	BA	B2
400*72.5KW	68-92	46	112	24	23.5	25	BI	B2
400*74	68-76	38	100	25.5	29.5	24	BH2	B1
400*75.5K	74	39	100	25	26	25	CA	C2
Y400*107K	46	38	89	27	25	25	AB	C2
K400*142	36-37	27	87	34	27	29	CF	C2
400*144	36-41	47	98	27	11	30	CF	B1
Y400*144K	36-41	35	126	29.5	26	25	BE	B2
450*71	76-88	42.5	115	29.5	17	30	BE	B1
DW450*71	76-88	44	114	31	27	25	BD	B1
450*73.5	76-84	42	118	31	34	28	CG	B1
450*76	80-84	48	122	30.5	31.5	26	BI	B1
450*81N	72-80	42	117	26	24	27	BE	B1
450*81W	72-78	58	140	29	32	30	BI	B1
KB450*81.5	72-80	42	110	31.5	27.5	26	BD	B1
K450*83.5	72-74	42	112	24.5	25	28	BI	B1
Y450*83.5K	72-74	38	113	24	27	26	CA	B2
K450*163	38	38	114	27	28	30	AB	B2
485*92W	74	62	142	34	33	30	BE	B2
K500*71	72-76	41	106	23	24	42	BE	B2
500*92	72-84	48	130	27	26	29	BI	B1
500*92W	78-84	64	155	32.5	35.5	33	BI	B1
K500*146	35	40	106	26.5	24.5	50	BB1	A2
