• Model NO.：300*52.5*78W
• Link：78
• Overall Length：4095mm
• Weight：110kg
• Warranty：12 Months Under Normal Use
• Material：Rubber and Steel
• Delivery Time：5-15 Days
• Transport Package：Wooden Pallet
• Specification：300*52.5*78W
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China(Mainland)
• HS Code：8431499900
• Production Capacity：1000 Pieces Per Month

Basic Info.

Model NO. 300*52.5*78W Link 78 Overall Length 4095mm Weight 110kg Warranty 12 Months Under Normal Use Material Rubber and Steel Delivery Time 5-15 Days Transport Package Wooden Pallet Specification 300*52.5*78W Trademark No Marks or As Buyer′s Requests Origin Shanghai, China(Mainland) HS Code 8431499900 Production Capacity 1000 Pieces Per Month

Product Description

TAKEUCHI MUSTANG KOBELCO  JCB IHI Rubber track 300*52.5*78W :


Applicable machines	Excavators
Material	rubber and steel
Specification	300*52.5*78W
Installation position	Installed on the excavators

The characteristics of rubber tracks

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft

ground than steel tracks

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than

steel tracks

3. Rubber tracks permit machines to travel at a higher speed than steel tracks

4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of

machine and decreasing operator's fatigue

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30

kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled

vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles

equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm

when the machine is lifted. Readjust when the tension decreases. (Be careful because the

rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner

circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame,

an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can

cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed

We also have other kinds of and sizes of rubber tracks, if you have interest in it, do not hesitate

to send me a message and I will be very glad to be at your service.

Looking forward to receiving your enquiry.

Adaptation Models:

Model	Original Size	PUYI Size
AX27 | AIRMANN	300X52,5X78	300X52,5X78N
AX27U | AIRMANN	300X52,5X78	300X52,5X78N
AX29U | AIRMANN	300X52,5X78	300X52,5X78N
AX29UCGL | AIRMANN	300X52,5X78	300X52,5X78N
302.5C | CATERPILLAR	300X52,5X78	320X54X76
DX27 | DOOSAN	300X52,5X78	300X52,5X78N
MB288 | GEHLMAX	300X52,5X78	300X52,5X78N
EX27U | HITACHI	300X52,5X78	300X52,5X78N
EX29U | HITACHI	300X52,5X78	300X52,5X78N
ZX27U | HITACHI	300X52,5X78	300X52,5X78N
25NX | IHI	300X52,5X78	300X52,5X78W
25NX.2 | IHI	300X52,5X78	300X52,5X78N
25VX | IHI	300X52,5X78	300X52,5X78W
25VX.2 | IHI	300X52,5X78	300X52,5X78W
27V4 | IHI	300X52,5X78	300X52,5X78N
28N | IHI	300X52,5X78	300X52,5X78W
28N.2 | IHI	300X52,5X78	300X52,5X78W
28N.3 | IHI	300X52,5X78	300X52,5X78W
IS28N | IHI	300X52,5X78	300X52,5X78W
8026CTS | JCB	300X52,5X78	300X52,5X78W
SK024 | KOBELCO	300X52,5X78	300X52,5X78W
SK024.1 | KOBELCO	300X52,5X78	300X52,5X78W
SK025.1 | KOBELCO	300X52,5X78	300X52,5X78W
SK025.2 | KOBELCO	300X52,5X78	300X52,5X78W
SK025SR | KOBELCO	300X52,5X78	300X52,5X78W
SK25SR | KOBELCO	300X52,5X78	300X52,5X78W
Z13 | KOBELCO	300X52,5X78	300X52,5X78W
PC15.7 | KOMATSU	300X52,5X78	300X52,5X78K
PC20MRX UTILITY | KOMATSU	300X52,5X78	300X52,5X78N
35PG | MESSERSI?	300X52,5X78	300X52,5X78N
ME3003 | MUSTANG	300X52,5X78	300X52,5X78W
TB025 | TAKEUCHI	300X52,5X78	300X52,5X78W
TB125 | TAKEUCHI	300X52,5X78	300X52,5X78W
TB228 | TAKEUCHI	300X52,5X78	300X52,5X78W
TB230 | TAKEUCHI	300X52,5X78	300X52,5X78W
AURA 28 |	300X52,5X78	300X52,5X78N

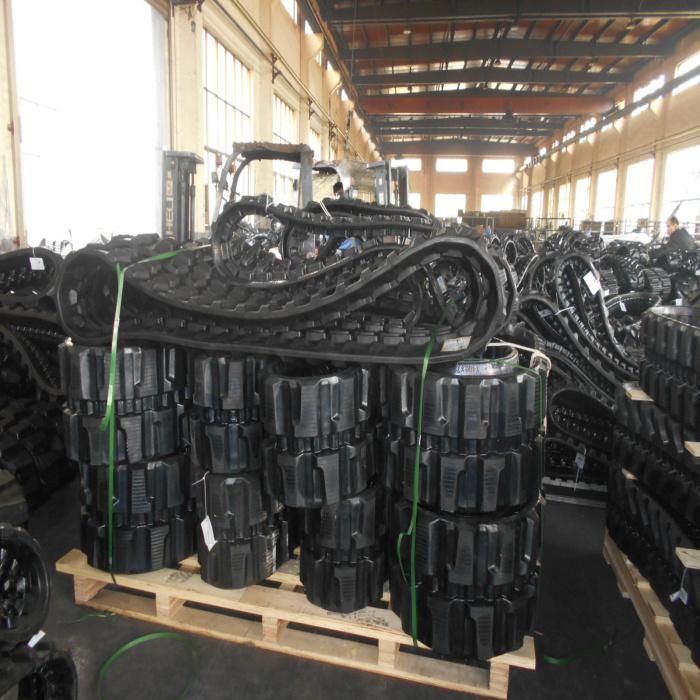

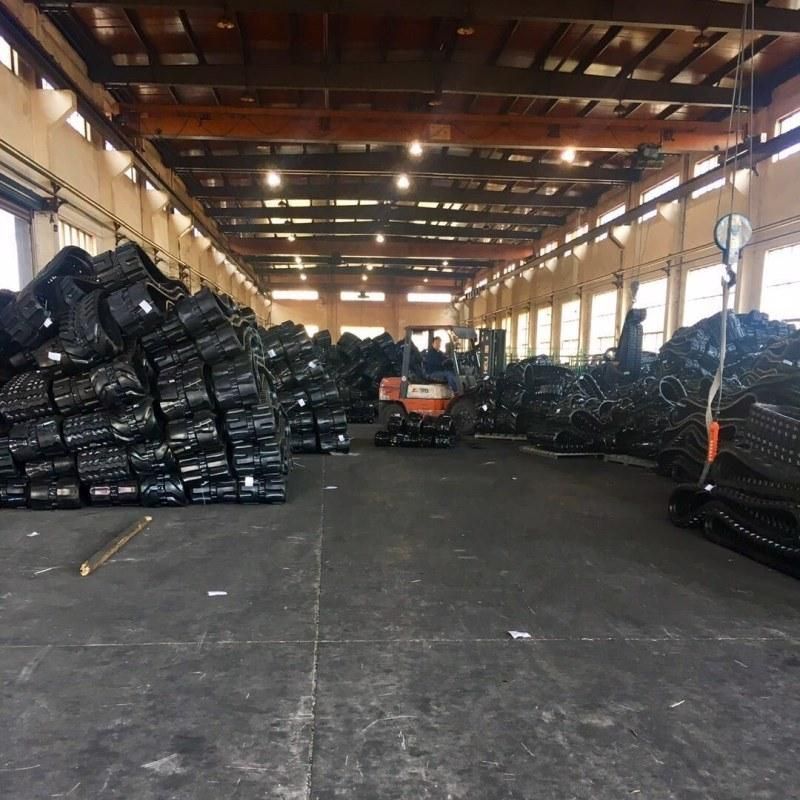

Warehouse:
