• Model NO.：300x52.5nx82
• Width：300mm
• Pitch：52.5mm
• Link：82
• Color：Black
• Material：Rubber and Steel
• Delivery Time：5-15 Days
• Exported Markets：Global
• Transport Package：Wooden Pallet
• Specification：300*52.5*82
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. 300x52.5nx82 Width 300mm Pitch 52.5mm Link 82 Color Black Material Rubber and Steel Delivery Time 5-15 Days Exported Markets Global Transport Package Wooden Pallet Specification 300*52.5*82 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 5000PCS/Month

Product Description

Rubber track 300*52.5N*82 for AIRMANN CASE CORMIDI EUROCOMACH HITACHI NEW HOLLAND :


Applicable machines	Excavators
Material	rubber and steel
Specification	300*52.5*82N
Installation position	Installed on the excavators

The characteristics of rubber tracks

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft

ground than steel tracks

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than

steel tracks

3. Rubber tracks permit machines to travel at a higher speed than steel tracks

4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of

machine and decreasing operator's fatigue

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30

kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled

vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles

equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm

when the machine is lifted. Readjust when the tension decreases. (Be careful because the

rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner

circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame,

an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can

cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed

We also have other kinds of and sizes of rubber tracks, if you have interest in it, do not hesitate

to send me a message and I will be very glad to be at your service.

Looking forward to receiving your enquiry.

Adaptation Models:

Model	Original Size	PUYI Size
AX30.1 | AIRMANN	300X52,5X82	300X52,5X82N
AX30.2 | AIRMANN	300X52,5X82	300X52,5X82N
AX30UR.3 | AIRMANN	300X52,5X82	300X52,5X82N
AX32U | AIRMANN	300X52,5X82	300X52,5X82N
AX33MU | AIRMANN	300X52,5X82	300X52,5X82N
AX33U | AIRMANN	300X52,5X82	300X52,5X82N
AX35 | AIRMANN	300X52,5X82	300X52,5X82N
AX35.3 | AIRMANN	300X52,5X82	300X52,5X82N
AX35CGL.3 | AIRMANN	300X52,5X82	300X52,5X82N
CX31B | CASE	300X52,5X82	300X52,5X82N
CX31BMC | CASE	300X52,5X82	300X52,5X82N
CX31BMR | CASE	300X52,5X82	300X52,5X82N
CX31BZTS | CASE	300X52,5X82	300X52,5X82N
CX35B | CASE	300X52,5X82	300X52,5X82N
34200 | CORMIDI	300X52,5X82	300X52,5X82N
ES300SR | EUROCOMACH	300X52,5X82	300X52,5X82N
ES350ZT | EUROCOMACH	300X52,5X82	300X52,5X82N
TS35 | EUROTOM	300X52,5X82	300X52,5X82N
FH30.2 | FIAT HITACHI	300X52,5X82	300X52,5X82N
E33U | HITACHI	300X52,5X82	300X52,5X82N
EX30 | HITACHI	300X52,5X82	300X52,5X82N
EX30.1 | HITACHI	300X52,5X82	300X52,5X82N
EX30.2 | HITACHI	300X52,5X82	300X52,5X82N
EX30UR.3 | HITACHI	300X52,5X82	300X52,5X82N
EX32U | HITACHI	300X52,5X82	300X52,5X82N
EX32UE | HITACHI	300X52,5X82	300X52,5X82N
EX33MU | HITACHI	300X52,5X82	300X52,5X82N
EX35.2 | HITACHI	300X52,5X82	300X52,5X82N
ZX30 | HITACHI	300X52,5X82	300X52,5X82N
ZX35 | HITACHI	300X52,5X82	300X52,5X82N
SK027 | KOBELCO	300X52,5X82	300X52,5X82W
SK027.1 | KOBELCO	300X52,5X82	300X52,5X82W
SK030.1 | KOBELCO	300X52,5X82	300X52,5X82W
SK030.2 | KOBELCO	300X52,5X82	300X52,5X82W
SK030SR | KOBELCO	300X52,5X82	300X52,5X82W
SK030UR | KOBELCO	300X52,5X82	300X52,5X82W
SK030UR.1 | KOBELCO	300X52,5X82	300X52,5X82W
SK030UR.2 | KOBELCO	300X52,5X82	300X52,5X82W
SK27 | KOBELCO	300X52,5X82	300X52,5X82W
SK30SR | KOBELCO	300X52,5X82	300X52,5X82W
SK30SR.1 | KOBELCO	300X52,5X82	300X52,5X82W
SK30SR.2 | KOBELCO	300X52,5X82	300X52,5X82W
SK30SR.3 | KOBELCO	300X52,5X82	300X52,5X82N
SK30UR | KOBELCO	300X52,5X82	300X52,5X82W
SK30UR.1 | KOBELCO	300X52,5X82	300X52,5X82W
SK30UR.2 | KOBELCO	300X52,5X82	300X52,5X82W
Z14 | KOBELCO	300X52,5X82	300X52,5X82W
M32 | MESSERSI?	300X52,5X82	300X52,5X82N
28Z3 | NEUSON	300X52,5X82	300X52,5X82W
EZ28 | NEUSON	300X52,5X82	300X52,5X82W
E35BSRT | NEW HOLLAND	300X52,5X82	300X52,5X82N
EH30B | NEW HOLLAND	300X52,5X82	300X52,5X82N
NHK30SR3C | NEW HOLLAND	300X52,5X82	300X52,5X82N
NHK30SR3R | NEW HOLLAND	300X52,5X82	300X52,5X82N
RH1.30SR2 | ORENSTEIN & KOPPEL	300X52,5X82	300X52,5X82N
TB030 | TAKEUCHI	300X52,5X82	300X52,5X82W
TB128FR | TAKEUCHI	300X52,5X82	300X52,5X82W
TB25 | TAKEUCHI	300X52,5X82	300X52,5X82W
TB28FR | TAKEUCHI	300X52,5X82	300X52,5X82W

Parameters:

Size width*pitch	link	A	B	C	D	F	pattern	guiding
130*72	29-40	23	64.5	28	28	15	AF1	A2
150*60	32-40	22	64	22.5	24.5	15	AC	A2
150*72	29-40	23	64	23	23	15	AC	A2
170*60	30-40	19	57	22	22	13	CE	A1
180*60	30-40	23.5	64	21	21.5	15	AM	A1
180*72	31-43	25	68	29	29	15	BK	A2
180*72K	32-48	20	61	22	19.5	17	BB1	B2
B180*72	31-43	23	66	30	29	15	BB1	B2
H180*72	30-50	23	64	27	26	17	BK	A2
190*60	30-40	23.5	64	21	21.5	14	AM	A1
190*72	31-41	21	68	27.5	26.5	15	BF	A2
200*72	34-47	23	76	28.5	26.5	18	BB1	A2
200*72K	37-47	21	69	29.5	29	18	BM	A2
Y200*72	40-52	24	64	28.5	29.5	12	BK	A2
230*48	60-84	24	72	24	25	21	BI	B1
230*48K	60-84	24	66	21	20	19	BI	B2
230*72	42-56	24	82	30	26	18	AF1	A2
230*72K	42-56	20	69	29.5	28	16	BD	A2
230*96	30-48	25	68	23.5	25.5	22	BE	B1
230*101	30-36	25	74	22.5	29	19	BO	B1
250*47K	84	23	70	24	20	22	BD	B2
250*48.5K	80-88	24	66	21	20	19	CA	B2
250*52.5K	72-78	26	81	23	25	25	BA	B2
250*52.5	72-78	29	72	23	25	21	BI	B1
250*72	47-57	24	82	30	26	18	AF1	A2
B250*72	34-60	23	64	29	22	10	CI	A2
B250*72B	34-60	23	78	29	26	16	AB	B2
250*96	35-38	25	70	20	19	22	BB1	B2
250*109	35-38	40	89	24.5	14	20	CG	B1
260*55.5K	74-80	31	80	21.5	27	24	CA	B2
Y260*96	38-41	25	68	23	25.5	22	AB	B1
260*109	35-39	30	84	24	29	15	AB	B1
E280*52.5K	70-88	29	84	27	26	22	BI	B2
280*72	45-64	25	78	29.5	26	22	AL	A2
Y280*106K	35-42	30	80	27.5	28	20	AB	B2
300*52.5N	72-98	30	82	25	18	20	BI	B1
300*52.5W	72-92	43	96	22	23	22	BE	B1
300*52.5K	70-84	29	84	27	26	22	BI	B2
300*52.5KW	72-92	40	92	25	24	22	BI	C1
E300*52.5K	70-88	29	84	27	26	22	BI	B2
KB300*52.5	72-92	40	90	24.5	24.5	22	BI	C1
KB300*52.5N	72-98	30	82	23	20	25	BI	B1
JD300*52.5N	72-98	30	80	23.5	22	22	BI	B1
300*53K	80-96	31	88	25	19.5	21	BI	B2
300*55	70-88	29	86	25.5	27.5	23	BI	B1
300*55.5K	76-82	31	82	22	27	21.5	CA	B2
300*71K	72-76	42	106	23	24	40	BD	B2
300*72	36-40	23	75	40	34	18	BK	A2
BA300*72	36-46	26	76	29	27	19	AF1	A2
300*109N	35-42	29	82	27	28	25	BE	B1
300*109W	35-44	38	90	26	29	24	BB1	B1
K300*109	37-41	27	85	23.5	27.5	20	AB	B2
300*109WK	35-42	40	90	24.5	14	23	CG	B1
320*52.5	72-98	30	83	23.5	18	21	BI	B1
320*54	70-84	29	80	23	21	20	AB	B1
B320*55K	70-88	30	82	25	30	23	BE	B2
Y320*106K	39-43	31	80	26	27	24	AB	B2
350*52.5	70-92	40	94	22.5	19	30.5	BE	B1
E350*52.5K	70-88	29	84	27	26	22	BI	B2
350*54.5K	80-86	40	92	23.5	22.5	23	AD	B2
B350*55K	70-88	30	82	25	30	23	BE	B2
350*56	80-86	39	89	25.5	16.5	20.5	BC	B1
350*75.5K	74	37	98	24.5	25	25	CA	C2
350*108	40-46	40	90	24.5	14	25	CG	B1
350*109	41-44	40	92	26	20	25	BO	B1
Y370*107K	39-41	38	94	25.5	28	23.5	AB	B2
400*72.5N	70-80	38	100	26	24	25	AF3	B1
400*72.5W	68-92	51	108	26	24	25	BI	B1
Y400*72.5K	72-74	28	86	30	24.5	25	AF3	C2
KB400*72.5K	68-76	37	94	24	26	23.5	BA	B2
400*72.5KW	68-92	46	112	24	23.5	25	BI	B2
400*74	68-76	38	100	25.5	29.5	24	BH2	B1
400*75.5K	74	39	100	25	26	25	CA	C2
Y400*107K	46	38	89	27	25	25	AB	C2
K400*142	36-37	27	87	34	27	29	CF	C2
400*144	36-41	47	98	27	11	30	CF	B1
Y400*144K	36-41	35	126	29.5	26	25	BE	B2
450*71	76-88	42.5	115	29.5	17	30	BE	B1
DW450*71	76-88	44	114	31	27	25	BD	B1
450*73.5	76-84	42	118	31	34	28	CG	B1
450*76	80-84	48	122	30.5	31.5	26	BI	B1
450*81N	72-80	42	117	26	24	27	BE	B1
450*81W	72-78	58	140	29	32	30	BI	B1
KB450*81.5	72-80	42	110	31.5	27.5	26	BD	B1
K450*83.5	72-74	42	112	24.5	25	28	BI	B1
Y450*83.5K	72-74	38	113	24	27	26	CA	B2
K450*163	38	38	114	27	28	30	AB	B2
485*92W	74	62	142	34	33	30	BE	B2
K500*71	72-76	41	106	23	24	42	BE	B2
500*92	72-84	48	130	27	26	29	BI	B1
500*92W	78-84	64	155	32.5	35.5	33	BI	B1
K500*146	35	40	106	26.5	24.5	50	BB1	A2

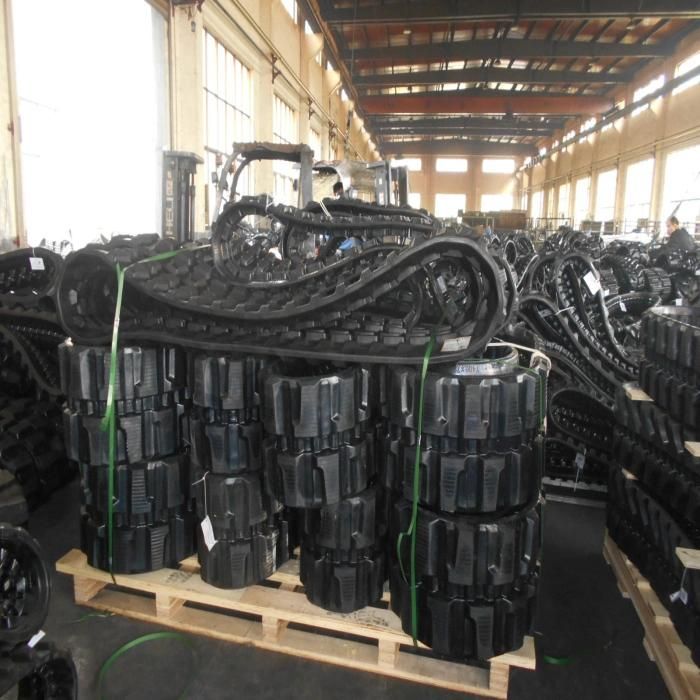

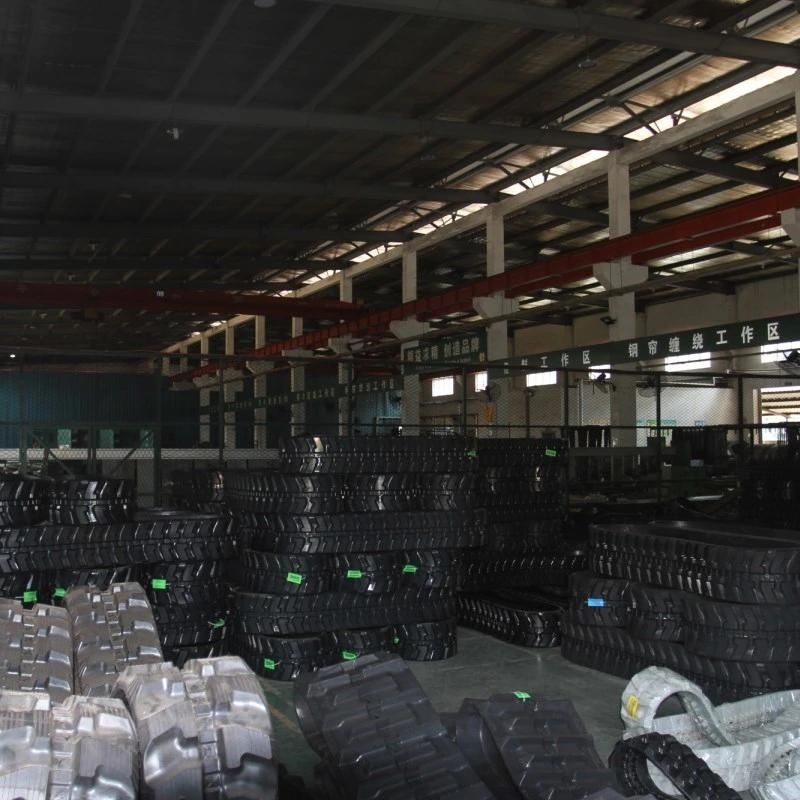

Warehouse:
