• Model NO.：ZX680
• Torque：27000 N.M
• Pipe Length：3 M
• Pipe Diameter：1000 mm
• Warranty：12 Months
• Transport Package：Nude Package
• Specification：ISO CE GOST
• Trademark：ORIEMAC
• Origin：Beijing
• HS Code：84304122
• Production Capacity：150PCS,Month

Basic Info.

Model NO. ZX680 Torque 27000 N.M Pipe Length 3 M Pipe Diameter 1000 mm Warranty 12 Months Transport Package Nude Package Specification ISO CE GOST Trademark ORIEMAC Origin Beijing HS Code 84304122 Production Capacity 150PCS/Month

Product Description

Piling Machinery ORIEMAC HDD ZX680 Horizontal Directional Drilling Rig Machine in Dubai

1.Closed loops, hydraulic pilot control, load sensing control help to save energy and operate flexibly.



2.The gear and rack transmission makes stability and reliability, Double floating patented technology for power head and vice is to improve service life of rods' thread.

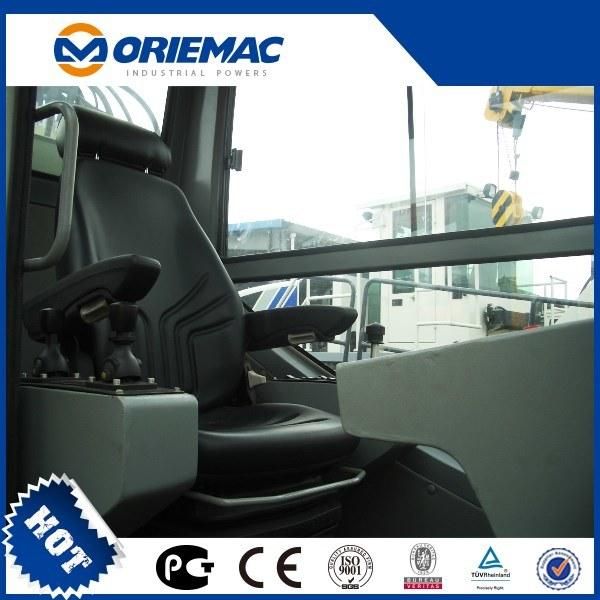

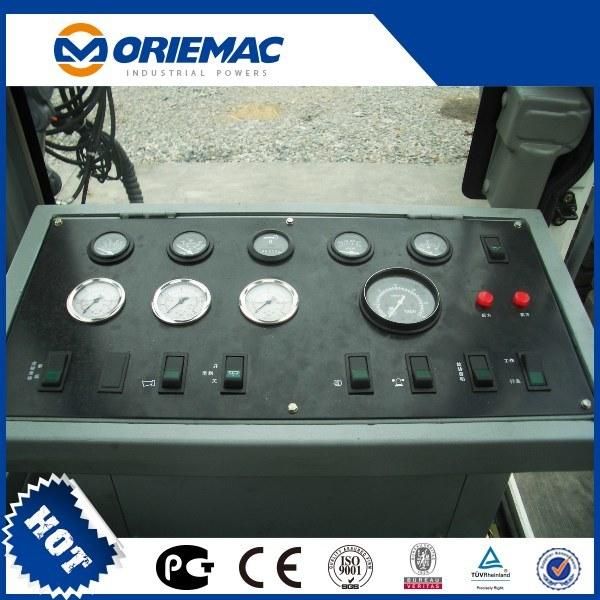

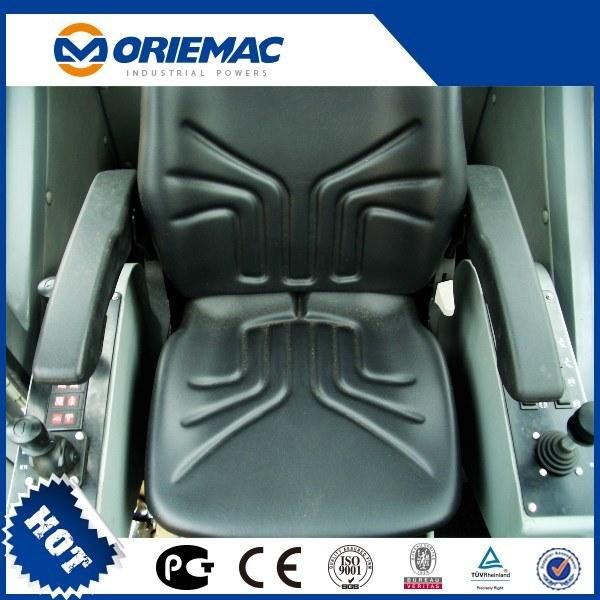

3.Standard cab and air conditioner,layout of instrument and control system in line with the ergonomics,operate flexible and comfortable convenient and efficient.



4.USA original imported Engine, powerful, ample power reserves to meet drill construction in different working conditions.

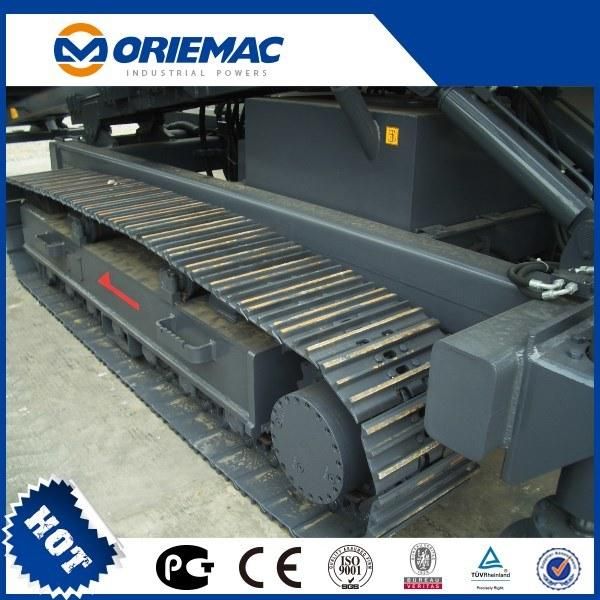

5.Wire guided walking system makes moving safe.



Product parameters

Project		Parameter
Engine	Unit
Type	-	NTA855-C335
Rated power	(kW/r/min)	250/2100
Thrust-Pull
Max thrust-pull force	(kN)	680
thrust-pull speed	(m/min)	30
Rotation
Torque	(N·m)	27000
Max spindle speed	(r/min)	100

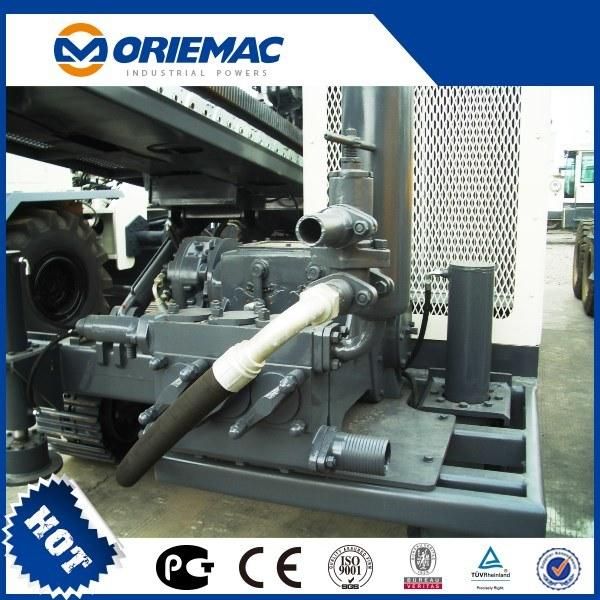

Mud pump
Max Flow rate	(L/min)	600
Max pressure	(MPa)	10
Pipe	(mm×m)	φ102×6
Loader Crane
Lifting weight	(t)	2
Loading capacity	(t•m)	4
Max inclination angle	(°)	18
Max backreamer diameter	(mm)	φ1000
Weight	(t)	23
Dimension	(mm)	11350×2800×3000
Remark		Optional:I.Cab;II.Air-condition;III.Full-automatic pipeloader;IV.Semi-automatic pipeloader;V.Mud
