China Top Brand Oriemac Horizontal Directional Drilling Machine HDD Machine Zx400
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Power Type：Diesel
- Usage：Soil
- Voltage：220V,380V
- Power(W)：179 Kw
- Weight：11.5 T
- Engine：Us Imported Diesel Engine
Base Info
- Model NO.：ZX400
- Torque：14000 N.M
- Pipe Length：3 M
- Pipe Diameter：83 mm
- Warranty：12 Months
- Transport Package：Nude Package
- Specification：ISO CE GOST
- Trademark：ORIEMAC
- Origin：Beijing
- HS Code：84304122
- Production Capacity：150PCS,Month
Description
Basic Info.
Model NO. ZX400 Torque 14000 N.M Pipe Length 3 M Pipe Diameter 83 mm Warranty 12 Months Transport Package Nude Package Specification ISO CE GOST Trademark ORIEMAC Origin Beijing HS Code 84304122 Production Capacity 150PCS/MonthProduct Description

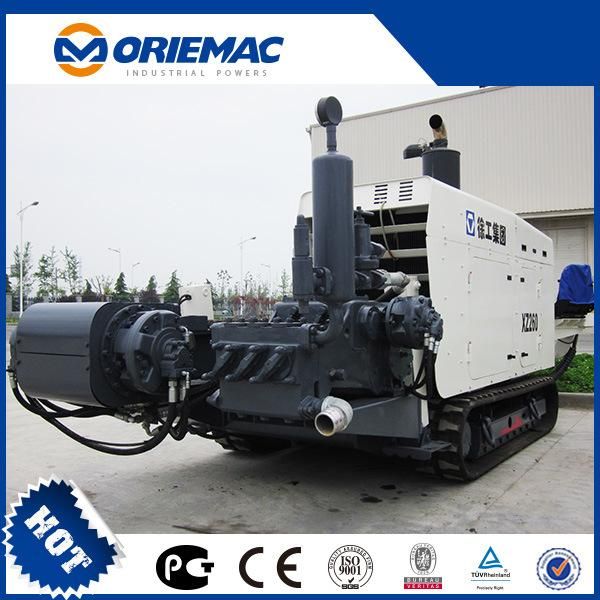

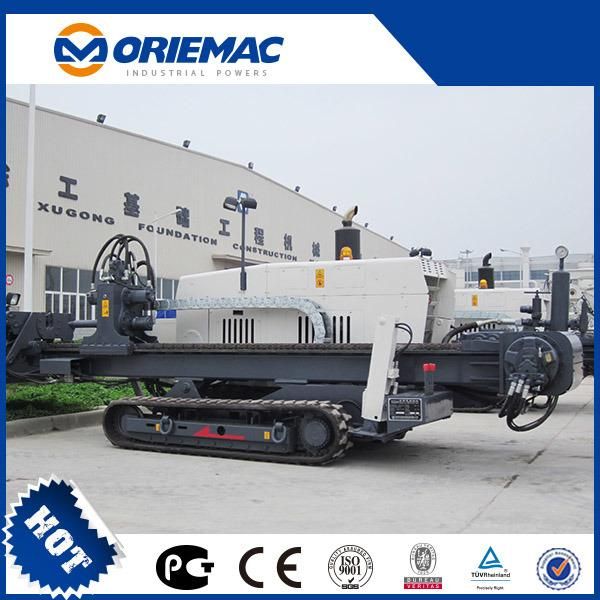

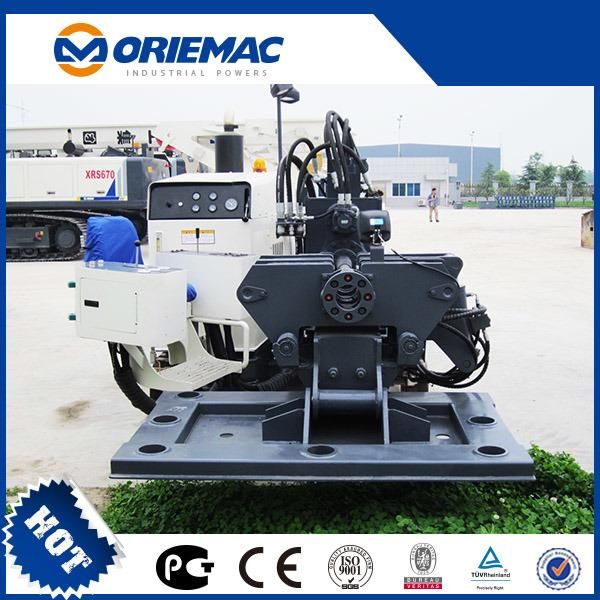

China Top Brand ORIEMAC Horizontal Directional Drilling Machine HDD Machine Zx400
1.High-power engine system, strong power. It is adopted turbine engine which power is 179kW. The powerful engine is enough and insures there is enough power for drill in different working conditions.
2.Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational. Power head floating.
3.Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
4.High-speed sliding and rotation systems, variable motor to achieve high and low power head sliding change, increasing the ability to adapt the drilling rig working conditions, improve the efficiency of the drilling rig construction.
5.Support the diverse needs of customers, the machine can be increased with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices.
Product parameters
| Project | Parameter | |
| Engine | Unit | |
| Type | - | 6CTAA8.3-C240 |
| Rated power | (kW/r/min) | 179/2200 |
| Thrust-Pull | ||
| Max thrust-pull force | (kN) | 400 |
| thrust-pull speed | (m/min) | 21 |
| Rotation | ||
| Torque | (N·m) | 14000 |
| Max spindle speed | (r/min) | 104 |
| Mud pump | ||
| Max Flow rate | (L/min) | 450 |
| Max pressure | (MPa) | 8 |
| Pipe | (mm×m) | φ83×3 |
| Loader Crane | ||
| Lifting weight | (t) | - |
| Loading capacity | (t•m) | - |
| Max inclination angle | (°) | 23 |
| Max backreamer diameter | (mm) | φ900 |
| Weight | (t) | 11.5 |
| Dimension | (mm) | 7080×2450×2450 |
| Remark | Optional: I.Semi-automatic pipeloader; II.Single automatic anchor; III.Dual automatic anchor;IV.Mud |
