• Model NO.：SWL80K
• Type：Large Loader
• Product Name：Payloader
• Brand：Sinoway
• Engine：Cummins
• Engine Power：330 HP
• Lifting Time of Bucket：6.9 S
• Max. Dump Clearance：3300 mm
• Bucket Width：3455 mm
• Warranty：One Year
• Transport Package：Nude
• Specification：ISO9001
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：60 Unit,Month

Basic Info.

Model NO. SWL80K Type Large Loader Product Name Payloader Brand Sinoway Engine Cummins Engine Power 330 HP Lifting Time of Bucket 6.9 S Max. Dump Clearance 3300 mm Bucket Width 3455 mm Warranty One Year Transport Package Nude Specification ISO9001 Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 60 Unit/Month

Product Description

Main Advantage
Heavy duty powerful engine
At the heart of our exceptional powertrain lies the latest Cummins engine. This power house has been designed to deliver impressive acceleration and torque output, along with a serious bucket filling and lifting capability which greatly increases cycle times and earning potential.
Heavyweight Combination
Faster cycle times are made easy with the machine's power combination. The engine is teamed up with a four speed, ZF smooth shifting transmission. This combination optimizes power and fuel efficiency, day after day, increasing bucket breakout force and loading capability. To this, we've added larger, high capacity axles which make light work of the
German ZF axle performance
Stability, traction and weight loading capability are the 3 key essentials for axles in heavy applications. The new ZF axles with limited-slip differentials excel in handling heavy loads up to 44t static and 25t dynamic in tough terrain. The intelligent, responsive power combined with excellent traction and stability give operators a real feeling of
confidence on any ground - soft and shifting or hard and unforgiving.

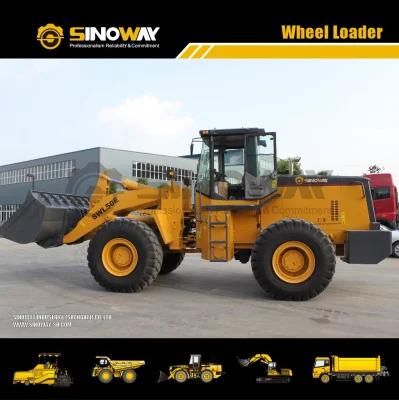

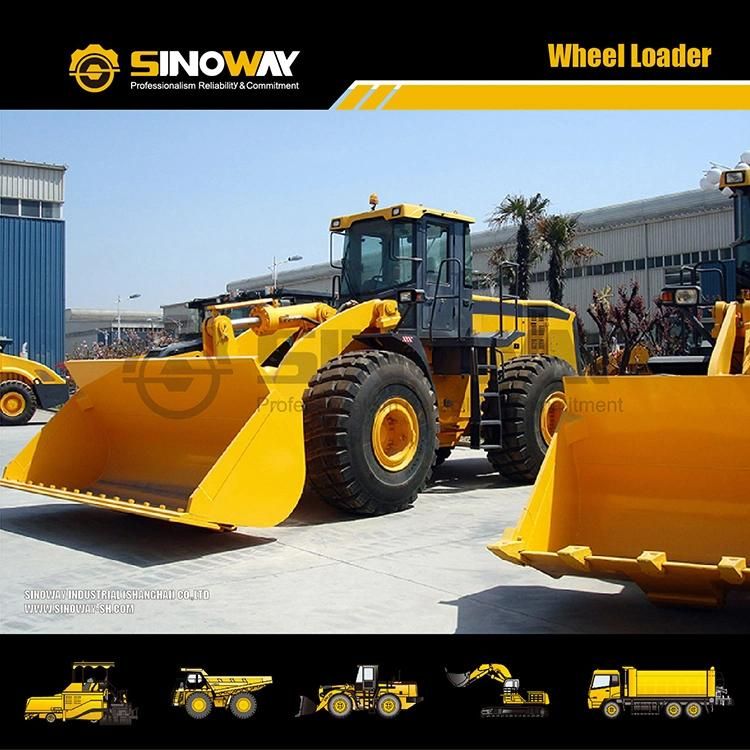

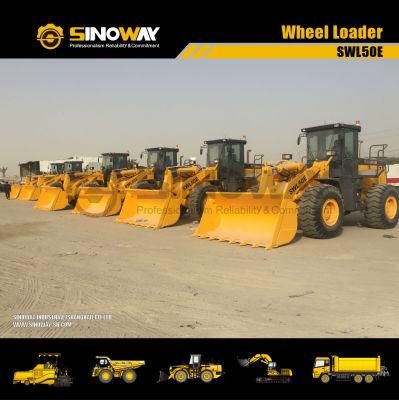

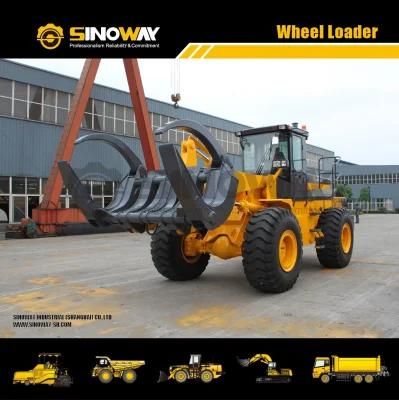

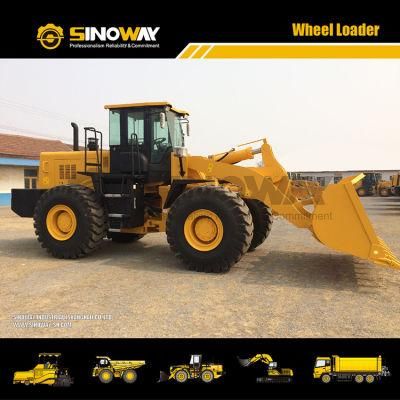

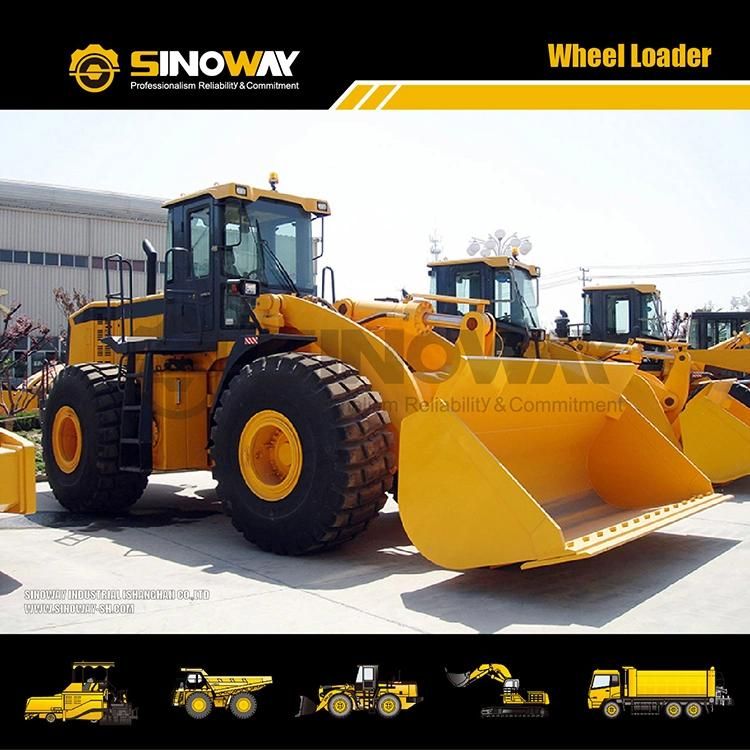

Machine show


Specifications


Engine
Model	Cummins M11
Type	Six-cylinder,water-cooled,turbocharged,mechanical injection
Rated power	235KW
Rated speed	2100rpm
Main Technical Specification
Rated load	8000Kg
Operating weight	30000Kg
Rated bucket capacity	4.5m3
Max. breakout force	260KN
Max. dump clearance	3300mm
Dump reach	1460mm
Dump angle at any position	45o
Digging depth(with bucket bottom horizontal)	198mm
Min. turning radius(outside of bucket)	7570mm
Oscillating angle of rear axle	±13o
Lifting time of bucket	≤6.9s
Lowering time of bucket	≤3.8s
Dumping time	≤1.5s
Implement Hydraulic System
Model of oil pump	Gear
System pressure	20.7MPa
Model of multi-way directional valve	Imported
Priority valve	Imported
Axle And Tyre
Type of main reducer	Single stage
Gear ratio of main reducer	4.777
Type of final reducer	Single stage planetary
Gear of ratio of final reducer	5.167
Total ratio	24.685
Max. tractive force	265KN
Tyre size	29.5-25
Steering System
Type	Hydraulic articulated steering
Model of steering pump	Gear
System pressure	19.0MPa
Articulated steering angle	38±1o(L/R)
Transmission System
Torque Converter
Type	3 elements, single stage
Torque ratio	2.985
Cooling type	Pressure oil circulating
Gear box
Type	Power shift
Gear shifts(Forward/Reverse)	F4/R3
Travelling speed(km/h)
Forward/Reverse I	7.3/7.3
Forward/Reverse II	12/12
Forward/Reverse III	24.5/24.5
Forward IV	35
Dimensions
Overall length(with bucket on ground)	9350mm
Overall width(to outside of wheels)	3170mm
Overall height(to the top of the cab)	3770mm
Bucket width	3455mm
Wheel base	3530mm
Tread	2420mm
Ground clearance	476mm
Service Capacities
Fuel tank	445L
Engine crank case	33L
Converter and gear box	62L
Hydraulic tank	250L
Braking System
Service brake type	multi disc
Service brake actuation	Hydraulic
Parking brake type	Auto and manual electronic controlled
Parking brake actuation	Spring apply,hydraulic release
