• Model NO.：SWL40K
• Product Name：Payloader
• Brand：Sinoway
• Engine：Weichai
• Engine Power：125kw
• Bucket Capacity：2.3 M3
• Operating Weight：14.5 Ton
• Color：Yellow
• Warranty：One Year
• Transport Package：Naked
• Specification：ISO2008
• Trademark：Sinoway
• Origin：China
• HS Code：84295100
• Production Capacity：300 PCS,Month

Basic Info.

Model NO. SWL40K Product Name Payloader Brand Sinoway Engine Weichai Engine Power 125kw Bucket Capacity 2.3 M3 Operating Weight 14.5 Ton Color Yellow Warranty One Year Transport Package Naked Specification ISO2008 Trademark Sinoway Origin China HS Code 84295100 Production Capacity 300 PCS/Month

Product Description

Highlights
Equipped with Weichai engine with strong power and high reliability.
All-around visibility. High-strength integral framework is used for cab, which ensures high security. Good seal & shock absorption effect , quality seat and optional A/C provide the users with comfortable operating environment.
The optimal matching of energy-saving engine, efficient torque converter and hydraulic system contributes to excellent energy efficiency.
New type reinforced drive axles are adopted for large bearing capacity and high reliability. Reasonable distribution on front and rear axles ensures overall stability.
.Reinforced box type articulated structure increases steering angle and reliability, contributing to flexibility.
Working devices are optimized. High-strength wear-resisting cutting edge is used on bucket, increasing the wear resistance.
Low pressure and wide bias tyres are adopted for exceptional off-road ability and passage capacity, adapting to various road conditions.

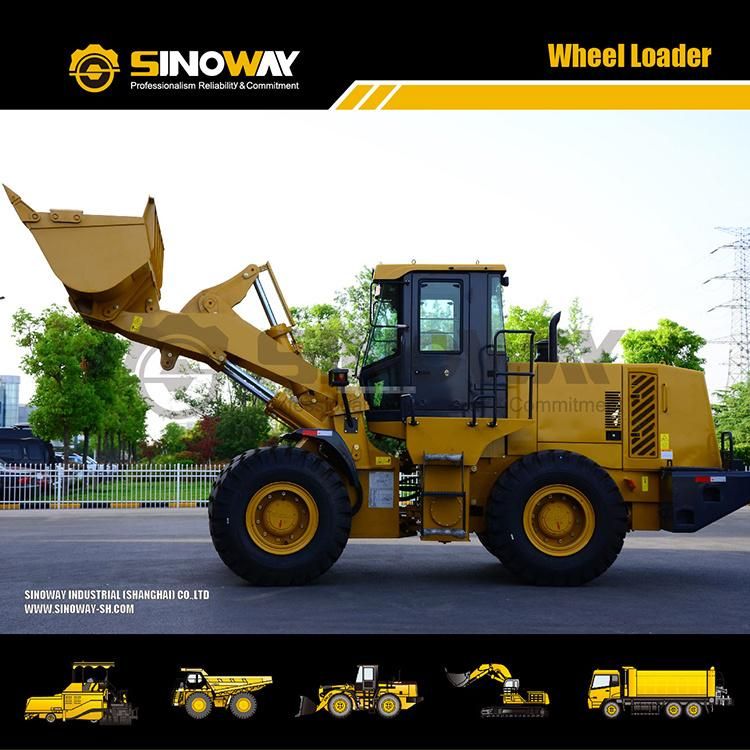

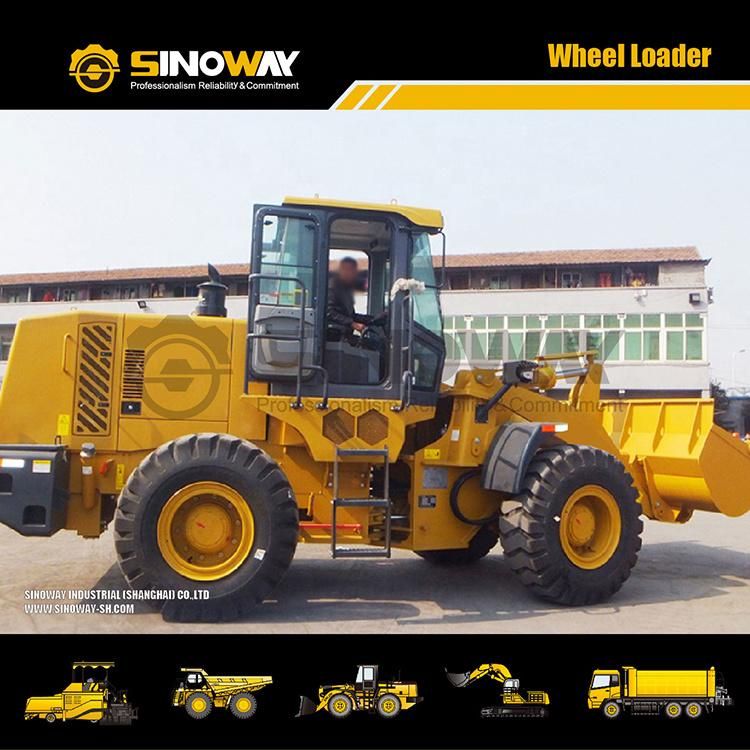

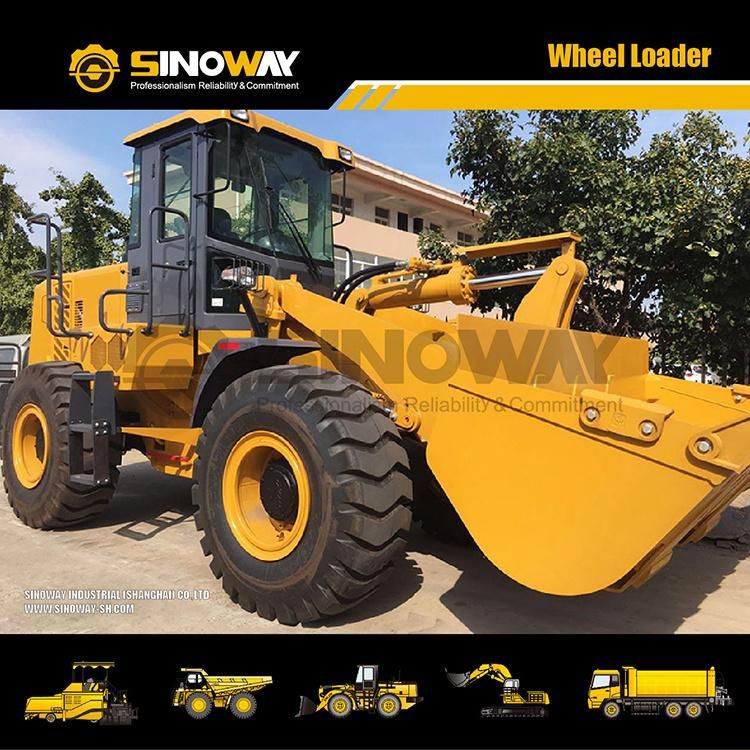

Product Show



Specificcations

Engine
Engine model	Weichai
Type	Six-cylinder, four-stroke, water-cooled, turbocharged,mechanical injection
Rated power	125kw
Rated speed	2200rpm
Max.torque	500N.m
Fuel consumption	<=210Kw.h
Main Technical Specification
Rated loading	4000kg
Overall weight	14500kg
Bucket capacity	2.3m³
Maximum traction force	95KN
Maximum breakout force	127KN
Maximum grade ability	30ºC
Maximum dump height	3100mm
Maximum dump reach	1100mm
Minimum turning radius	6400mm
Transmission
Torque converter	YJ315-X
Gearbox mode	Power shift, planetary structure
Gears	2 forward 1 reverse
Maximum speed	45km/h
Drive Axles
Main reducing spiral	Bevel gear grade 1reduction
Decelerating mode	Planetary reduction grade 1
Hydraulic system
System working pressure	16.5MPa
Boom lifting time	4.83
Total time	9.85±0.5s
Tyre
Model	20.5-25
Front tyre pressure	0.4Mpa
Rear tyre pressure	0.35Mpa
Dimension
Length	7130mm
Width	2500mm
Height	3340mm
Wheel base	2900mm
Tread	1830mm
Ground clearance	400mm
Brake system
Service brake	Air assist disc brake on 4 wheels
Parking brake	Manual disk brake
