CE Certificated Z-17aw Underground Mining Tunnel Electric Wheel Rock Ore Loading Mucker

SHANDONG BETTER ONWARD MACHINERY CO., LTD.
  • After-sales Service：Video Technical Support
  • Warranty：1 Year
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：About 340kg
  • Transmission：Mechanical Transmission

Base Info

  • Model NO.：Z-17AW
  • Load and Unload Mode：Front Loading and Rear Unloading
  • Walking Mode：Wheeled
  • Type：Medium-sized Loader
  • Product Name：Electric Rock Loader
  • Bucket Volume：0.17+,- 0.017m3
  • Voltage：380V
  • Motor Rotate Speed：750r,Min
  • Max. Working Height：1920mm
  • Unload Height：1210mm
  • Loading Width：1700mm
  • Unload Distance：270mm
  • Rail Gauge：580mm, 600mm, 762mm, 900mm
  • Applicable Tunnel Size：Width:1.8m, Height:2m
  • Max. Tunnel Inclined Degree：8 Degree
  • Transport Package：Export Wooden Case Packing
  • Specification：net weight: 3500kgs
  • Trademark：N,M
  • Origin：China
  • HS Code：8429510000
  • Production Capacity：100sets,Month

Description

Rail gauge600mm (standard)600mm (standard)600mm (standard)580mm/ 762mm/ 900mm
( Customized)580mm/ 762mm/ 900mm
( Customized)580mm/ 762mm/ 900mm
( Customized)Overall size2120* 1056*1260mm2400* 1330*1460mm2620* 1300*1570mmMachine weight3500kgs3700kgs4500kgsApplicable tunnel sizeWidth:≥1.8m, Height:≥2mWidth:≥2m, Height:≥2.2mWidth:≥2.5m, Height:≥2.5mTunnel inclined degree≤8°≤8°≤8°

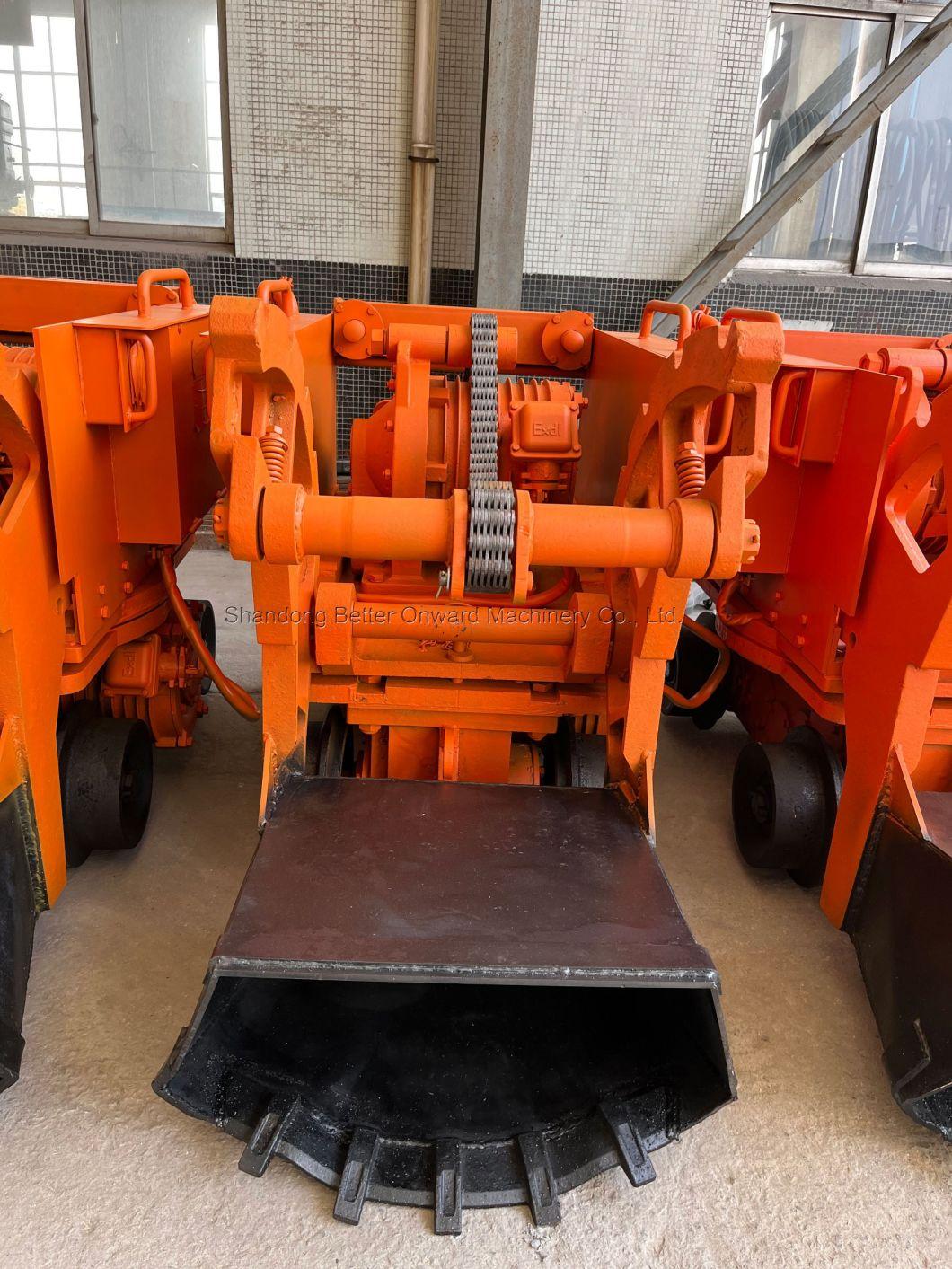

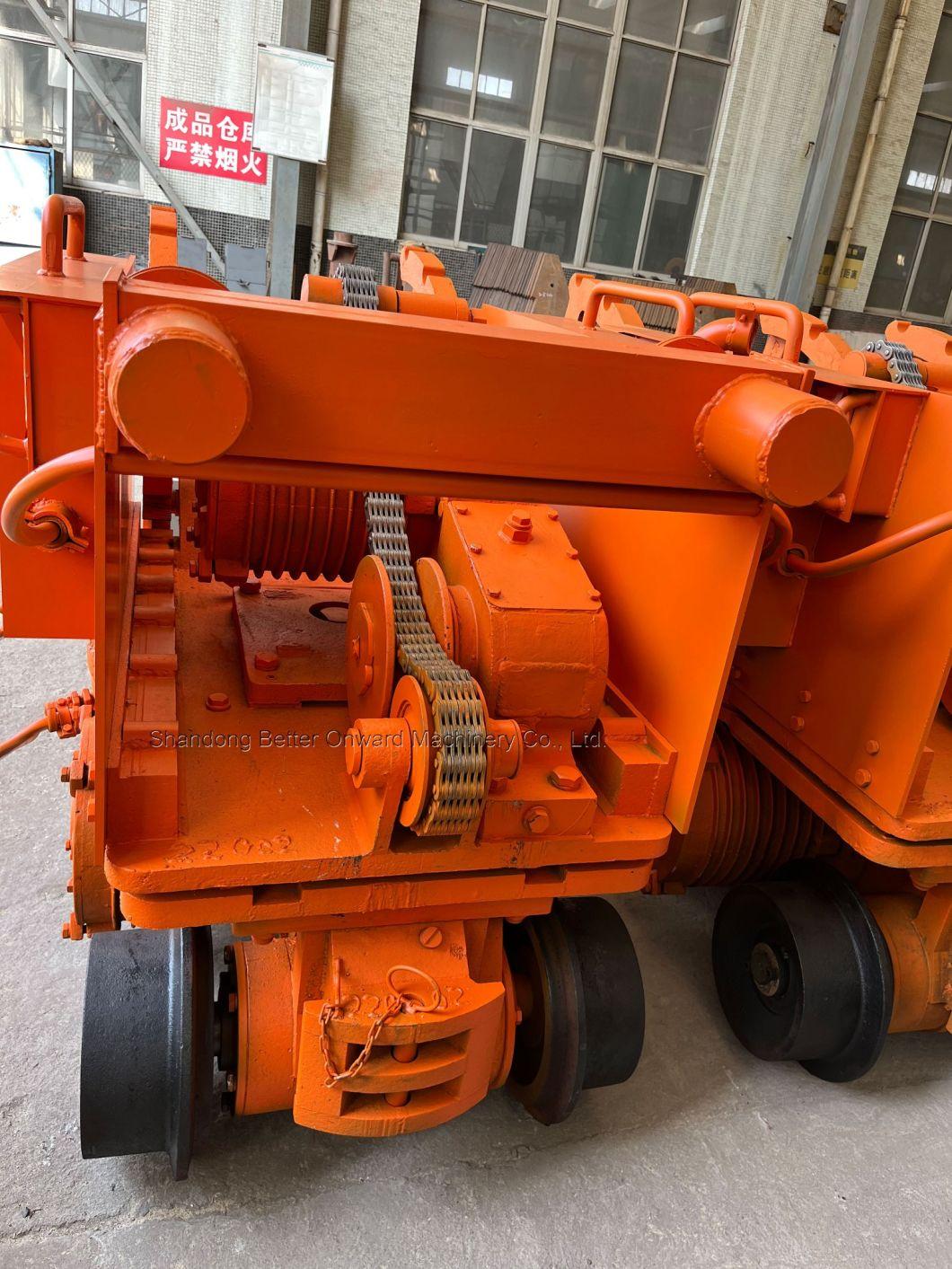

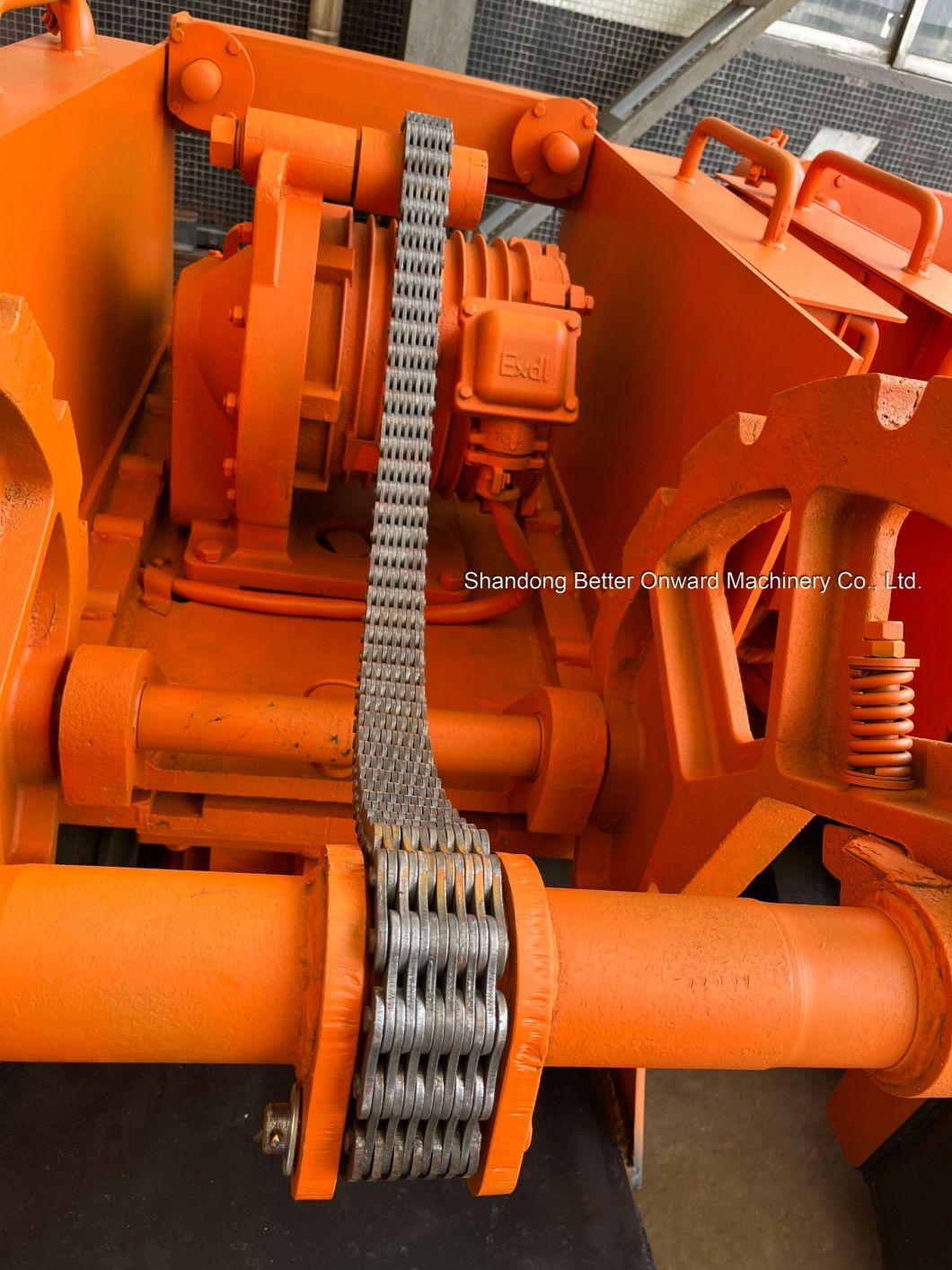

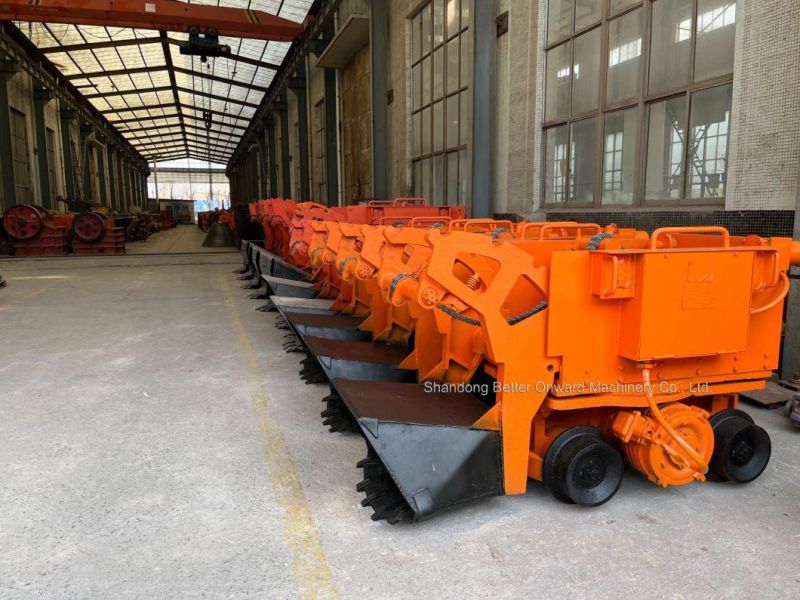

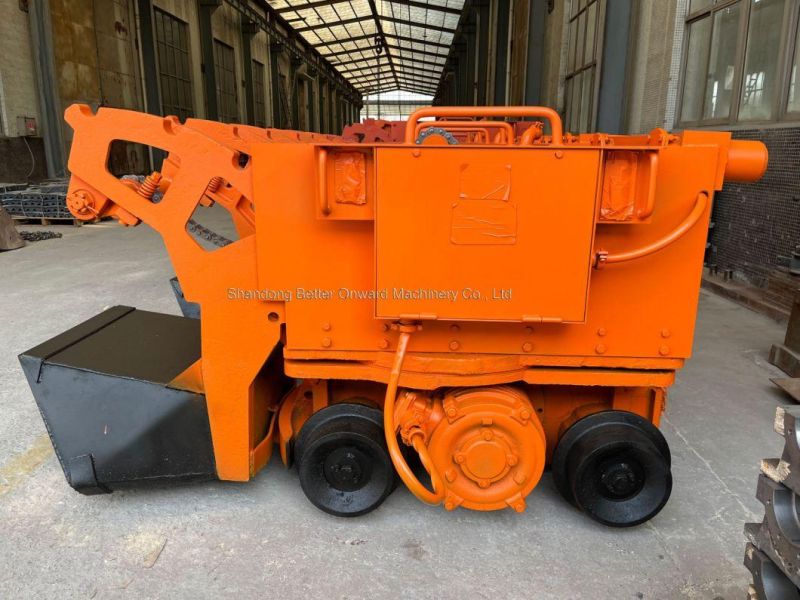

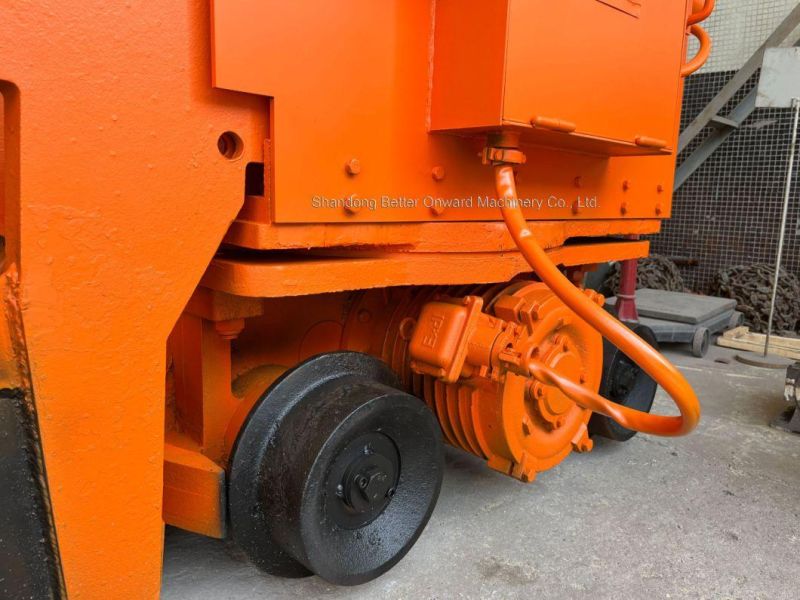

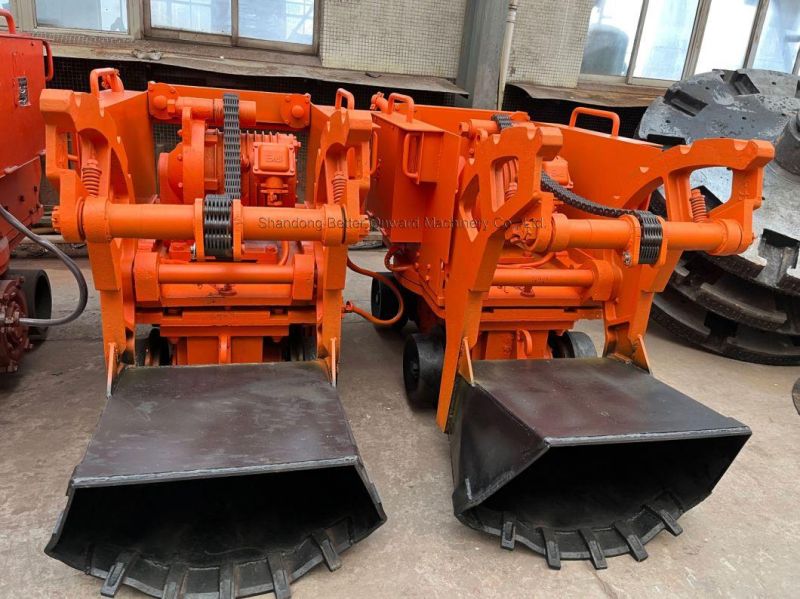

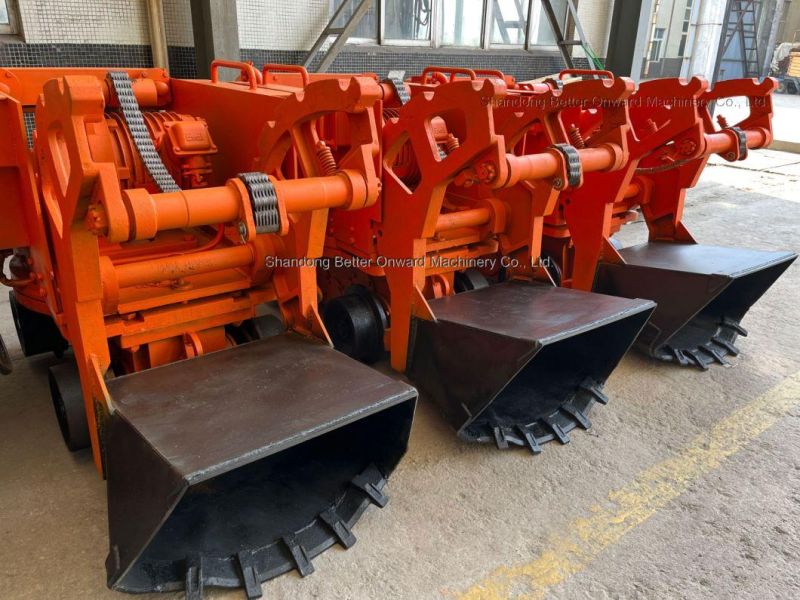

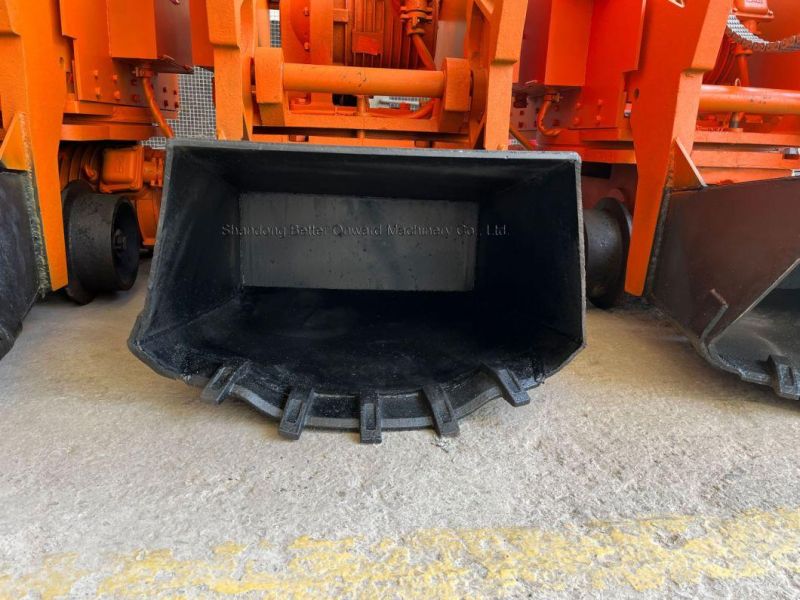

Images of Electric Mucking Loader
