Z-17aw Electric Wheel Bucket Mucking Rock Ore Loader for Metal Mine
SHANDONG BETTER ONWARD MACHINERY CO., LTD.- After-sales Service：Video Technical Support
- Warranty：1 Year
- Certification：ISO, CE
- Condition：New
- Rated Load：About 340kg
- Transmission：Mechanical Transmission
Base Info
- Model NO.：Z-17AW
- Load and Unload Mode：Front Loading and Rear Unloading
- Walking Mode：Wheeled
- Type：Medium-sized Loader
- Product Name：Electric Rock Loader
- Bucket Volume：0.17+,- 0.017m3
- Voltage：380V
- Motor Rotate Speed：750r,Min
- Max. Working Height：1920mm
- Unload Height：1210mm
- Loading Width：1700mm
- Unload Distance：270mm
- Rail Gauge：580mm, 600mm, 762mm, 900mm
- Applicable Tunnel Size：Width:1.8m, Height:2m
- Max. Tunnel Inclined Degree：8 Degree
- Transport Package：Export Wooden Case Packing
- Specification：net weight: 3500kgs
- Trademark：N,M
- Origin：China
- HS Code：8429510000
- Production Capacity：100sets,Month
Description
Rail gauge600mm (standard) 600mm (standard) 600mm (standard) 580mm/ 762mm/ 900mm
( Customized) 580mm/ 762mm/ 900mm
( Customized) 580mm/ 762mm/ 900mm
( Customized) Overall size 2120* 1056*1260mm 2400* 1330*1460mm 2620* 1300*1570mm Machine weight 3500kgs 3700kgs 4500kgs Applicable tunnel size Width:≥1.8m, Height:≥2m Width:≥2m, Height:≥2.2m Width:≥2.5m, Height:≥2.5m Tunnel inclined degree ≤8° ≤8° ≤8°

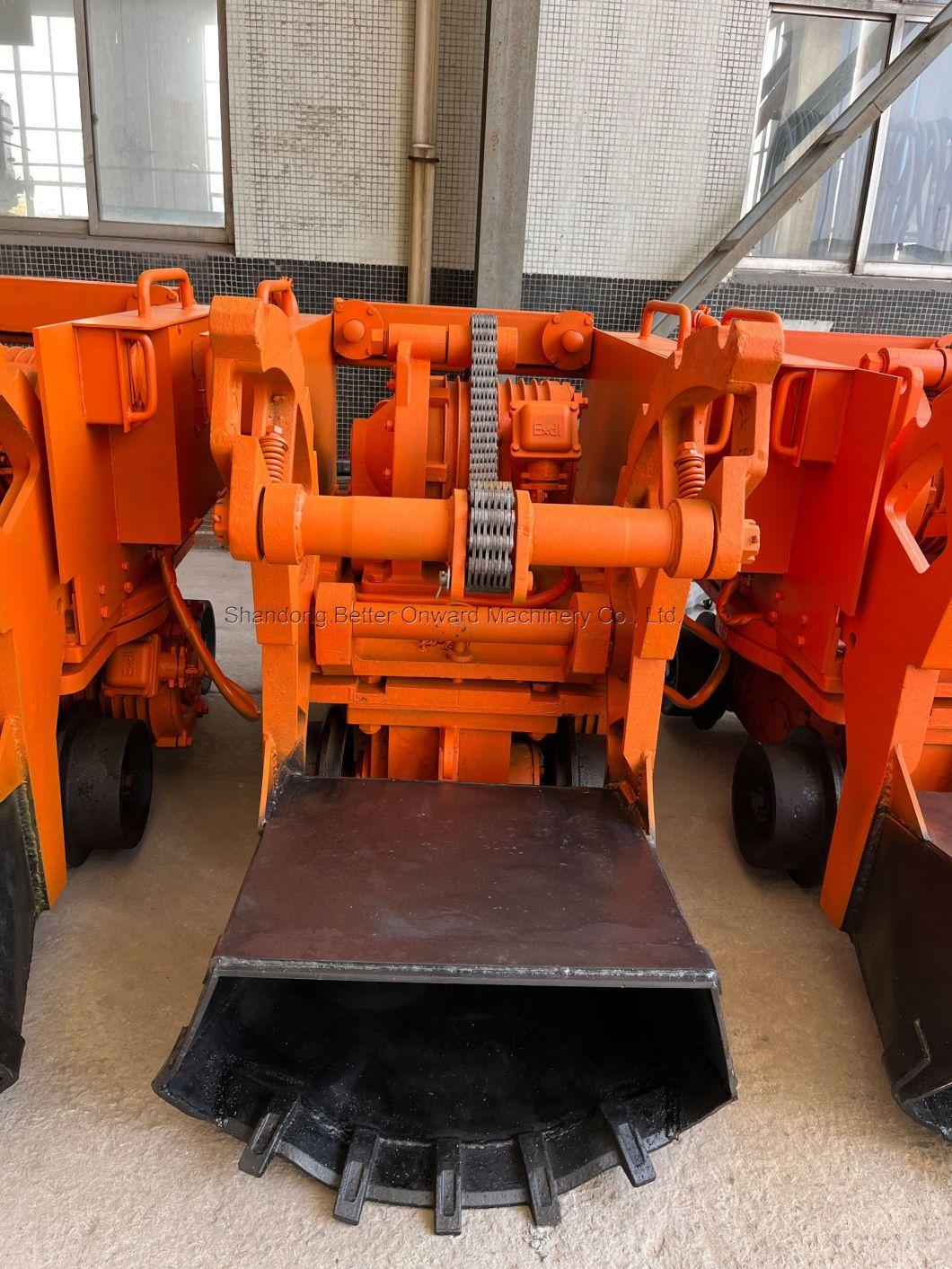

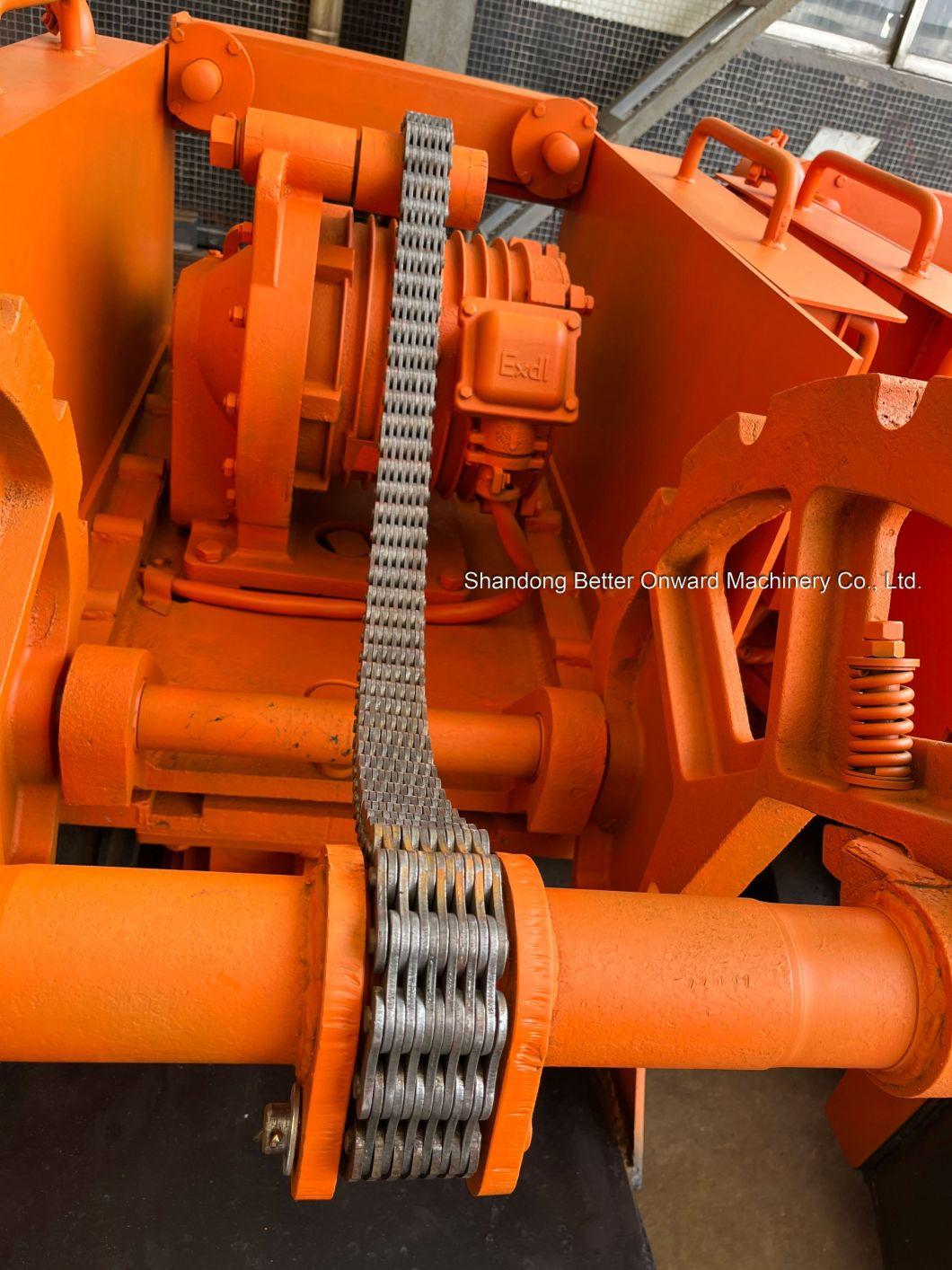

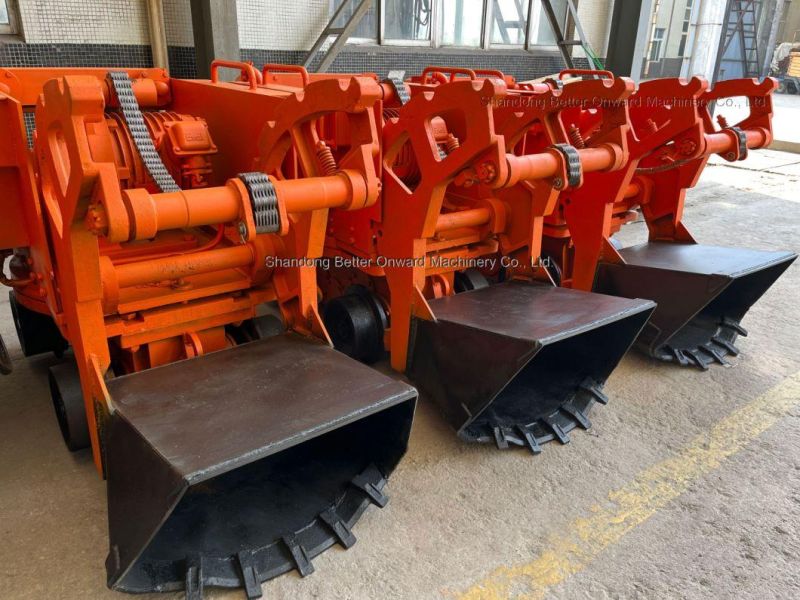

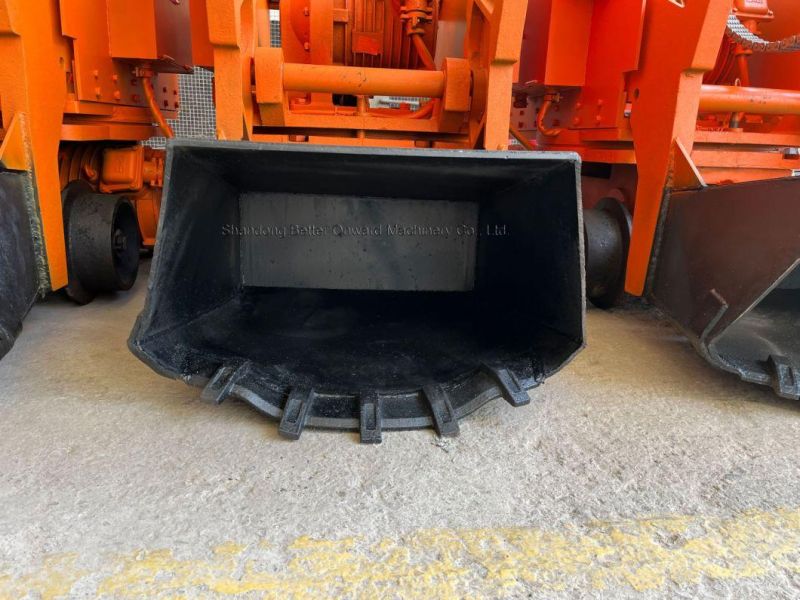

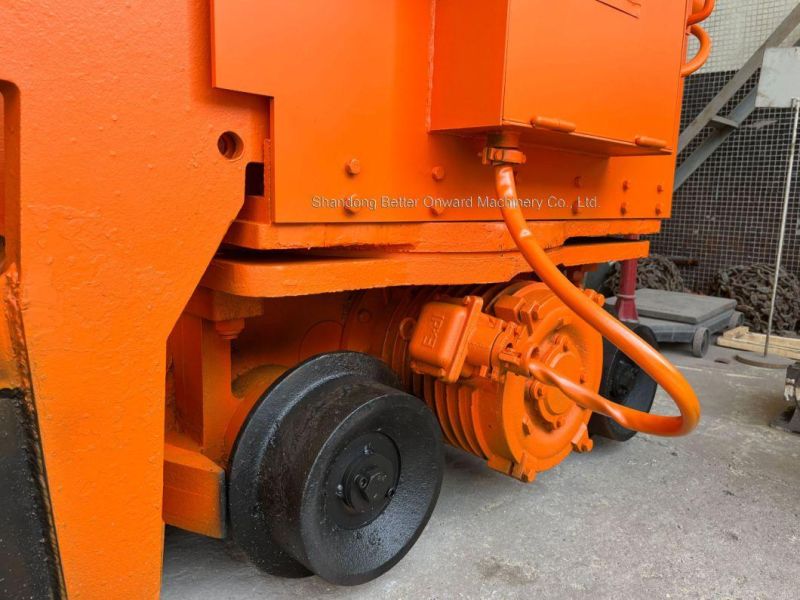

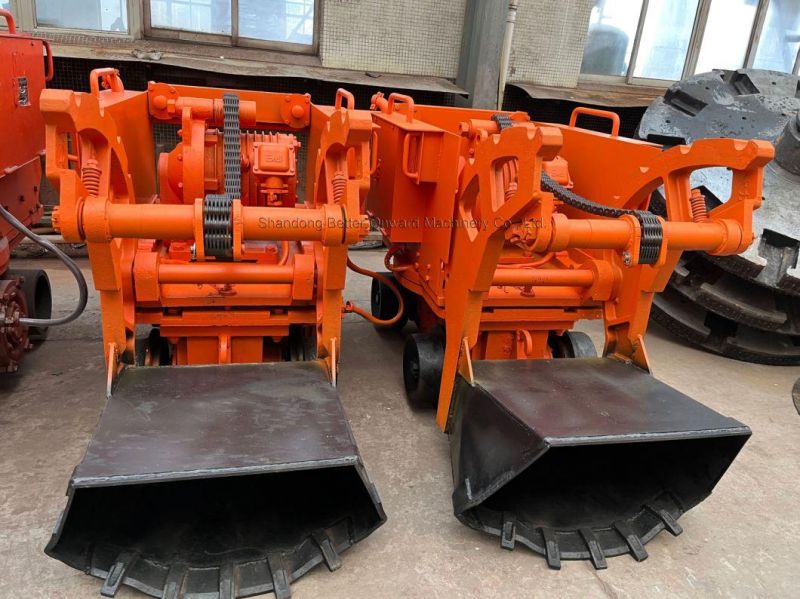

Images of Electric Mucking Loader
( Customized)
( Customized)
( Customized)

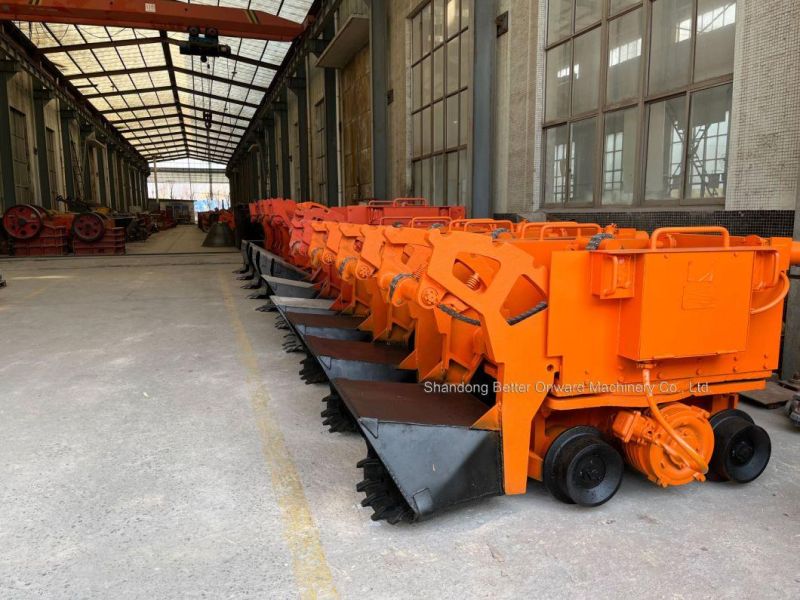

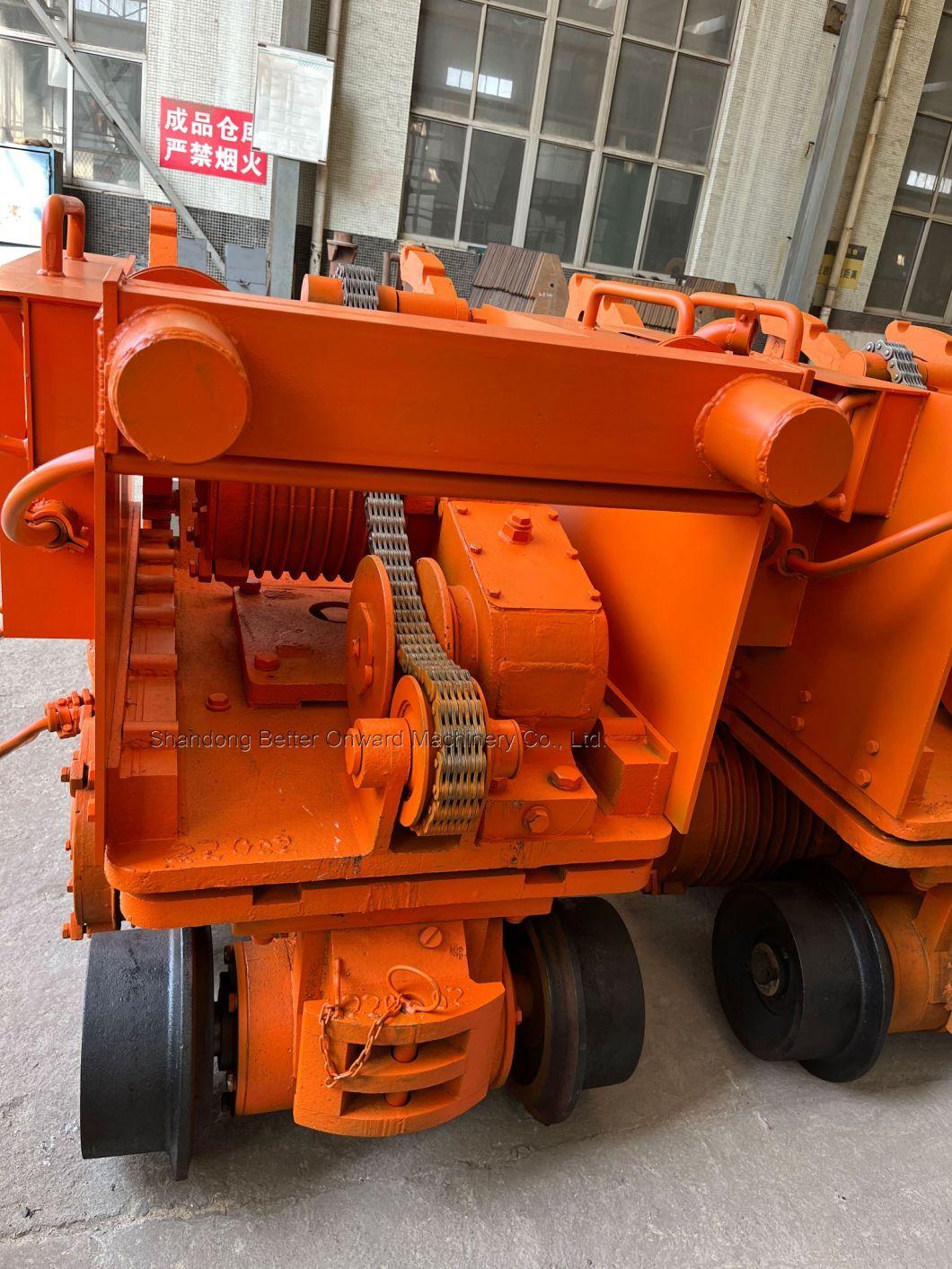

Images of Electric Mucking Loader
