• Model NO.：GR215
• Walking Mode：Wheeled
• Type：Medium-sized Grader
• Ground Clearance：430mm
• Total Weight (Standard)：16500 Kg
• Maximum Gradeability：30%
• Engine Model：6CTA8.3-C215
• Rated Power/Speed：160kw,2200rpm
• Tire Specification：17.5-25
• Transport Package：Container, RO-RO
• Specification：9180x2625x3420mm
• Trademark：Raygoo
• Origin：Fujian, China
• HS Code：8408201002
• Production Capacity：5000

Overview Product ParametersItemGR215Basic parametersEngine model6CTA8.3-C215Rated power/speed160kW/2200rpmOverall dimension (standard)8970x2625x3420Total weight (standard)16500 kgTire specification17.5-25Ground clearance (front axle)430mmSpace of front and rear axles6219 mmSpace of middle and rear wheels1538 mmPerformance
parametersForward velocity5,8,11,19,23,38km/hReverse speed5,11,23km/hTractive effort f=0.7587 kNMaximum gradeability20%Tire inflation pressure260kPaWorking system pressure16MPaTransmission pressure1.3-1.8MpaWorking parametersMaximum steering angle of front wheel±50°Maximum slant angle of front wheel±17°Maximum oscillating angle of front axle±15°Maximum oscillating angle of equilibrium boxforwards15°, Reverse15°Maximum steering angle of frame±27°Minimum turning radius7.3mScrape knifeMaximum lift height450mmMaximum cutting depth500mmMaximum tilt angle90°Cutting angle28°-70°Angle of revolution360°Length & chord height4270x610mmOil filling amountCoolant50LFuel tank280LEngine24LTransmission38LEquilibrium box46LCoolant28LHydraulic oil110LDetailed Photos



Our machines advantages

Why choose RAYGOO GROUP

1. Quality assurance
2. Multi-currency payment ( RMB / USD / EUR) & Multi Payment team: T/T, L/C at sight....

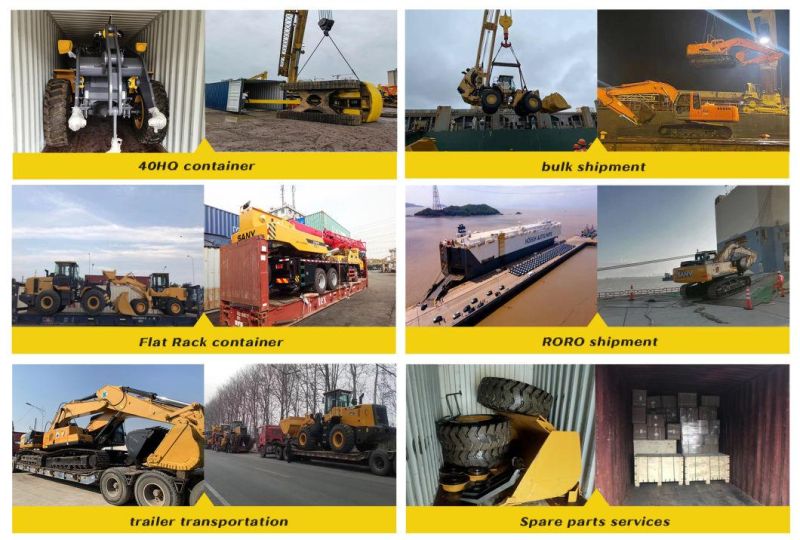

3. Cheap shipment costs, Rich container package & Fast shipment:
Raygoo group cooperated with many shipping company many years, which can get the cheapest ocean freight with latest shipping date, even whole shipping tracking.

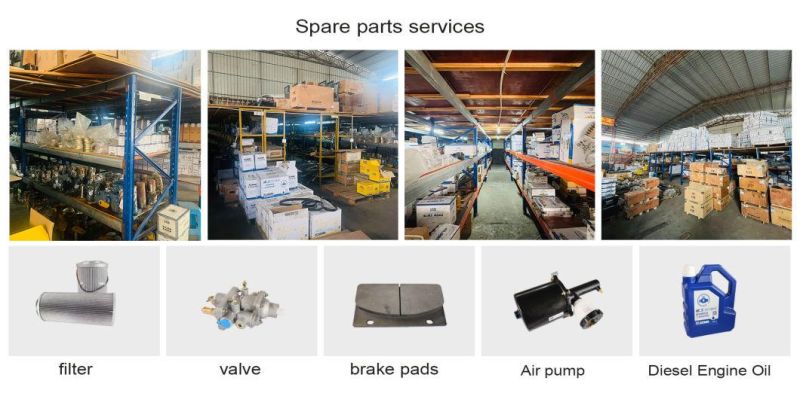

4. Long-term spare parts support:
Since 2015, in order to effectively solve our customers spare parts demand, we built a spare parts department, which get high speaking feedback from our clients.

5. Long-term technical service support:
We have a professional technical team which provide technical support for our domestic or oversea clients. If clients have some technical problems which can't deal with it by self, we can provide video support or door to door support.
6. Door and door service:
Till now, we can support door and door assembling service if they can't assemble it when container arrived in some countries,such as Philippines, Zimbabwe, Mozambique, Kenya, Cambodia, Indonesia.... If the quantity is large, even can provide engineer indoor support.


7. Rich brands:
As we worked on construction machines more than 15 years, which already build nice strategic relationship with world brand company for competitive price and quality.support
