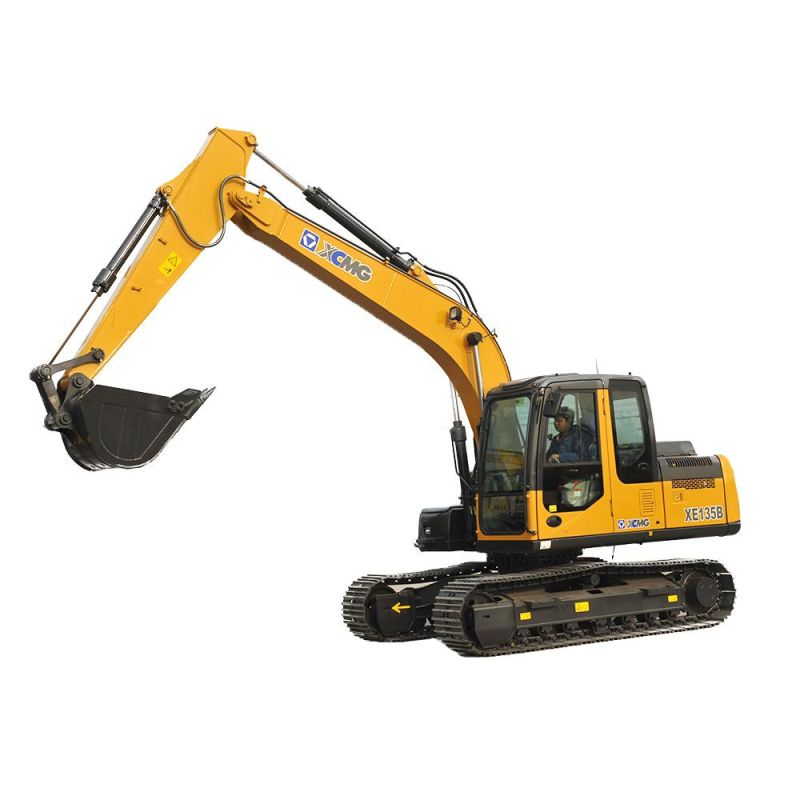

XCMG Construction Equipment Tools List 10 Ton RC Crawler Excavator for Sale
Xuzhou Construction Machinery Group Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator
- Transmission：Hydraulic Transmission
- Bucket Capacity：>1.5m³
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
Base Info

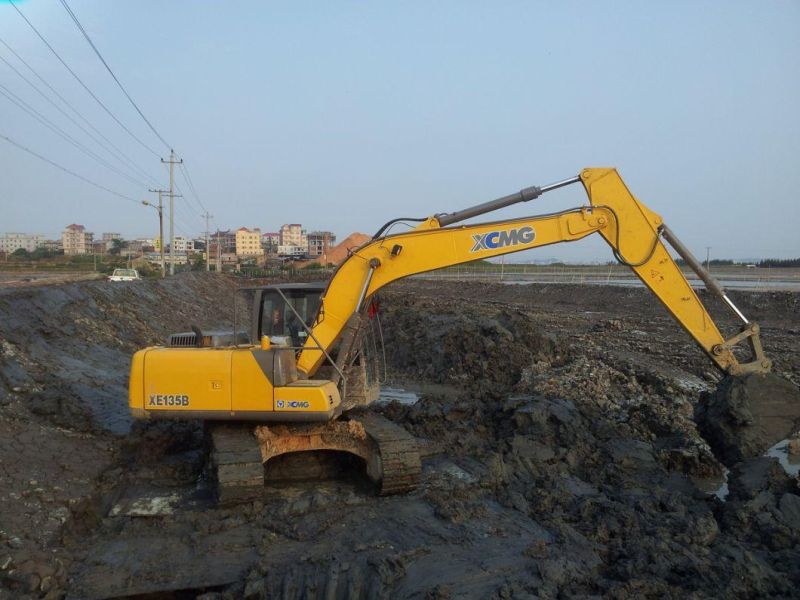

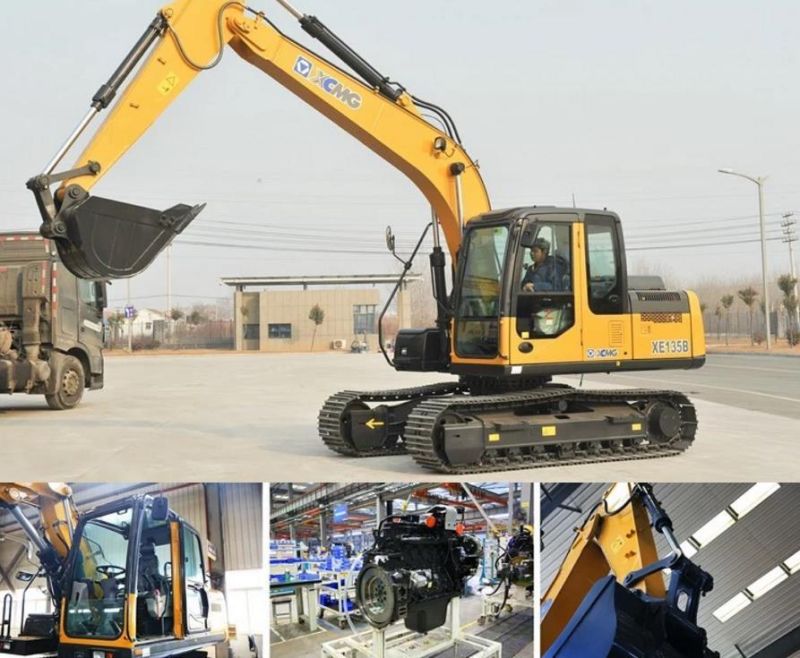

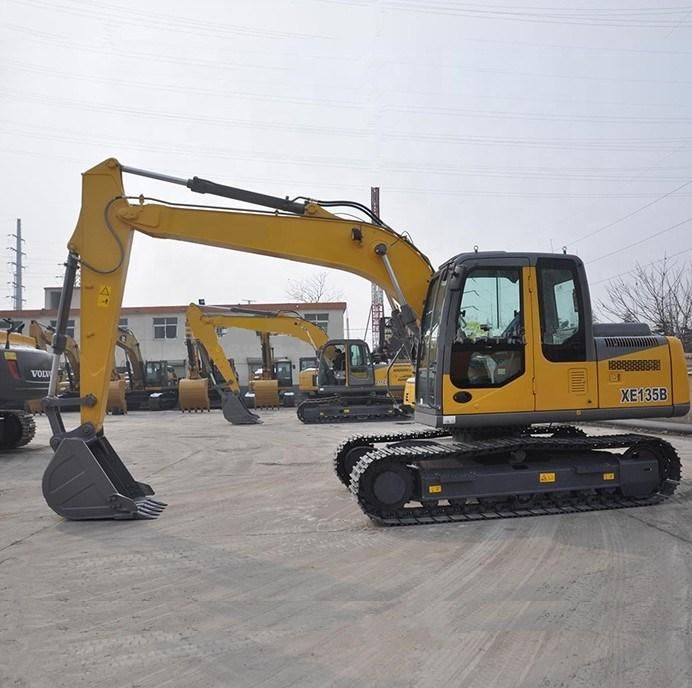

- Model NO.：XE135B
- Condition：New
- Operating Weight：13000kg
- Engine Model：Isuzu

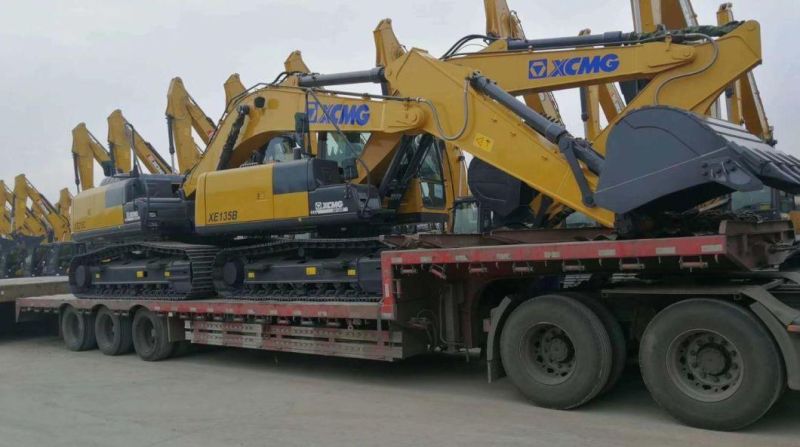

- Transport Package：Comply with Export Packaging Requirements
- Specification：7770*2512*2880mm
- Trademark：XCMG
- Origin：Xuzhou, Jiangsu, China
- HS Code：87059091
- Production Capacity：10000,Year
Description
EngineModel / BB-4BG1TRP No. of cylinders / 4 Output power kw/rpm 72.7/2200 torque/speed N.m 337.6/1600 Displacement L 4.329 Hydraulic system Main pump / 2 Rated flow of main pump L/min 2×123 Pressure of prime valve MPa 31.4/34.3 Pressure of travel system MPa 34.3 Pressure of swing system MPa 25 Pressure of pilot system MPa 3.9 Oil Capacity Fuel tank capacity L 250 Hydraulic tank capacity L 130 Engine oil capacity L 14 Appearance size Overall length mm 7770 Overall width mm 2512 Overall height mm 2880 Width of platform mm 2512 Length of crawler mm 3660 Overall width of chassis mm 2490 Width of crawler mm 500 Track length on ground mm 2910 Crawler gauge mm 1990 Clearance under counterweight mm 964 Min. ground clearance mm 478 Min. tail swing radius mm 1805 Height of track mm Working scope Max. digging height mm 8641 Max. dumping height mm 6181 Max. digging depth mm 5538 Max. vertical wall digging depth mm 4727 Max. digging reach mm 8296 Min. swing radius mm 2335 Worker Length of boom (Standard) mm 4600 Length of arm (Standard) mm 2510 Bucket capacity (Standard) m³ 0.52 Length of boom (Optional) m³ / Length of arm (Optional) m³ / Bucket capacity (Optional) m³ 0.4
Company profile
XCMG is a construction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2019, we rank No.1 in China and No. 5 in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment. Our other businesses include finance, leasing, and remanufacturing.
