• Model NO.：LW300KN
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Engine Power：92kw
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：84295100
• Production Capacity：1000,Year

Overview Product Description

Main parameters:

Rated load :3 tons
Bucket capacity :1.5-2.5 m3

Main configuration:
 * DEUTZ engine WP6G125E201(92kw)
 * Dry drive axle Optional parts: A/C/ 1.8m3 Bucket for rock/ 2.1m3 Lignt material Blade bucket/ 2.5m3 Lignt material Blade bucket / 1.8m3 Reinforced bucket.

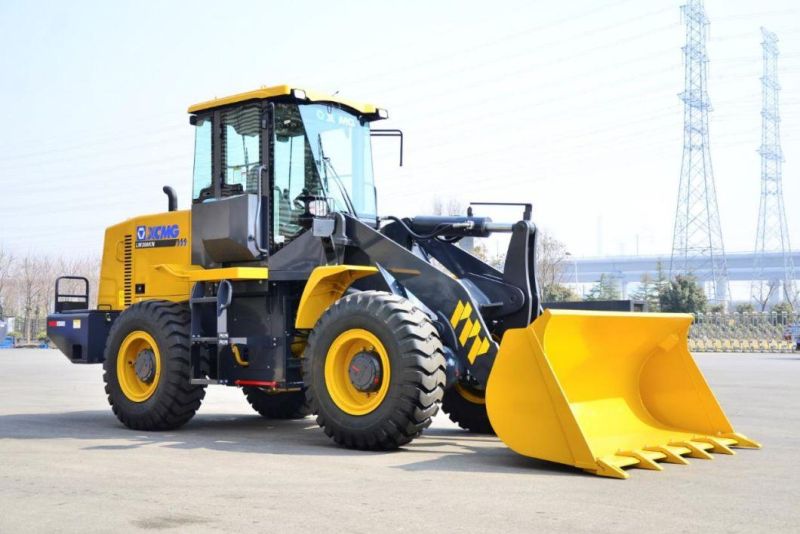

XCMG LW300KN is a classic high-end loader from XCMG, which is famous for its superior performance and adaptability. With the features of maturity and reliability of the old model, LW300KN is improved all round, and leads in the same kind of product.

The machine features high efficiency, strong power, long service life and comfortability, and is applicable to various conditions. Great strength Tilt cylinder bore of 160mm, enlarge the boom cylinder bore from 110mm to 125mm, and increase the boom lifting force by 29%.
 Product Parameters

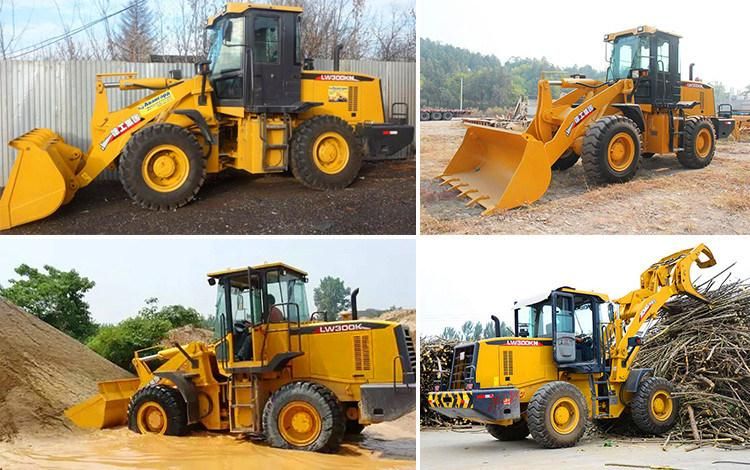

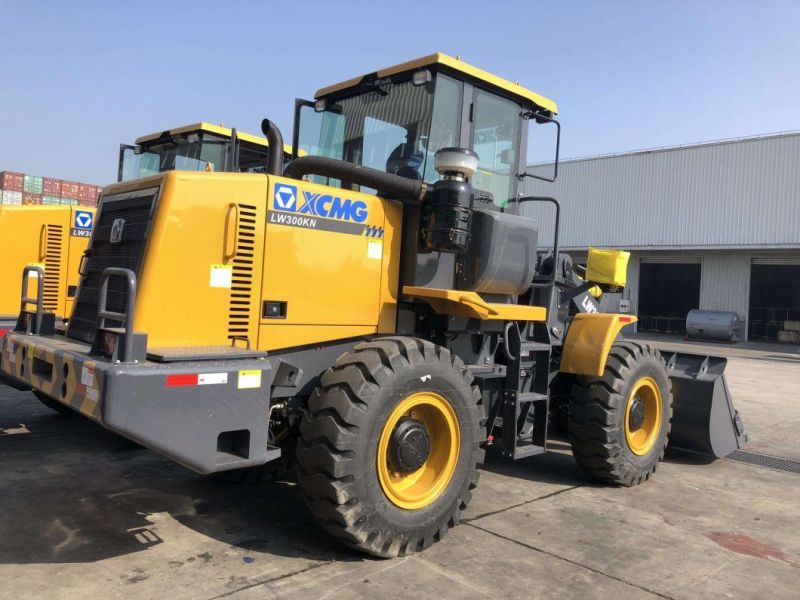

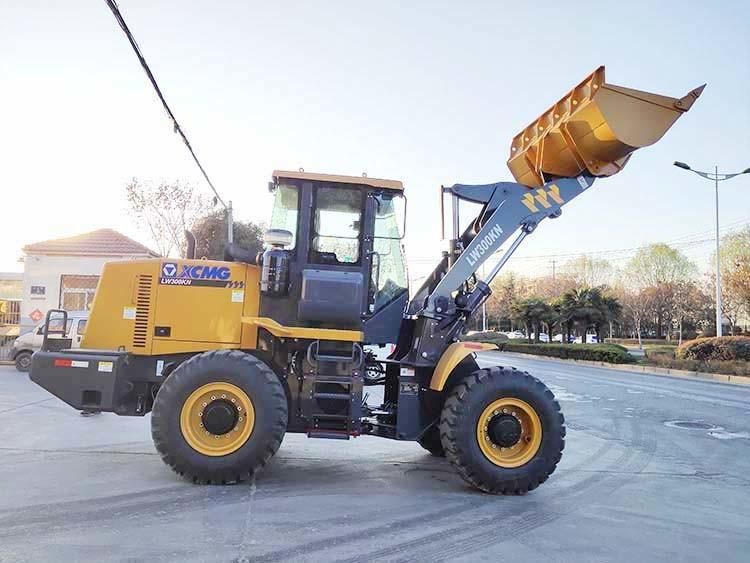

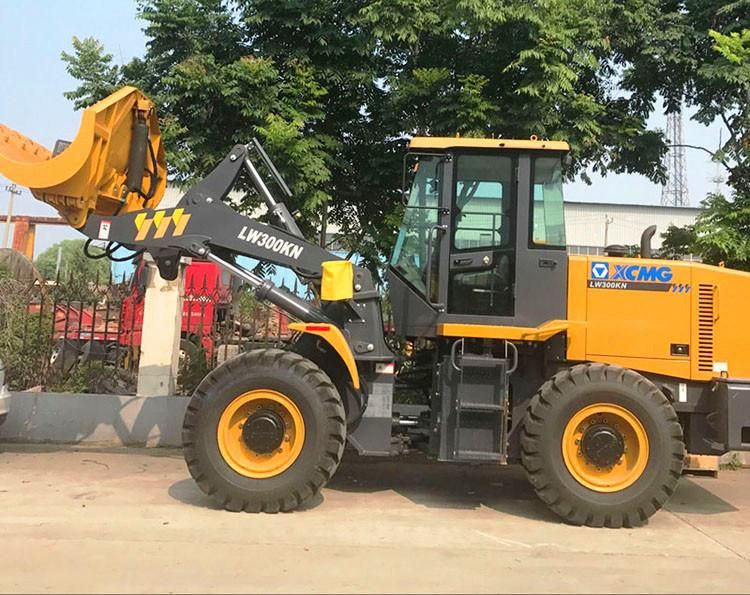

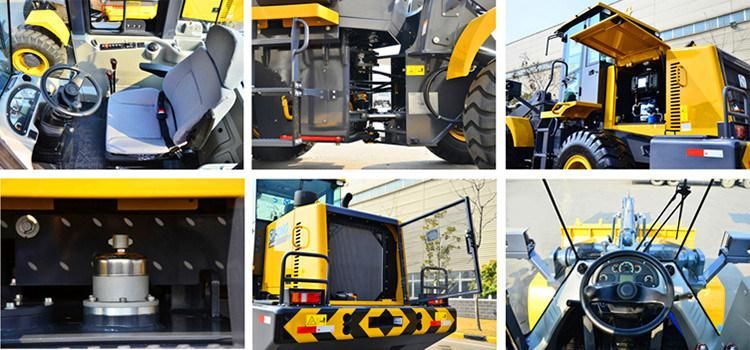

ltemSpecificationsunitRated load3000kgRated bucket capacity1.9m³Operation mass11000kgDumping height(from ground to main blade plate)2930 Dumping distance(from the front wheel to main blade plate)1010 Maximum breakout force130KNMaximum traction force100KNlifting time of swing arm5.6sTotal cycling time9.8sMinimum turning radius(outer edge of bucket)6020 Minimum turning radius(tire center)5170 Articulated angle38°Gradeability28°tire size17.5-25-12PR Overall demension of machine(L×W×H)7250×2482×3290 Engine modelYC6J125Z-T22 Rated power/rotate speed92/2000kW/r/minTravel speedGear I(F/R)0~15/20km/hGear II(F)0~40km/h Product Show

Company Profile



FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
