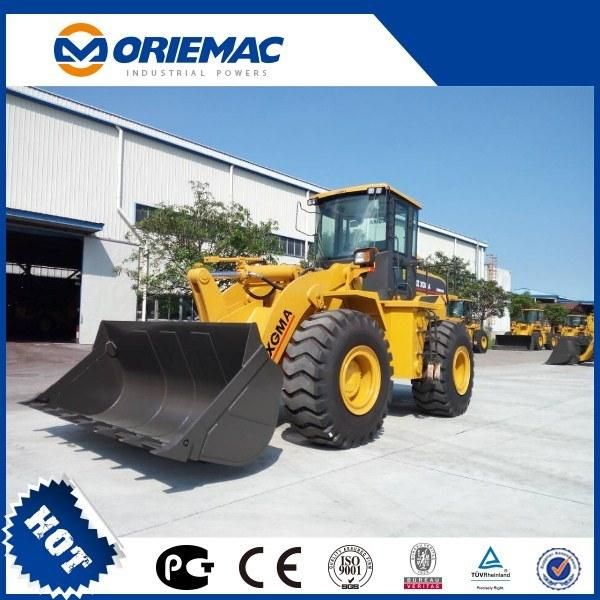

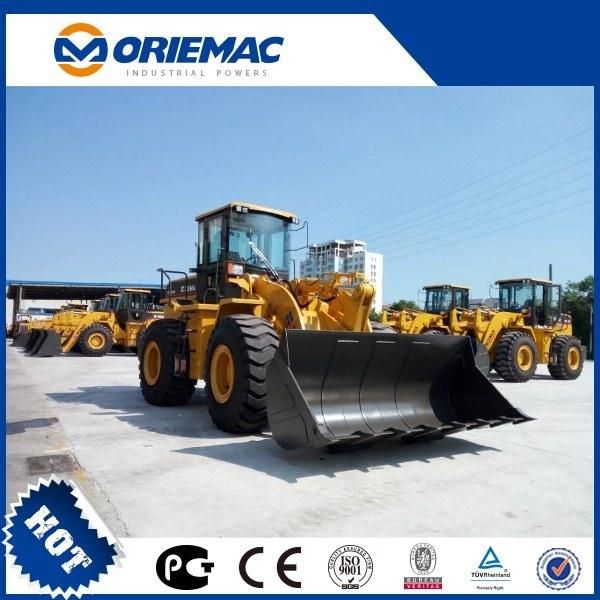

• Model NO.：XG935H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Dimension：6970*2245*3330 mm
• Bucket Capacity：1.4-3.0 M3
• Engine Model：Yc6j125z-T20,6btaa5.9-C130
• Usage：Universal Type
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Front Discharge
• Engine Power：162 Kw
• Fuel Comsumption Per Hour：225 , 237 G,Kw.H
• Max. Dumping Height：3060 mm
• Transport Package：Suitable Package for Shipment
• Specification：40HQ,Unit
• Trademark：XGMA
• Origin：Fujian, China
• HS Code：84295100
• Production Capacity：500 Set,Sets , Month

ManufacturerXGMAModelXG935HOverall length(mm)6970Overall height(mm)3330Overall width(mm)2245Wheel base(mm)2750Ground clearance(mm)356Tread(mm)1800Bucket Width (mm)2420Turn radius(mm)5280Min.Turn radius outside of bucket (mm)5860 3930Max. Dumping Height(mm)3060Dumping Reach(mm)1020Digging depth(mm)100 50   Engine modelYC6J125Z-T20/
       6BTAA5.9-C130Rated power (kw)92/97Fuel comsumption per hour(g/kw.h )225/237Rated speed (r/min)2200Max torque(N.m)500/580Operating Weight (Tonnes)10.8Rated Load(Tonnes)3.2Bucket capacity (m3)1.4-3.0Lifting time/Lifting, dumping and lowering(s)6/10.4Max Breakout force(KN)100Max.drawing force (KN)108Max. turning angle(°)±35°Climbing ability(°)≤ 30 °Fuel tank(L)140Hydraulic tank(L)160Working pressure of steering hydraulic system(MPa)13Working pressure of load hydraulic system(MPa)16Travel speeds(km/h)FORWARD 1ST0~12FORWARD 2ND0~40FORWARD 3RD FORWARD 4TH REVERSE 1ST0~16REVERSE 2ND Gear BoxXGAxleXGImplement pump132Distibuting valveYGDF-25-00-WXSteering Hydraulic systemBBZ5-500Steering pump90Tyre size17.5-25-12PRAir Conditioning/Anti-mist when idleing√Heating√Radio/Cassette√Bucket and arm raiseing (limit height) Device√Hydraulic Operation system√Seat Buckle√Head lamp √Reversing Alarm (Back vehicle)√ROPS/FOPS√
