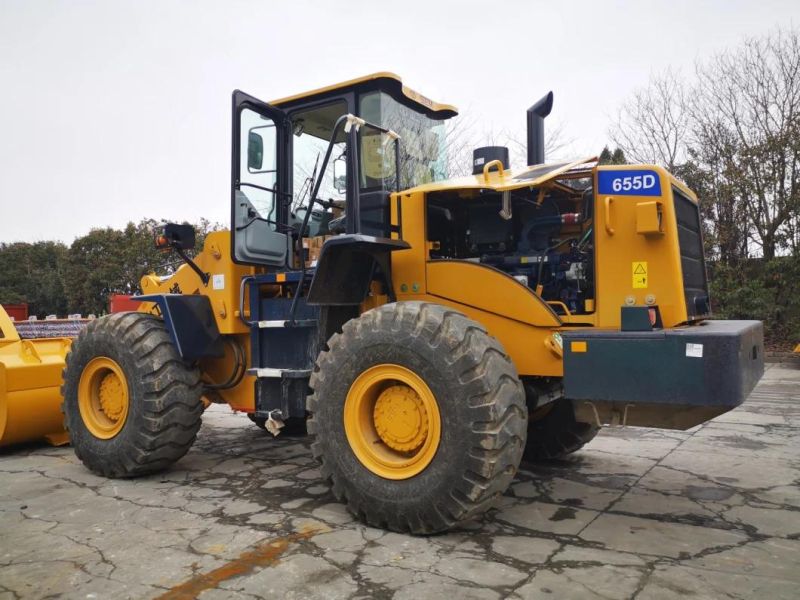

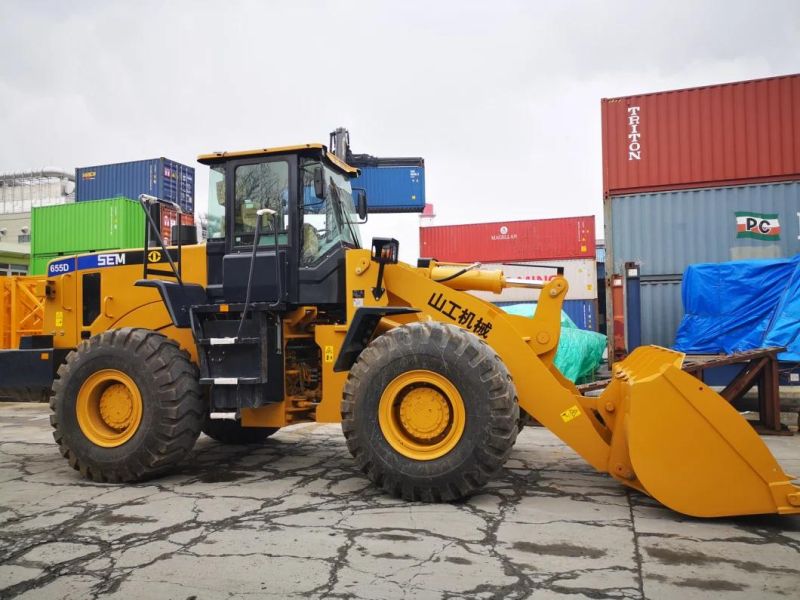

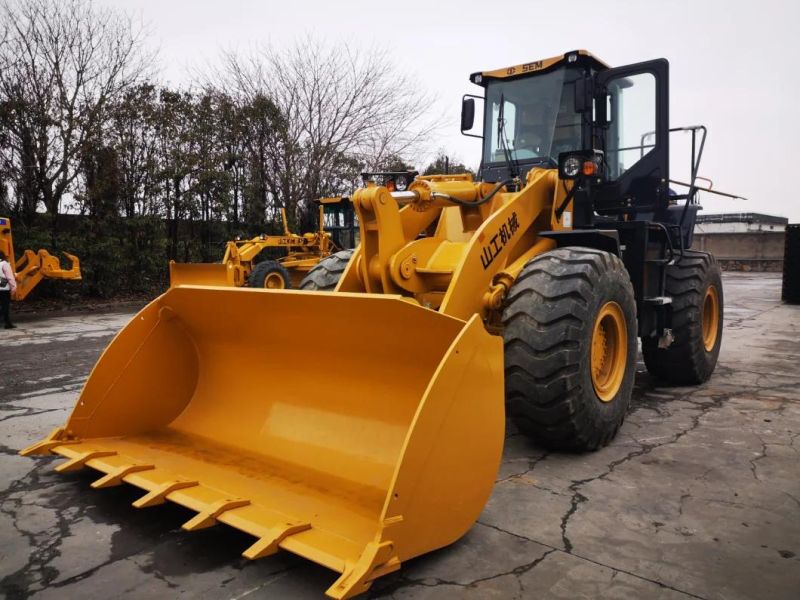

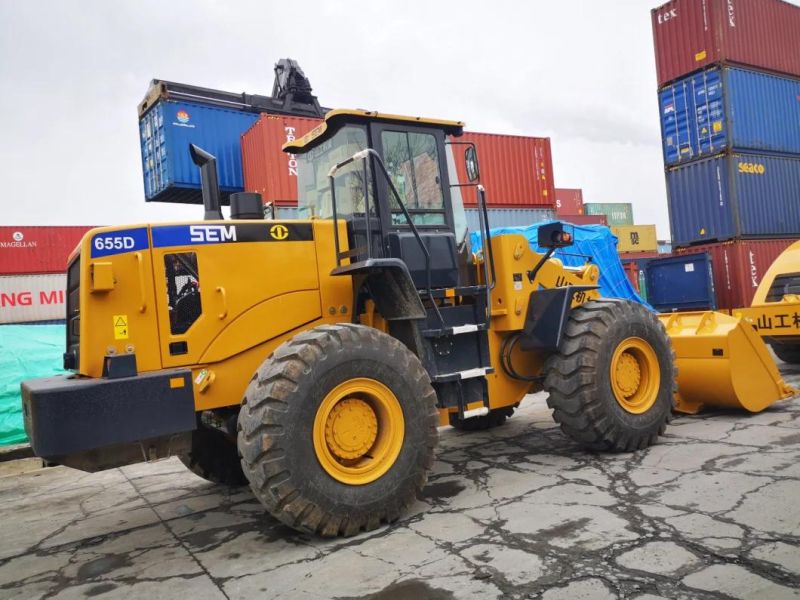

Sem655D China 5 Ton Articulated Mini Small Compact Tractor Front End Wheel Loader with CE
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Certification：TUV, UL, ISO, RoHS, CE, ISO9001: 2000
- Condition：New
- Rated Load：5 Ton
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：SEM655D
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Medium-sized Loader
- Dimension：8, 085*2, 963*3, 463 mm
- Bucket Capacity：2.7-4.5m3
- Engine Model：Wd10g
- Usage：Universal Type
- Scraper Type：Tractor-Scraper
- Load and Unload Method：Front Discharge
- Engine Power：162 Kw
- Rated Load Capacity：5 Tons
- Operating Weight：17500 Kg
- Transport Package：Suitable Package for Shipment
- Specification：Within 15days delivery
- Trademark：SEM
- Origin：Shandong, China
- HS Code：84295100
- Production Capacity：1000 Set,Sets , Month
Description
Basic Info.
Model NO. SEM655D Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Dimension 8, 085*2, 963*3, 463 mm Bucket Capacity 2.7-4.5m3 Engine Model Wd10g Usage Universal Type Scraper Type Tractor-Scraper Load and Unload Method Front Discharge Engine Power 162 Kw Rated Load Capacity 5 Tons Operating Weight 17500 Kg Transport Package Suitable Package for Shipment Specification Within 15days delivery Trademark SEM Origin Shandong, China HS Code 84295100 Production Capacity 1000 Set/Sets / MonthProduct Description
Sem655D China 5 Ton Articulated Mini Small Compact Tractor Front End Wheel Loader with CEEfficient Hydraulic System
- Single pump flow shared system.
- More efficiency and larger breakout force
- Perfect match between machine speed and hydraulic system to achieve high efficiency
- Joystick hydraulic control for easy and precise control
Operator Station
- Premium operator station with big space and superior visibility
- Patented mount provides less noise and more comfort
- Adjustable suspension seat
- Sliding side window and AC with fresh air circulation provide operator comfort
- Single lever shifting is flexible and convenient
- Adjustable air flow outlet delivers better defrost performance
Reliable Drivetrain
- Countershaft transmission with upgraded core components provides high reliability
- Large rim-pull in 1st gear and higher speed in 2nd gear provide high efficiency for load and carry applications
- Clutch cutoff selection switch ensures stable and safe operation
- Simply Torque convert and efficiency is high
- Shift smooth and comfortable
Advanced Cooling System
- High efficiency cooling package
- Shock pad mounts ensure reliability under severe applications
Solid Structure
- Structures undergo Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to ensure durability
- Performance Series (PS) buckets improve loading capability
Serviceabilityest ports are standard
- Big angle engine hood side open door provides easy service access
- Torque convertor is isolated from transmission making it easy to service
Safety
- Safety design complies with all regulatory requirements
- Imported Production System (CPS) leveraged in manufacturing process
- 3-point touching design provides convenient operator entering to cabin
- Backup alarm ensures machine safety
Machine Applications
- Multiple work tools are available for selection
Technical parameters
| Model | ||
|---|---|---|
| Model | 655D - Chinese engine | 655D - Imported engine |
| Main Specifications | ||
| Rated Payload | 5,000 kg | 5,000 kg |
| Operating Weight with Standard Bucket | 16,800 kg | 16,700 kg |
| Bucket Capacity | 2.7-4.5 m³ | 2.7-4.5 m³ |
| Wheel Base | 3,200 mm | 3,200 mm |
| Overall Dimension | 8,085*2,963*3,463 mm | 8,085x2,963x3,463 mm |
| Operating Specifications | ||
| Breakout Force | 168 kN | 168 kN |
| Dump Clearance | 3,058 mm | 3,058 mm |
| Articulated Angle | 38±1 ° | 38±1 ° |
| Transmission | ||
| Transmission Type | Power shift Countershaft | Power shift Countershaft |
| Transmission Gears | F4/R4 | F4/R4 |
| Torque Converter Type | Sigle stage 3 elements | Sigle stage 3 elements |
| Forward I/Reverse I | 7.8/7.8 km/h | 7.8/7.8 km/h |
| Forward II/Reverse II | 15/15 km/h | 15/15 km/h |
| Forward III/Reverse III | 22/22 km/h | 22/22 km/h |
| Forward IV/Reverse IV | 39/39 km/h | 39/39 km/h |
| Maker & Type | TR200 | TR200 |

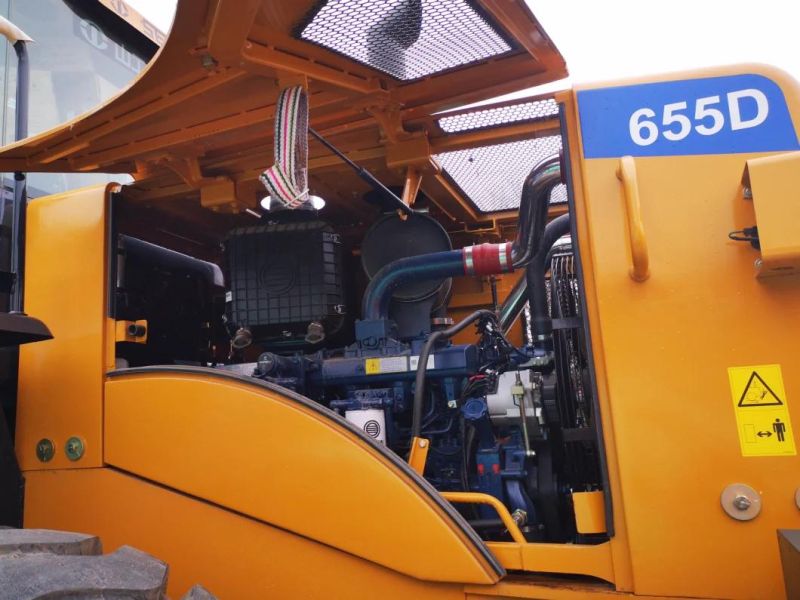

| Engine | ||
| Engine Model | WD10G | 6LT9.3 |
| Rated Power | 162 kW | 162 kW |
| Rated Speed | 2,000 r/min | 2,000 r/min |
| Displacement | 9.726 L | 9.242 L |
| Implement Hydraulic System | ||
| Implement System Type | Twin pump flow merging hydraulic system | Twin pump flow merging hydraulic system |
| Hydraulic Cycle Time | 9.5 s | 9.5 s |
| System Pressure Setting | 17 Mpa | 17 Mpa |
| Raise | 5.13 s | 5.13 s |
| Brake System | ||
| Service Brake | Dry & caliper, air to oil control | Dry & caliper, air to oil control |
| Parking Brake | Drum type shoe brake, spring applied & oil released | Drum type shoe brake, spring applied & oil released |
| Steering System | ||
| System Type | Flow amplifying | Flow amplifying |
| Steering Pump Type | Gear pump | Gear pump |
| System Pressure Setting | 16 Mpa | 16 Mpa |
| Steering Angle (L/R) | 38±1 ° | 38±1 ° |
| Tires | ||
| Size | 23.5-25 | 23.5-25 |
| Type | Bias | Bias |
| Layer | 16 | 16 |
| Textured Type | L3/E3 | L3/E3 |
