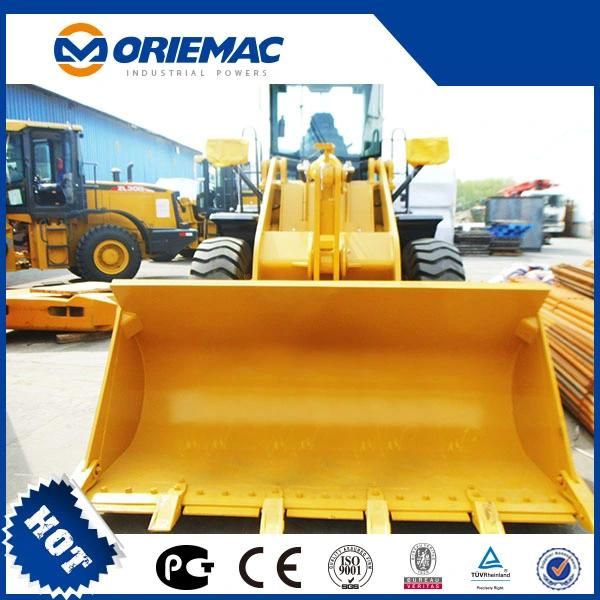

Wheel Loader/Front Loader 9ton/9000kg Oriemac Lw900K
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：ISO9001: 2000
- Condition：New
- Rated Load：9ton
- Walking Mode：Wheeled
- Type：Large Loader
- Engine：Cummins Qsm11(Tier3)
Base Info
- Model NO.：LW900K
- Rated Bucket：5 M3
- Dimension(Long * Breadth * High)：11280*3886*4250mm
- Power：250kw(335HP)
- Load and Unload Method：Front Discharge
- Transport Package：Nude, Suitable for Shiping
- Specification：ISO
- Trademark：Oriemac
- Origin：Jiangsu Xuzhou
- Production Capacity：1000sets,Month
Description
TransmissionType Planetary gear Travel speed km/h Drive system 4WD Front wheel Fixed, full floating type Rear wheel Central pin bearing, full floating type, 26° swing Reduction gear Spiral bevel gear Differential gear Common gear Final drive Planetary gear, first stage reduction Service brake Full hydraulic wet type disc brake (4 wheels) Parking brake Wet type disc brake Emergency brake Also used as parking brake Type Articulation, full hydraulic power steering Steering angle bidirectional 40° Min. turning radius(by outer wheel center) 6200mm Steering system Hydraulic pump Gear pump Max. flow 168ltr/min Pressure of safety valve 19MPa Steering cylinder Type Double acting piston type Cylinder amount 2 Cylinder bore × stroke 115mm×445mm Loading control Hydraulic pump Gear pump Rated flow 294+168I/min Pressure of safety valve 20MPa Operating cylinder Type Double acting piston Cylinder amt. - cylinder bore × stroke: Boom 2-180mm×880mm Bucket 1-220mm×590mm Control valve Single handle Control device Boom Lifting, retaining, descending, floating Bucket Back inclination, retaining, dumping
