Haiqin Brand Smart Three Wheel Cane Loader (HQ4200) with Cummins Engine

Weifang Haiqin Top Machinery Co., Ltd.
  • Type:Wheel Excavator
  • Usage:Special Excavator
  • Bucket:Grab Shovel
  • Transmission:Hydraulic Transmission
  • Drive Type:Internal Combustion Drive
  • Bucket Capacity:1.0~1.5m³

Base Info

  • Model NO.:HQ4200
  • Size:Medium-Sized
  • Certification:ISO9001: 2000, SGS
  • Condition:New
  • Use:Loading and Unloading Sugarcane
  • Engine:Cummins Engine
  • Power:74kw
  • Warranty:1 Year
  • Transport Package:1 Unit in One Hq40 Container
  • Specification:CCC, ISO, SGS
  • Trademark:Haiqin
  • Origin:Shandong, China
  • HS Code:84295100
  • Production Capacity:5000 Units,Year

Description

Basic Info.

Model NO. HQ4200 Size Medium-Sized Certification ISO9001: 2000, SGS Condition New Use Loading and Unloading Sugarcane Engine Cummins Engine Power 74kw Warranty 1 Year Transport Package 1 Unit in One Hq40 Container Specification CCC, ISO, SGS Trademark Haiqin Origin Shandong, China HS Code 84295100 Production Capacity 5000 Units/Year

Product Description

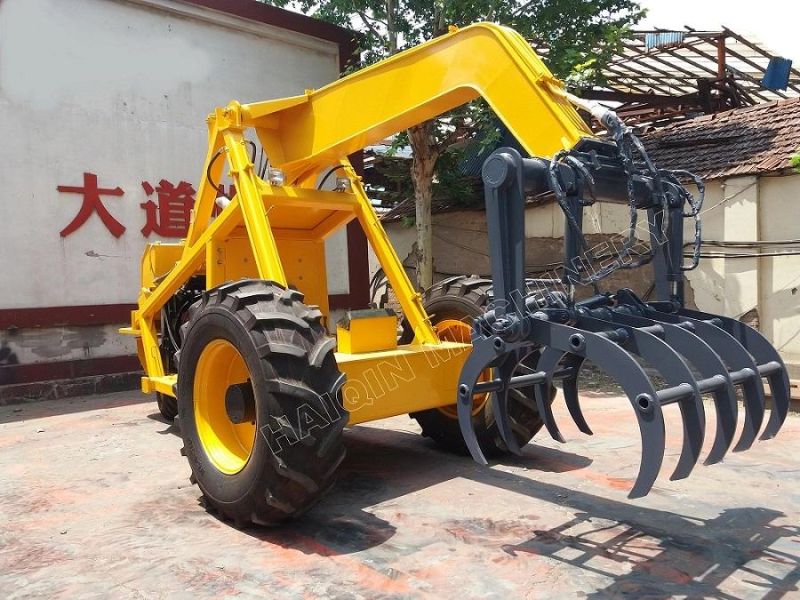

 Cane Loader (HQ4200) features:

1,Can rotating 360 degrees, the working space is small .

2, Climbing ability is strong, suitable for different working palces operations.

3, Working table, water temperature, oil temperature, current, when working at a glance. Use the brand-name hydraulic parts, long life, strong power, fast working.

4, Walking stack, the claw can meet before grasping side loading, greatly enhance the work efficiency.

5, Using hydraulic walking, each operation action foot hand with the completion, improve work efficiency, each machine can replace a large number of human work intensity.

 Cane Loader (HQ4200)  specifications :

Rated load800kg

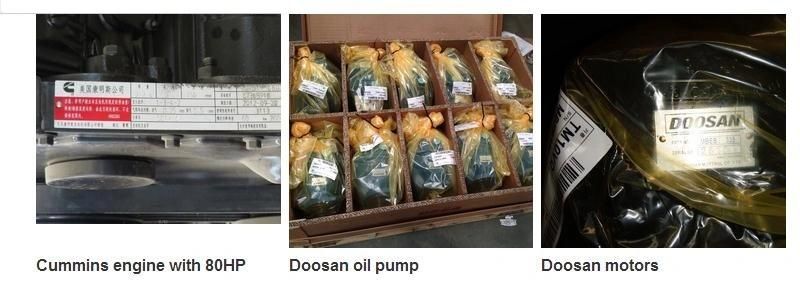

EngineCummins 4BT3.9
Power74KW
Working pumpK3V63 kawasaki
Travel motorTM-18 South Korea Doosan
Max dumping height4500mm
Max speed8km/h
Min rotary radius3600mm
Size6400*2600*2580mm
Mini ground clearance500mm
Distance between tire1790mm
Distance between axle3100mm
Max grab size1200mm
Min hold circle size610mm
Machine tractionHydraulic motor

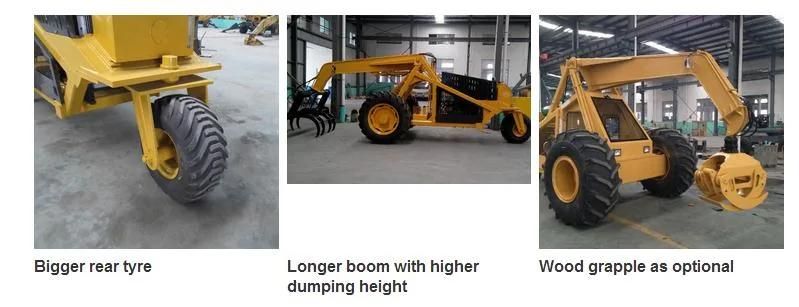

Front tire14.9-30
Rear tire400/60-15.5
Brake systemHydrostatic brake
