Single Drum Vibratory Roller From 7tons to 25tons
Wuhan Kudat Industry & Trade Co., Ltd.- Type：Road Roller
- Working Method：Steel Wheel
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Slot Grind
- Compaction Depth：35cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：YZ7G, LSS1001,1901,2501
- Travel Speed：30cm,s
- Certification：ISO 9001:2000, ISO 9001:2008
- Payload：12t
- Transport Package：by Sea Required
- Specification：ISO, CE
- Trademark：kudat
- Origin：China
- HS Code：84294011
- Production Capacity：50, 000 PCS,Year
Description
Basic Info.
Model NO. YZ7G, LSS1001/1901/2501 Travel Speed 30cm/s Certification ISO 9001:2000, ISO 9001:2008 Payload 12t Transport Package by Sea Required Specification ISO, CE Trademark kudat Origin China HS Code 84294011 Production Capacity 50, 000 PCS/YearProduct Description

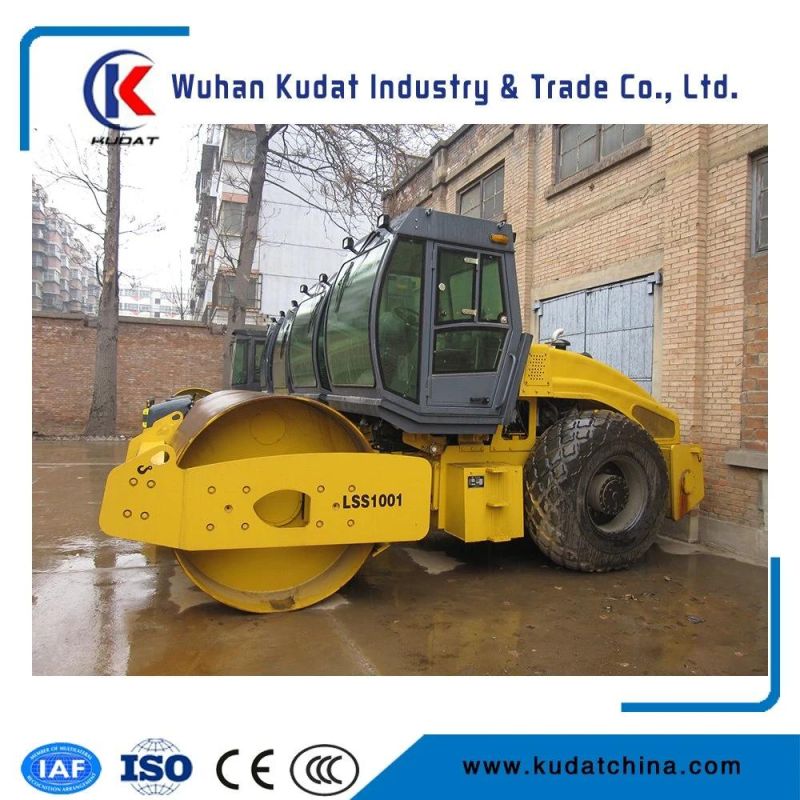

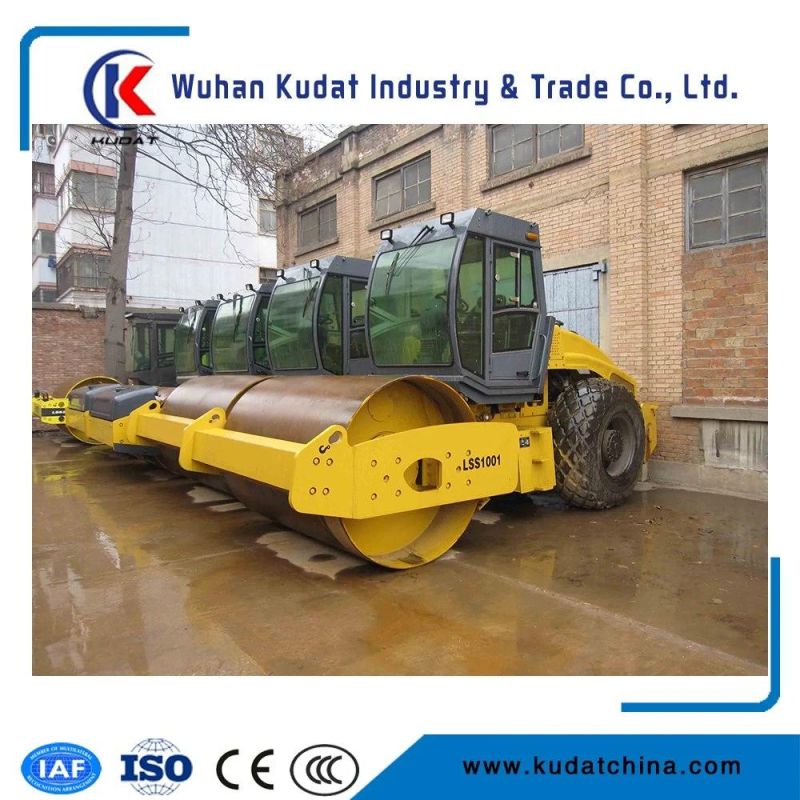

LSS2501/2301/2101/1901/1701 Single Drum Vibratory RollerScope of application
Heavy duty vibratory rollers are suitable for compaction of non-cohesive materials such as gravel,crushed stone,sand-macadam mixture, sandy soil and rock filling etc.On base course, sub-base course and embankment fill construction etc. which are ideal equipment for high-class highway,railway,airport,harbor,dam and large-scale industrial ground etc.
Features
1.High powerful D6114 Water cooled turbocharged diesel engine; Engine cooling air-path structure and large capacity of fuel tank.
2.Heavy-duty gearbox; Driving axle with greater braking torque .
3.Dual amplitude setting of vibration; New types of vibration device and drum travel bearing structure.
4.Modernized style overall appearance; Driver's cabin with T type angular glasses.
5.Joint-moving mechanism of the clutch pedal with engine throttle; Adjustable instrument desk with liquid crystal instrument panel.
| Model | LSS2501 | LSS2301 | LSS2101 | LSS1901 | LSS1701 | |
| Operating mass | kg | 25000 | 23000 | 21000 | 19000 | 17000 |
| Static linear load | N/cm | 575 | 529 | 483 | 437 | 391 |
| Vibration amplitude | mm | 2.0/1.0 | 2.0/1.0 | 2.0/1.0 | 2.0/1.0 | 2.0/1.0 |
| Vibration frequency | Hz | 28 | 28 | 28 | 28 | 28 |
| Centrifugal force | kN | 400/260 | 380/240 | 360/220 | 340/200 | 320/180 |
| Travel speed | km/h | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| Gradeability | % | 35 | 35 | 35 | 35 | 35 |
| Turning radius | mm | 7500 | 7500 | 7500 | 7500 | 7500 |
| Drum width | mm | 2130 | 2130 | 2130 | 2130 | 2130 |
| Drum diameter | mm | 1600 | 1600 | 1600 | 1600 | 1600 |
| Wheelbase | mm | 3430 | 3430 | 3430 | 3430 | 3430 |
| Ground clearance | mm | 445 | 445 | 445 | 445 | 445 |
| Diesel engine model | D6114 | D6114 | D6114 | D6114 | D6114 | |
| Diesel engine power | kW | 132 | 132 | 132 | 132 | 132 |
| Overall dimensions | mm | 6600×2300×3000 | 6600×2300×3000 | 6600×2300×3000 | 6600×2300×3000 | 6600×2300×3000 |
