High Quality Portable Concrete Floor Leveling Machine with Honda Gx35
Jining Furuide Machinery Manufacturing Co., Ltd.- Type：Compacting Equipment
- Machining Process：Concrete Vibratory Screed
- Certification：ISO9001: 2000, CE
- Condition：New
- Usage：Concrete Floor Leveling Machine
- Engine：Honda Gx35
Base Info
- Model NO.：FED-35
- Power：1.6HP
- Working Depth：260mm
- Working Width：1-3m
- Transport Package：Wooden Case
- Specification：IS09001
- Trademark：FURD
- Origin：China
- HS Code：8479102100
- Production Capacity：2000 Units,Month
Description
Basic Info.
Model NO. FED-35 Power 1.6HP Working Depth 260mm Working Width 1-3m Transport Package Wooden Case Specification IS09001 Trademark FURD Origin China HS Code 8479102100 Production Capacity 2000 Units/MonthProduct Description
FED-35 High Quality Portable Concrete Floor Leveling Machine with HONDA GX35Concrete Vibratory screed is used to smooth concrete and cement in a small area,
To make the sand and cement compaction with the 1-5m aluminum magnesium alloy blade.
Features:
1. Specially design, hardened aluminum blade ensuring a smoother finish than conventional screeds
2. Heavy rubber mounts to reduce the vibration level on the handle.
3. The rounded ends of the blade make it easy to go around obstacles
4. The tilt-up stand keeps the engine out of concrete or off the ground obstacles
5. One piece casting body easy connect to engine
6. Emergency stop switch available
7. Easily changed blades
Technical Parameters:
Model | F ED -3 5 |
engine model | Honda petrol GX35 |
power | 1.6hp |
Max rotate speed | 5200rpm |
oil tank | 0.65L |
influence depth | 100mm |
screed length | 1-4m |
Net weight | 19.5kg |

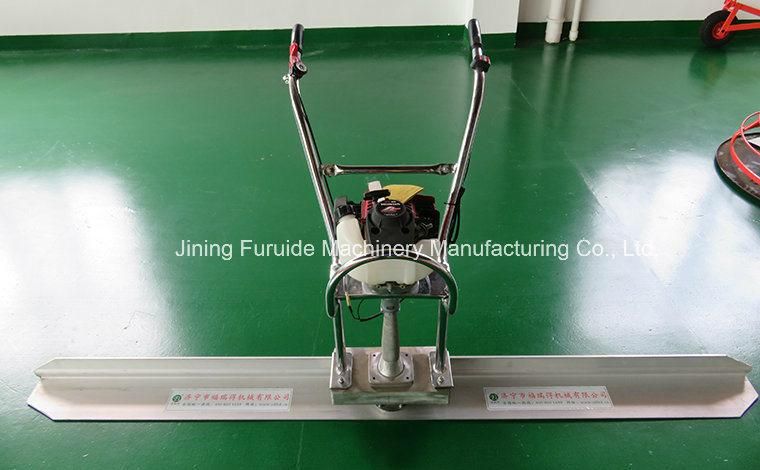

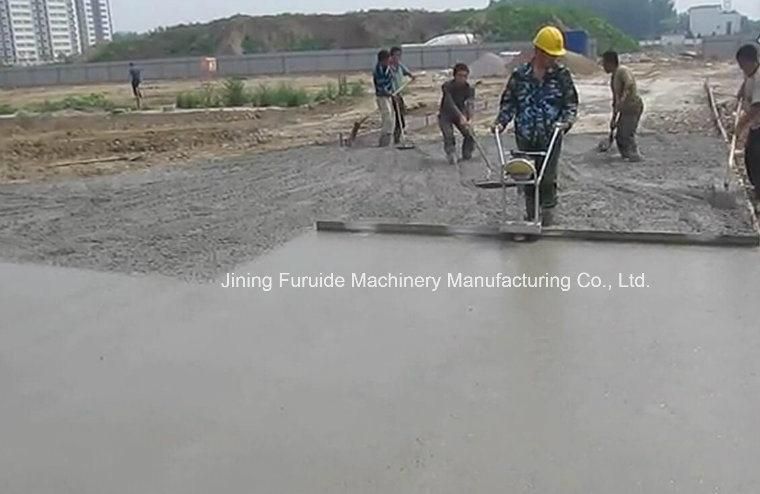

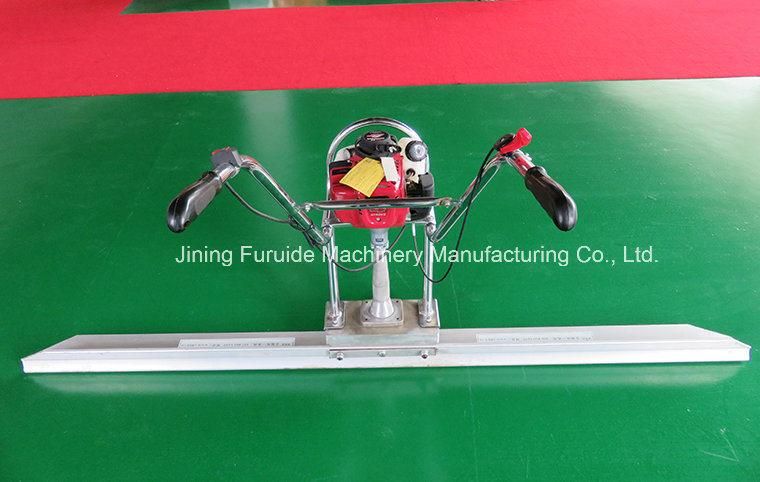

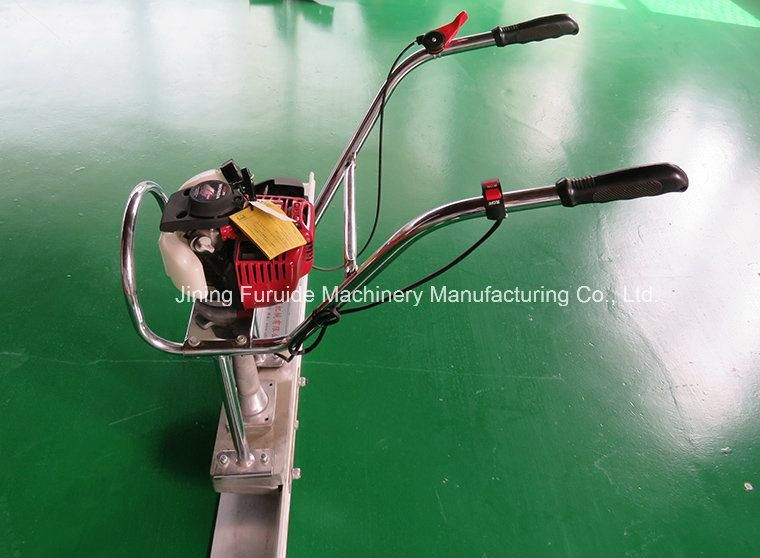

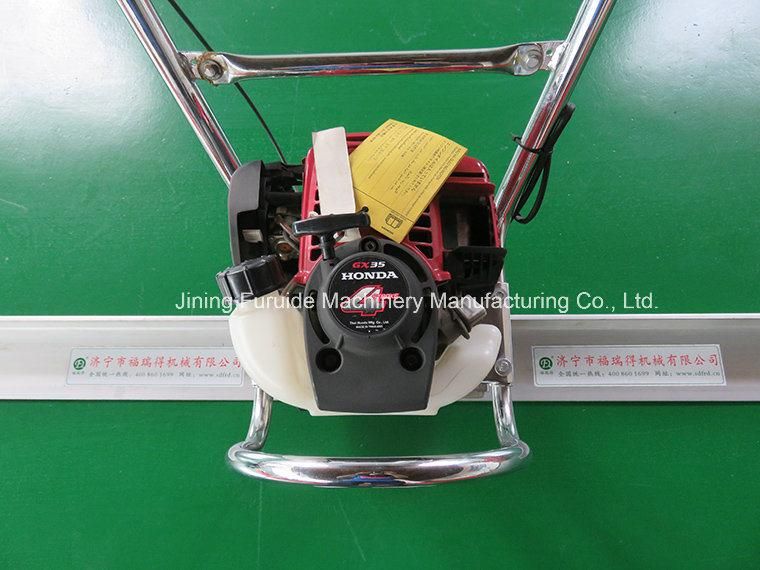

Figure Photos:
