• Model NO.：M910
• Type：Small Loader
• Size：Compact Small Loader
• Price：Good Wholesale Price
• Engine：Diesel Perkins,Yanmar,Chinese
• Rated Power：30HP, 40HP, 50HP, 60HP, 70HP, 80HP
• Rated Loading Capacity：1ton, 1.5ton, 2 Ton, 2.5ton, 3 Ton
• Weight：2000kg, 3000kg, 3500kg, 5000kg
• Max. Lifting Height：3000mm, 4000mm, 5000mm, 6000mm
• Chassis Type：Articulated Wheel Loader
• Boom Type：Telescopic Boom
• Attachments Available：Pallet Fork, Bucket, Grapple, Hay Fork, Backhoe...
• Loader Usage：Farming, Construction, Gardening, Landscaping
• Attachments Changing：Hydraulic Quick Hitch
• Warranty：1 Year
• After Sales Service：Free Spare Parts, Technical Support
• Color：Yellow, Red, White, Green, Customize
• Transport Package：Container
• Specification：1200kg load capacity, 3000mm lifting height
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8429510000
• Production Capacity：800 Sets,Year

M910 M915M920Dimension with cabin (LxWxH)2690x1300x2285mm3400x1500x2300mm3650x1500x2350mmMax.lifting height (boom retract) 2512mm3000mm3200mmMax.lifting height (boom extend) 3030mm3562mm3900mmPulling force12kN18kN19kNBucket capacity0.5cbm0.8cbm1 cbmMax. loading capacity1000kg1500kg2000kgMin. turning radius2120mm2800mm3100mmTurning angle45⁰45⁰45⁰Min. ground clearance268mm330mm330mmSpeed0-10 km/h0~12~24km/h, two speed0~12~24km/h, two speedOperating weight1850 kg2300kg2600kgStandard tire26X12-1231X15.5-1531X15.5-15Tire pressure2.8 bar2.8 bar2.8 barOil tank capacity45L80L80LPressure190bar190 bar190barWorking oil flow33.5L/minx241L/min x 250L/min x 2Tracking oil flow78L/min120L/min120L/minOil model(mineral oil)L-HL46L-HL46L-HL46Fuel tank capacity30L42L52LBattery60Ah, 12V60Ah, 12V60Ah, 12VEnginePerkins/YanmarPerkins/Yanmar/KohlerYanmar/Kohler/ChineseRated power33hp50hp68hp-74hp
Detailed images:

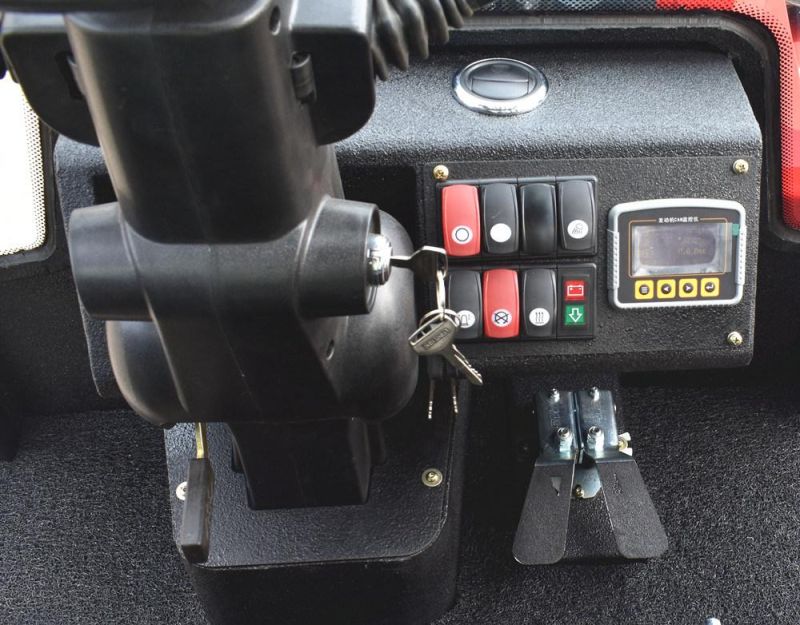

Inside cabin

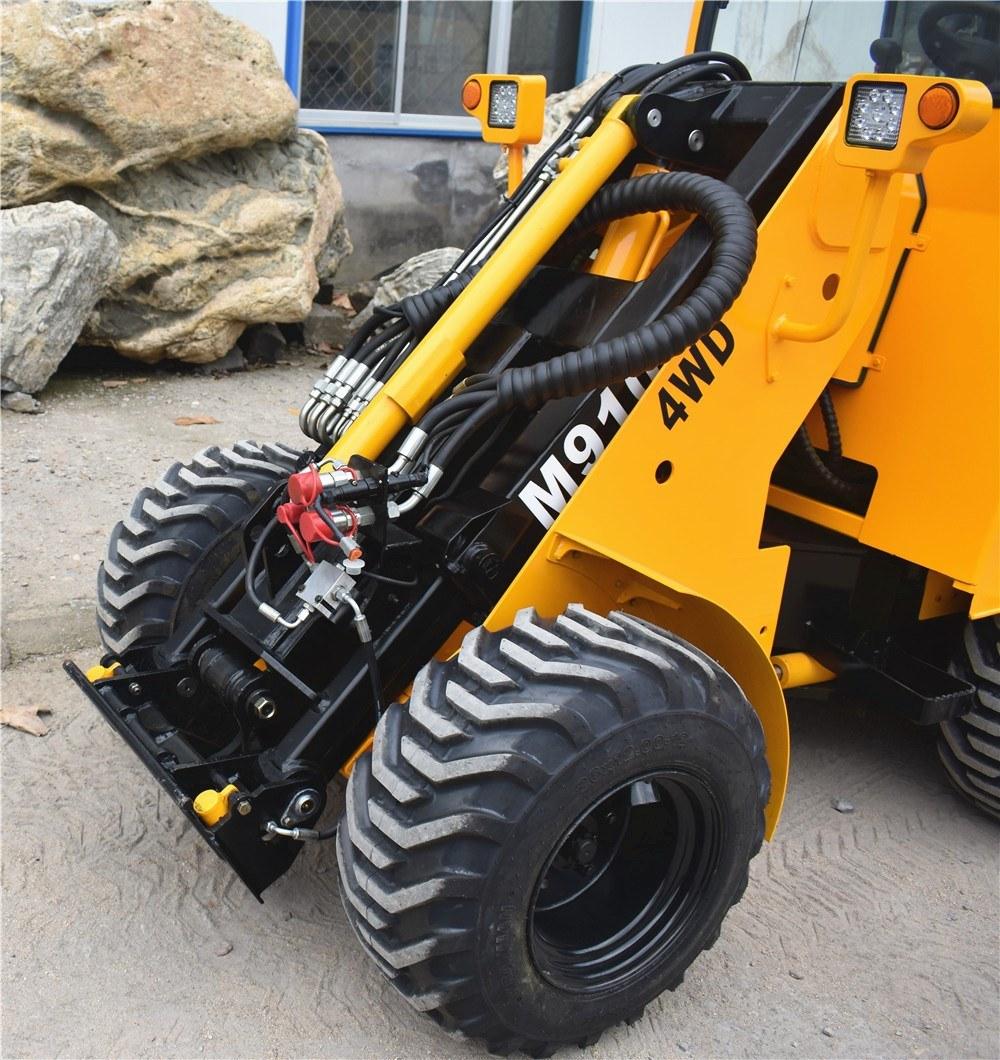

Telescopic boom


Tipping cabin

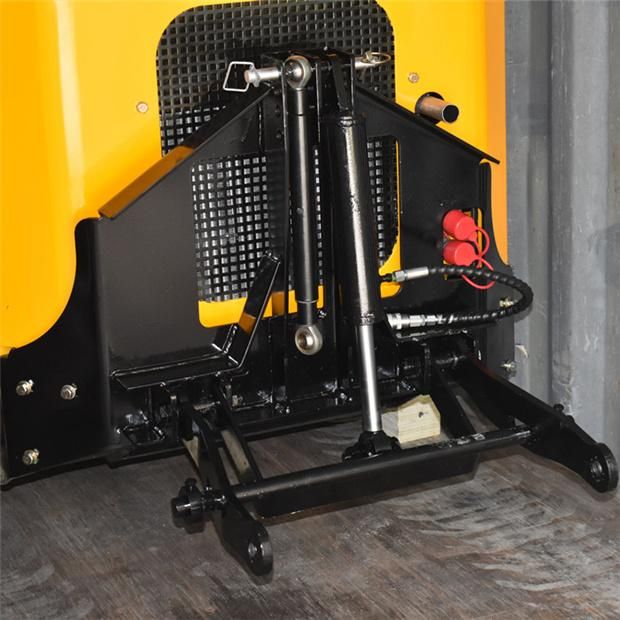

Rear hydraulic output and 3 point hitch

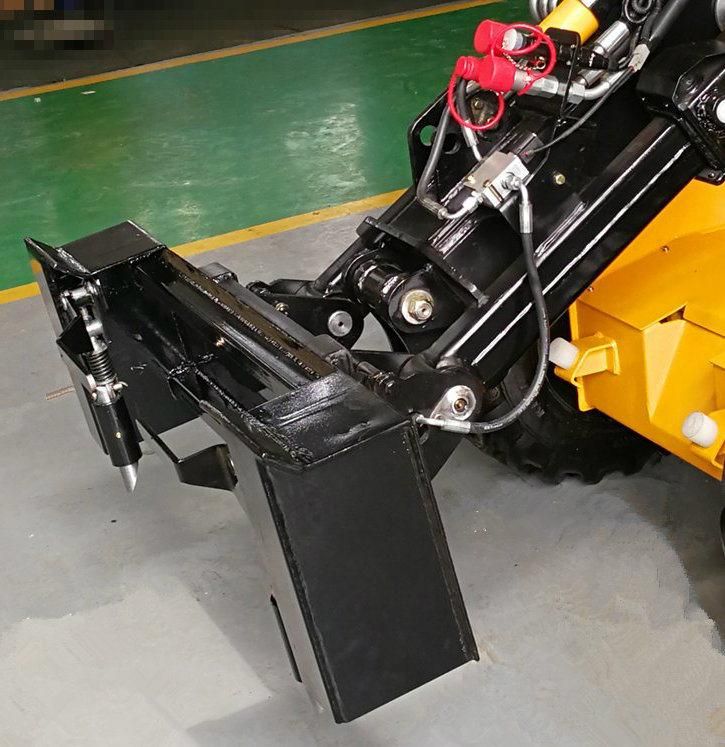

Bobcat type skid steer loader adapter plate (optional). Customers who had some bobcat attachments can choose this option to save money buy new ones


 APPLICATION:

Loader+Tractor, one Multi-purpose helper for globle customers

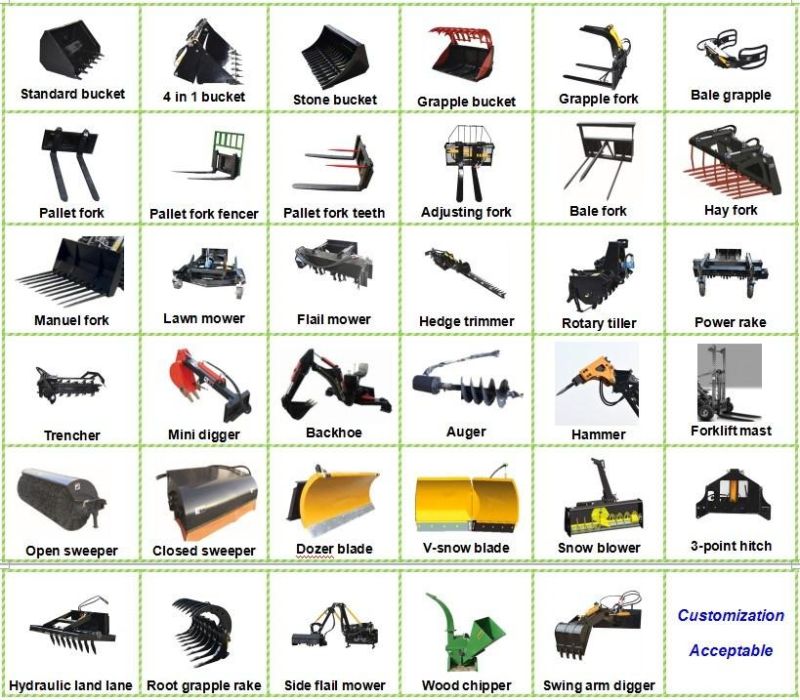

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.

Rear part is tractor, with hydraulic output and 3-point hitch, for rotary tiller, trailer, etc.

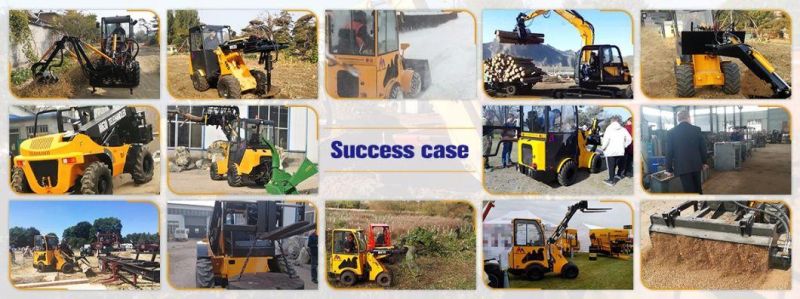

STEEL CAMEL series wheel loaders are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.

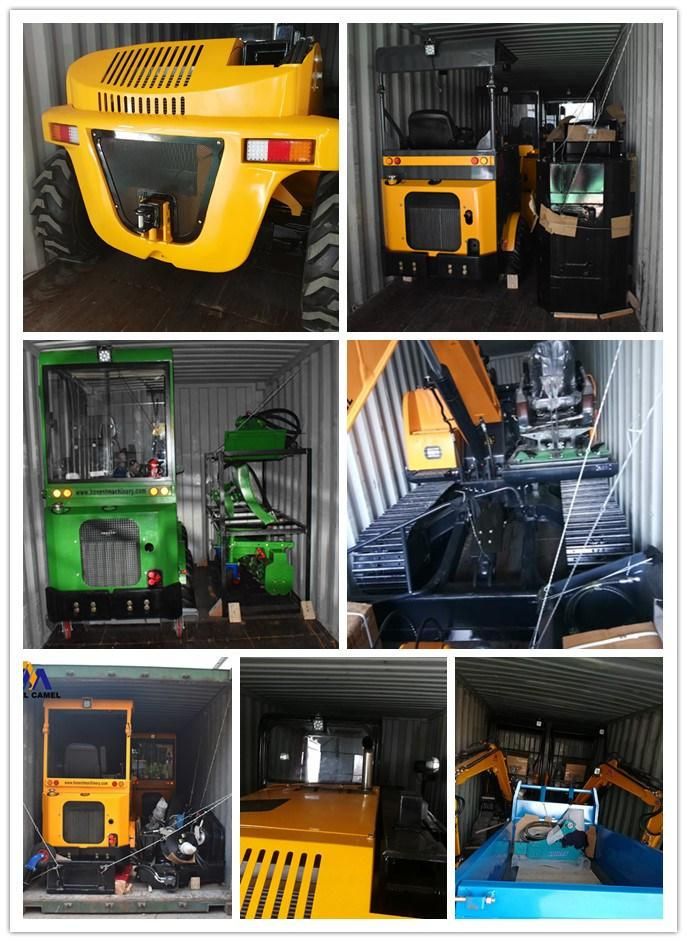

LOADING CONDITION:

Till now STEEL CAMEL products, telehandlers, wheel loaders, excavators, attachments etc. have been servicing customers in many countries, like Germany, Russia, Poland, UK, Argentina, Australia, USA, Canada, Indonisia, Spain......



Our Service:
Pre-Sales Service:
 After Sales Service:* Inquiry and consulting support.
* Oversea sample testing support.
* Visiting our Factory.
* Transporting from factory to door* Training how to instal the machine,
* Training how to use the machine.
* Engineers available to service machinery overseas.
* Warranty and whole workling life service

CONTACT US:With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters. Anna Guan/Marketing director

Shandong Honest Machinery Co., Ltd
