• Model NO.：making machine
• Cutter Material：Cr12 Mould Steel with Quench Treatment
• Rollers Material：No.45 Forged Steel with Hard Chrome
• Operation Language：English or as Per Client`S Required
• Main Power：7.5kw
• Transport Package：1*40gp Container for One Machine
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：29 Sets,Month

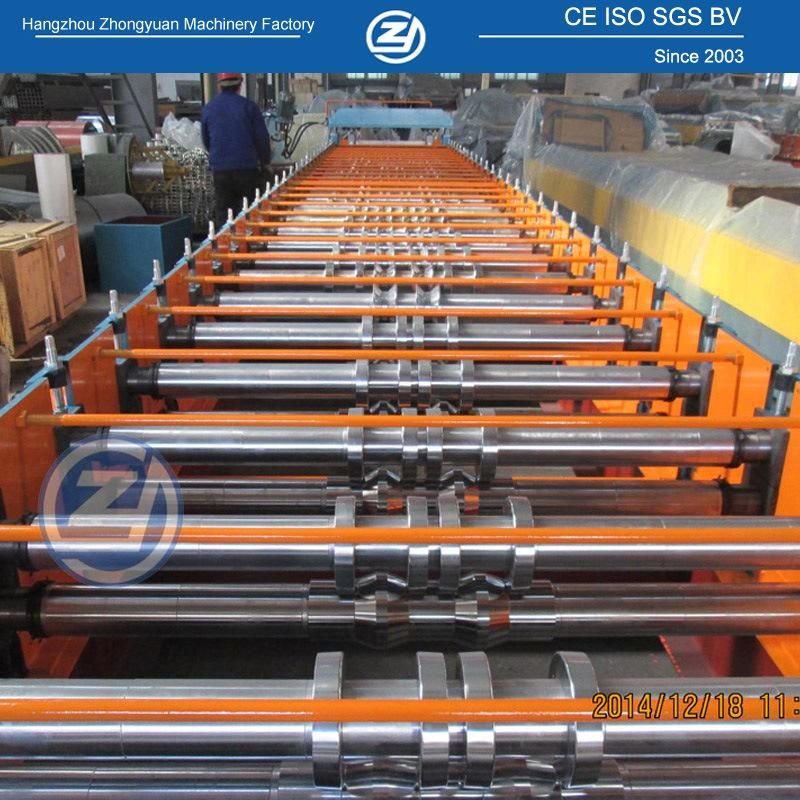

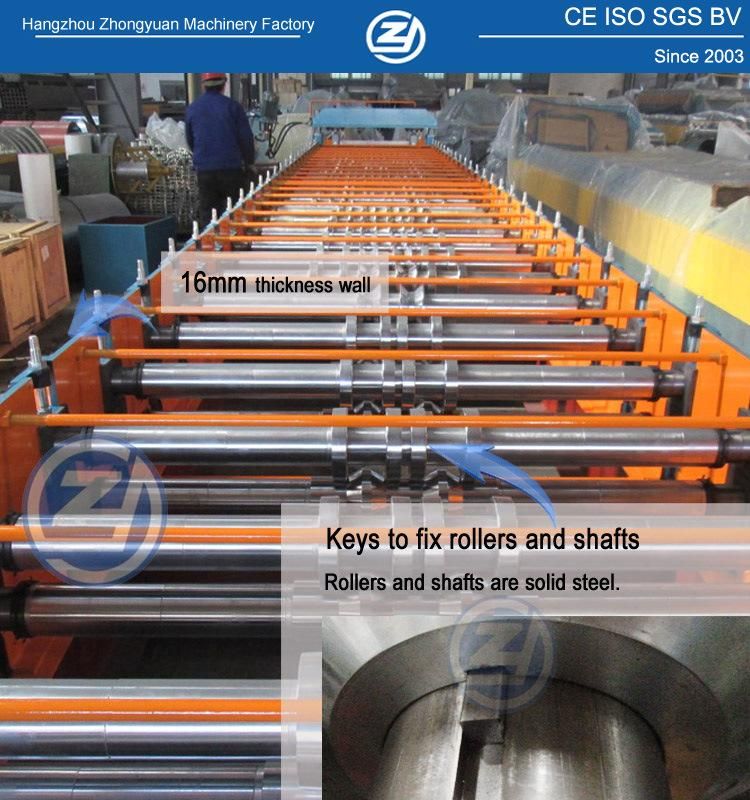

                                                           Trapezoidal Roof Cold Roll Froming Machine
Technical parameterItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.4-0.7Yield strength(mpa)235-550Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)20-25Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5 KWTotal power(kw)9.7 KWMachine size9000*1700*1600mmMachine weight8 tons
Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set





Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 50 days after received advaced payment


About Hangzhou Zhongyuan Machinery factory
1.  Customize roll forming machines since 2003.
2.  Capacity: 12-15 sets/month
3.  Delivery: in only 5-8 weeks for urgent order
4.  Company occupies 6650, in which 5650 for workshops
5.  Have our own tool center. 12 sets CNC machines.
6.  Third party inspection: Bureau Veritas, SGS. Can provide assessment report.
7.  Machine original brand: Zhongyuan
8.  Set up business relationship with companies in more than 20 countries
