Snow Scooter Track 230X72X46

Shanghai Puyi Industrial Co., Ltd.
  • Type:Crawler
  • Application:Robot and Small Machinery
  • Certification:ISO9001: 2000
  • Condition:New
  • Place of Origin:Shanghai, China (Mainland)
  • Width:230mm

Base Info

  • Model NO.:230x72x46WD
  • Pitch:72mm
  • Link:46
  • Length:3312mm (Length Can Be Adjusted)
  • Sprocket:Can Be Customized
  • Weight:35kg
  • Delivery:10 Days After Payment
  • Warranty:Guarantee 12 Months Under Normal Use
  • Export Market:Global
  • Transport Package:Bare Packing or Wooden Pallets
  • Specification:230*72*46
  • Trademark:POOYERT
  • Origin:Shanghai, China
  • HS Code:8431499900
  • Production Capacity:5000 Per Month

Description

Wdith230mmPitch72mmLink46Total Length3312mm (Length can be adjusted)Weight35KGSprocketAvaliableSupporting wheelAvaliableMaterialKevlar Fiber, UHMW-PE(Sprocket), SBR, NR etcProduction period7-12 days Snow Scooter Track 230X72X46
Snow Scooter Track 230X72X46
Snow Scooter Track 230X72X46

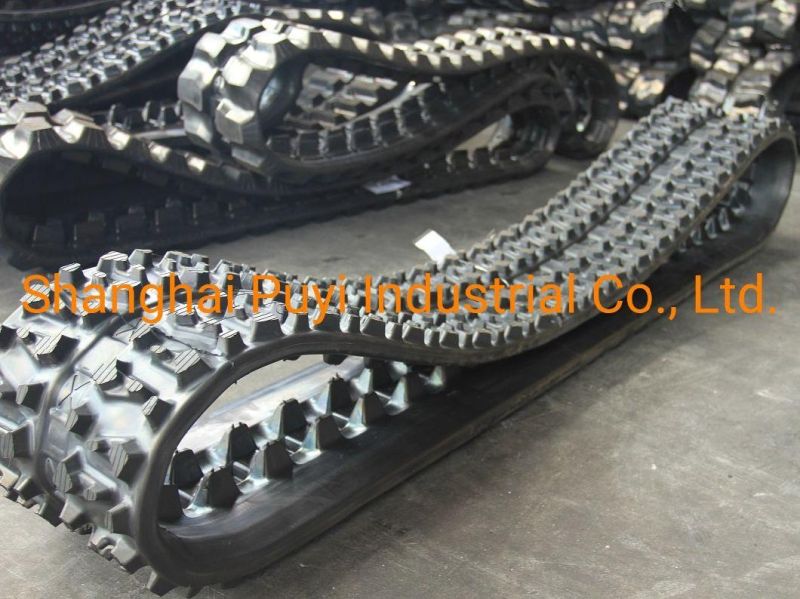

 The feature of rubber tracks

Number of sections: 50 sections (The number of sections is adjustable, not based on the number of uploaded sections.) Pitch: 50.3mm
Width 250mm Length: 2464.7mm. Weight: 20kg Load: less than 600KG

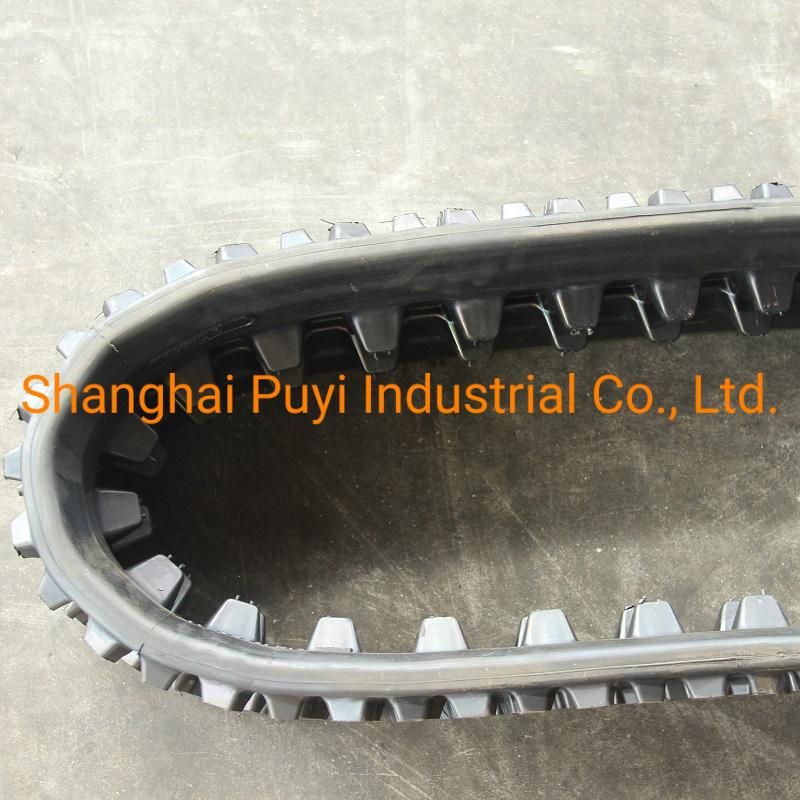

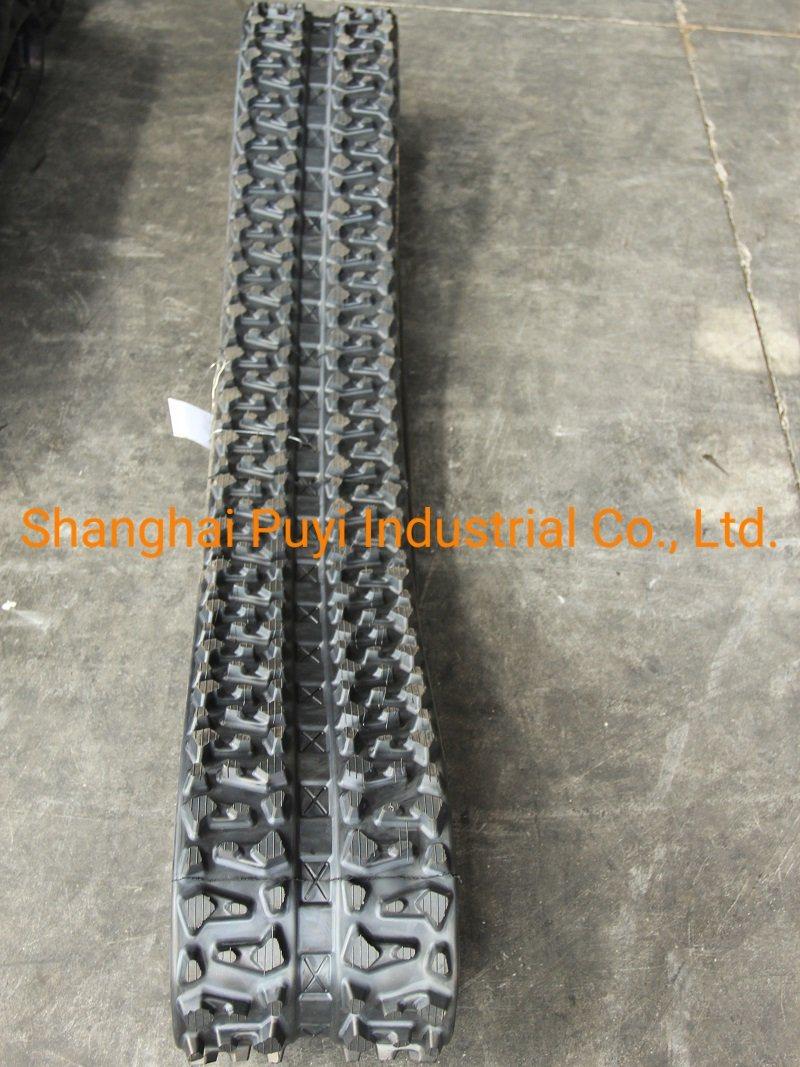

The track is a pinion track, and the outer pattern adopts a symmetrical block-shaped eight-character design to improve the grounding area and gripping ability of the track itself. The internal teeth are designed with double internal toothed trapezoidal high-tooth structure, and built-in high-strength steel castings to improve the use of the track. life. This product is thicker and is an all-terrain rubber track.

This product uses nano-composite rubber material and built-in high-strength fiber imported from the United States. This special rubber track is lighter than the agricultural track on the market, greatly improving the power transmission power of the equipment, and the service life is doubled compared with the traditional crawler. Used on tracked drive systems. In the south, hills, and mountains, this track has been highly recognized by a wide range of customers.
This product is intended for use in machinery that does not exceed 600 kg of total load.

 Characteristic(1). Less round damage

Rubber tracks cause less damage to roads than steel tracks and less rutting of the soft ground than either steel tracks of wheel products.

(2). Low noise

A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.

(3). High speed

Rubber track permit machines to travel at a higher speed than steel tracks.

(4). Less vibration

Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operating fatigue.

(5). Low ground pressure

The ground pressure of rubber tracks equipped with machinery can be fairly low, about 0.14-2.30 kg/ cm, a major reason for its use on the wet and soft terrain.

(6). Superior traction

 The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the same weight.
 More Size
ModelSizeWeight(kg)/LinkModelSizeWeight(kg)/LinkModelSizeWeight(kg)/Link
HS-3232*12.70.0031HL-105105*420.0572YT-200200*52.50.3935
BK-B40*9.30.0084CX-118118*610.1625SQ-A220*53.50.2062
HL-4040*440.0268QD-118118*600.122JH-220220*850.9
PY-4045*31.750.0172SJ-120120*610.1477JA-220220*50.30.4
PY-4040*31.30.0163RN-120120*600.125DY-250250*50.30.3507
LG-4848*100.0042WG-123123*380.0703LP-250250*50.30.523
DG-5050*22.2250.03GF-A125*190.0243CQ-255255*720.4758
GF-B50*190.0093DN-A130*18.50.0289FP-250250*800.4897
GMD-B50*200.0109WJ-130130*400.1088WD-255255*730.4549
HGD-5252*580.0474TH-136136*450.0868SQ-B255*720.45
JTDX-6060*15.20.012WGJ-130130*650.4348CF-280280*601.9
XL-6060*13.90.59HBC-140140*300.0334LEVE-280280*870.4839
LWM-6060*22.2250.023SL-140140*800.2778KD-320320*872.1607
JQ-B60*12.70.0182JT-140140*200.0332QATV-320320*870.4688
BF-B60*150.0073PW-148148*600.2804WD-320320*72
BK-A60*13.010.0178ZY-148148*600.4445TG-320320*870.9412
DN-B60*18.50.0088XF-A150*590.2051TJ-360A360*870.8285
JT-6060*200.0125NG-150150*650.3095NY-380380*650.7854
JQ-A76*12.70.0158SF-150150*720.3781YQZG-400400*73
BF-A80*150.0112XF-B150*590.2178QATV-400400*871.25
HL-8080*440.055LEVE-160160*600.8065TK-560560*1053
SMX-7070*400.0636YSD-165165*64.50.3612DNS-580580*60.50.675
CHJ-8080*40.20.0817WJ-165165*65.50.2989XLG-620620*100
TH-8585*59.40.08WHKD-170170*640.2419BV206620*90.63.125
THG-8585*59.40.1072LEVE-180180*650.3571WZY-800800*90.6
GMD-A100*200.0242YN-180180*720.4729KCM-500500*1102.9836
BD-B100*400.0454HC-200200*60.20.3
BD-A100*400.08HS-200200*720.75

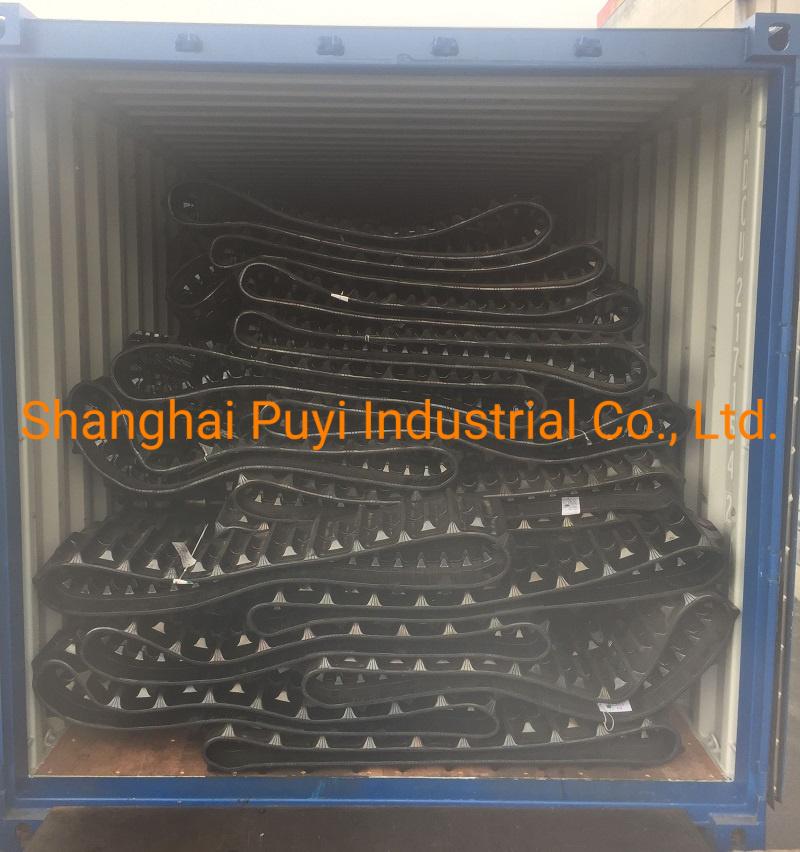

 PackingSnow Scooter Track 230X72X46
 Contact person: Jackie +86 18217419579
