• Model NO.：SR22-C5
• Compaction Depth：2170mm
• Engine Type：Diesel Engine
• Travel Speed：10km,H
• Centrifugal Force：420,310
• Certification：CE
• Condition：New
• Transport Package：Nude
• Specification：As below
• Trademark：Shantui
• Origin：Hunan
• HS Code：842940190
• Production Capacity：1000 Pieces,Month

Basic Info.

Model NO. SR22-C5 Compaction Depth 2170mm Engine Type Diesel Engine Travel Speed 10km/H Centrifugal Force 420/310 Certification CE Condition New Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 842940190 Production Capacity 1000 Pieces/Month

Product Description

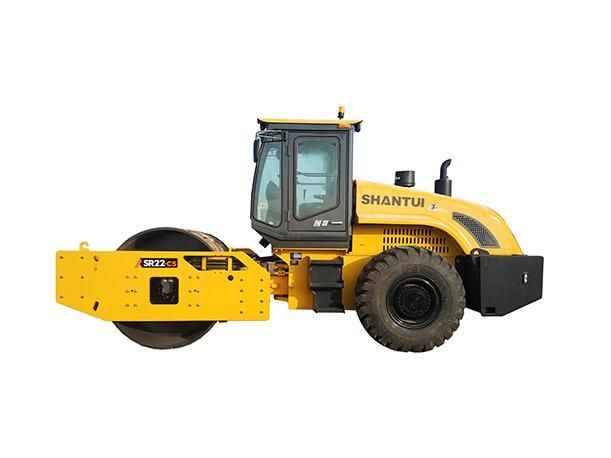

SHANTUI Road Roller 22t Single Drum Compactor (SR22-C5)1. High safety and comfort

The whole machine adopts three-level shock absorption, special sealing, low vibration and low noise;

The cab dashboard, seat and control box are arranged in combination with ergonomics for comfortable operation;

Fully hydraulic drive, four-speed stepless speed change, simple operation.

2. High flexibility and usability

The fuel filter element and hydraulic filter element are arranged on the same side of the machine, which is easy to maintain;

Easy maintenance, daily maintenance can be done conveniently by opening the hood;

The pipes for draining water from the water tank and draining oil from the oil pan are led to the outside of the machine body for easy maintenance;

Intelligent combination instrument with automatic fault detection function, with all-weather, all-round fault diagnosis and alarm system.



3. Working performance

Weichai WP6 engine has good fuel economy, strong parts versatility and low maintenance cost;

Suction-type large-area radiator, effectively extending the service life of the engine and hydraulic components;

Shantui's proprietary technology steel wheels, bearing independent lubrication, long life.



4. Operating cost

Exclusive matching technology can achieve high work efficiency and reasonable fuel economy, and comprehensive fuel consumption can be reduced by 8%~10%;

Imported core electric hydraulic components, high quality and reliability, reducing downtime.



Parameter name	SR22-C5
Performance parameters
Operating weight (Kg)	22000
Exciting force (KN)	420/310
Vibration frequency (Hz)	29/35
Nominal amplitude (mm)	2.0/1.0
Gradeability (%)	50
Engine
Engine model	WP6
Rated power/rated speed (kW/rpm)	147/2000
Overall dimensions
Overall dimensions of machine (mm)	6463*2352*3162
Driving performance
Forward speed (km/h)	F1:0-4.2 ,F2:0-5.3,F3:0-6.7 , F4 0-10
Reversing speed (km/h)	R1:0-4.2 ,R2:0-5.3,R3:0-6.7 , R4 0-10
Chassis System
Fuel tank (L)	300
Working device
Compacting width(mm)	2170
