• Model NO.：260*96*41
• Product Name：Rubber Track
• Material：Rubber & Steel
• Width：260mm
• Pitch：96mm
• Links：41(Can Be Customized)
• Color：Black
• Weight：78.31kg
• Warranty：12 Months Under Normal Use
• Transport Package：Bare Packing or Wooden Pallets
• Specification：260*96*41
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：5000PCS,Months

Basic Info.

Model NO. 260*96*41 Product Name Rubber Track Material Rubber & Steel Width 260mm Pitch 96mm Links 41(Can Be Customized) Color Black Weight 78.31kg Warranty 12 Months Under Normal Use Transport Package Bare Packing or Wooden Pallets Specification 260*96*41 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 5000PCS/Months

Product Description

Rubber Track Width260*Pitch96*Links41

Specifications
1.Low noise & less vibration
2.less ground damage&pressure
3.superior traction
4.Light weight & high speed
Supply many model rubber track & pad for excavator, combination harvester, grader and mini-excavator etc.Which can suitable for many model, such as KOMATSU, KOBELCO, HITACHI, HYUNDAI, KATO,KUBOTA,YANMAR,HANIX ,TAKEUCHI and so forth brands.

At the same time, we can customize track shoes, swamp shoes for you, according to your requirements or drawings.

FEATURES :
1. Continuous rubber track
2. Conventional type or interchangeable type rubber track or camouflage rubber track
3. Warranty: guarantee one year under normal use
4. OEM orders of complete track systems welcome
5. Comprehensive range of standard rubber crawler track system available and undercarriages available for a wide range of machinery
6. Application : mini-excavator , dumper , snow truck , bulldozer , crawler loader , crawler crane , crawler carrier vehicles , combine harvester , paver , agricultural vehicles and other special vehicles.


Main Products:
1. Crawler Crane, Excavator and Bulldozer Undercarriage parts:
   Track chain, Track shoe, Sprocket& Segment, Idler, Track roller, Carrier roller
2. Ground Engaging Tools:
   Excavator Bucket, Bucket Tooth & Adapter, Cuuting Edge...
3. Rubber track for Excavator ,Dumper and Agricultural Machinery


Parameters:
size width*pitch

link	A	B	C	D	F	pattern	guiding
130*72	29-40	23	64.5	28	28	15	AF1	A2
150*60	32-40	22	64	22.5	24.5	15	AC	A2
150*72	29-40	23	64	23	23	15	AC	A2
170*60	30-40	19	57	22	22	13	CE	A1
180*60	30-40	23.5	64	21	21.5	15	AM	A1
180*72	31-43	25	68	29	29	15	BK	A2
180*72K	32-48	20	61	22	19.5	17	BB1	B2
B180*72	31-43	23	66	30	29	15	BB1	B2
H180*72	30-50	23	64	27	26	17	BK	A2
190*60	30-40	23.5	64	21	21.5	14	AM	A1
190*72	31-41	21	68	27.5	26.5	15	BF	A2
200*72	34-47	23	76	28.5	26.5	18	BB1	A2
200*72K	37-47	21	69	29.5	29	18	BM	A2
Y200*72	40-52	24	64	28.5	29.5	12	BK	A2
230*48	60-84	24	72	24	25	21	BI	B1
230*48K	60-84	24	66	21	20	19	BI	B2
230*72	42-56	24	82	30	26	18	AF1	A2
230*72K	42-56	20	69	29.5	28	16	BD	A2
230*96	30-48	25	68	23.5	25.5	22	BE	B1
230*101	30-36	25	74	22.5	29	19	BO	B1
250*47K	84	23	70	24	20	22	BD	B2
250*48.5K	80-88	24	66	21	20	19	CA	B2
250*52.5K	72-78	26	81	23	25	25	BA	B2
250*52.5	72-78	29	72	23	25	21	BI	B1
250*72	47-57	24	82	30	26	18	AF1	A2
B250*72	34-60	23	64	29	22	10	CI	A2
B250*72B	34-60	23	78	29	26	16	AB	B2
250*96	35-38	25	70	20	19	22	BB1	B2
250*109	35-38	40	89	24.5	14	20	CG	B1
260*55.5K	74-80	31	80	21.5	27	24	CA	B2
Y260*96	38-41	25	68	23	25.5	22	AB	B1
260*109	35-39	30	84	24	29	15	AB	B1
E280*52.5K	70-88	29	84	27	26	22	BI	B2
280*72	45-64	25	78	29.5	26	22	AL	A2
Y280*106K	35-42	30	80	27.5	28	20	AB	B2
300*52.5N	72-98	30	82	25	18	20	BI	B1
300*52.5W	72-92	43	96	22	23	22	BE	B1
300*52.5K	70-84	29	84	27	26	22	BI	B2
300*52.5KW	72-92	40	92	25	24	22	BI	C1
E300*52.5K	70-88	29	84	27	26	22	BI	B2
KB300*52.5	72-92	40	90	24.5	24.5	22	BI	C1
KB300*52.5N	72-98	30	82	23	20	25	BI	B1
JD300*52.5N	72-98	30	80	23.5	22	22	BI	B1
300*53K	80-96	31	88	25	19.5	21	BI	B2
300*55	70-88	29	86	25.5	27.5	23	BI	B1
300*55.5K	76-82	31	82	22	27	21.5	CA	B2
300*71K	72-76	42	106	23	24	40	BD	B2
300*72	36-40	23	75	40	34	18	BK	A2
BA300*72	36-46	26	76	29	27	19	AF1	A2
300*109N	35-42	29	82	27	28	25	BE	B1
300*109W	35-44	38	90	26	29	24	BB1	B1
K300*109	37-41	27	85	23.5	27.5	20	AB	B2
300*109WK	35-42	40	90	24.5	14	23	CG	B1
320*52.5	72-98	30	83	23.5	18	21	BI	B1
320*54	70-84	29	80	23	21	20	AB	B1
B320*55K	70-88	30	82	25	30	23	BE	B2
Y320*106K	39-43	31	80	26	27	24	AB	B2
350*52.5	70-92	40	94	22.5	19	30.5	BE	B1
E350*52.5K	70-88	29	84	27	26	22	BI	B2
350*54.5K	80-86	40	92	23.5	22.5	23	AD	B2
B350*55K	70-88	30	82	25	30	23	BE	B2
350*56	80-86	39	89	25.5	16.5	20.5	BC	B1
350*75.5K	74	37	98	24.5	25	25	CA	C2
350*108	40-46	40	90	24.5	14	25	CG	B1
350*109	41-44	40	92	26	20	25	BO	B1
Y370*107K	39-41	38	94	25.5	28	23.5	AB	B2
400*72.5N	70-80	38	100	26	24	25	AF3	B1
400*72.5W	68-92	51	108	26	24	25	BI	B1
Y400*72.5K	72-74	28	86	30	24.5	25	AF3	C2
KB400*72.5K	68-76	37	94	24	26	23.5	BA	B2
400*72.5KW	68-92	46	112	24	23.5	25	BI	B2
400*74	68-76	38	100	25.5	29.5	24	BH2	B1
400*75.5K	74	39	100	25	26	25	CA	C2
Y400*107K	46	38	89	27	25	25	AB	C2
K400*142	36-37	27	87	34	27	29	CF	C2
400*144	36-41	47	98	27	11	30	CF	B1
Y400*144K	36-41	35	126	29.5	26	25	BE	B2
450*71	76-88	42.5	115	29.5	17	30	BE	B1
DW450*71	76-88	44	114	31	27	25	BD	B1
450*73.5	76-84	42	118	31	34	28	CG	B1
450*76	80-84	48	122	30.5	31.5	26	BI	B1
450*81N	72-80	42	117	26	24	27	BE	B1
450*81W	72-78	58	140	29	32	30	BI	B1
KB450*81.5	72-80	42	110	31.5	27.5	26	BD	B1
K450*83.5	72-74	42	112	24.5	25	28	BI	B1
Y450*83.5K	72-74	38	113	24	27	26	CA	B2
K450*163	38	38	114	27	28	30	AB	B2
485*92W	74	62	142	34	33	30	BE	B2
K500*71	72-76	41	106	23	24	42	BE	B2
500*92	72-84	48	130	27	26	29	BI	B1
500*92W	78-84	64	155	32.5	35.5	33	BI	B1
K500*146	35	40	106	26.5	24.5	50	BB1	A2

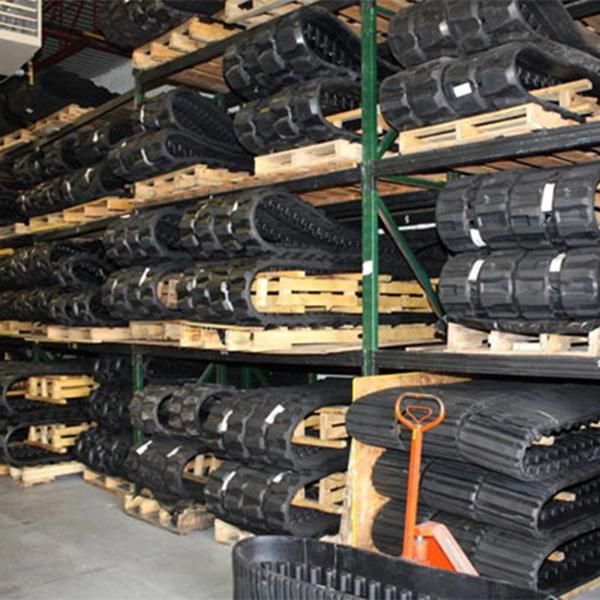

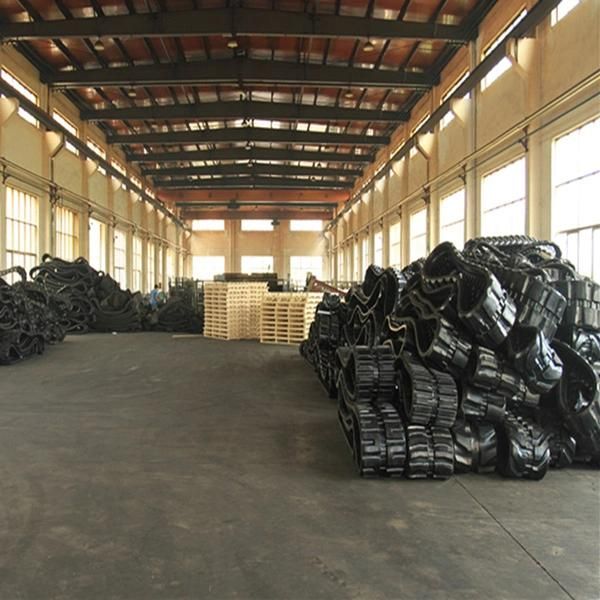

Warehouse:
