• Model NO.：ZT956
• Type：Small Loader
• Standard Bucket：3cbm
• Max.Dump Height(mm)：3000mm
• Operating Weight：16500kg
• Max.Dump Reach(mm)：1320mm
• Tyre Specification：23.5-25
• Min Turning Radius (mm)：6120mm
• Wheel Base(mm)：3200mm
• Tread(mm)：2250mm
• Transport Package：Nude
• Specification：7000× 2430 × 3060mm
• Trademark：ZTMACHINE
• Origin：China
• HS Code：842951000
• Production Capacity：30

Basic Info.

Model NO. ZT956 Type Small Loader Standard Bucket 3cbm Max.Dump Height(mm) 3000mm Operating Weight 16500kg Max.Dump Reach(mm) 1320mm Tyre Specification 23.5-25 Min Turning Radius (mm) 6120mm Wheel Base(mm) 3200mm Tread(mm) 2250mm Transport Package Nude Specification 7000× 2430 × 3060mm Trademark ZTMACHINE Origin China HS Code 842951000 Production Capacity 30

Product Description





Description	Specification
rated load(kg)	5000
Rated bucket capacity(m³)	3
operating weight(kg)	16500
Max.breakout force(kN)	175
Max.dump height(MM)	3000
Max.dump reach(MM)	1320
Discharging Angle(°)	45
Max.grade ability(°)	30
Automatic leveling ability	Y
Lifting time(s)	≤6.5
Total cycle time(lifting, dumping, lowering)(s)	≤11.7
steering angle(°)	35
Min turning radius(MM)	6120
Wheel base(MM)	3200
Tread(MM)	2250
Min.ground clearance(MM)	450
Overall dimensions (l×w×h)mm(MM)	8020×2850×3050
travel speed(km/h)
Forward gear     I	0~8
II	0~15
III	0~23
IV	0~38
reverse gear    I	0~8
II	0~15
III	0~23
IV	0~38
Engine Model	Cummins 6CA8.3-215/ WD615G.220
Type	Water injection four-stroke inline
Rated power(kW)	160
Rated speed(rpm)	2200
Maximum torque(N·m)	779
The hydraulic torque converter model	YJ375
Transmission model	ZL50
Transmission gear	forward4back4
Variable speed pump type	CBGj2040
Drive axle	ZL50
The main transmission ratio	3.7
Round edge transmission ratio	5.6
Tire model	23.5-25
charge pressure(kPa)	front342 / back343
Multi-way diverter valve model	DF32.2C
Steering model	BZZ6-1000
operating oil pump	CBGj3100
The system pressure(MPa)	16
Steering pump	CBGj2080
Steering system pressure(MPa)	12
The braking system
Service brake	Gas-liquid caliper disc brake
Parking brake	Breathe manipulating drum brake
The voltage(V)	24
Battery model number	6-QA-195

Packing & Delivery

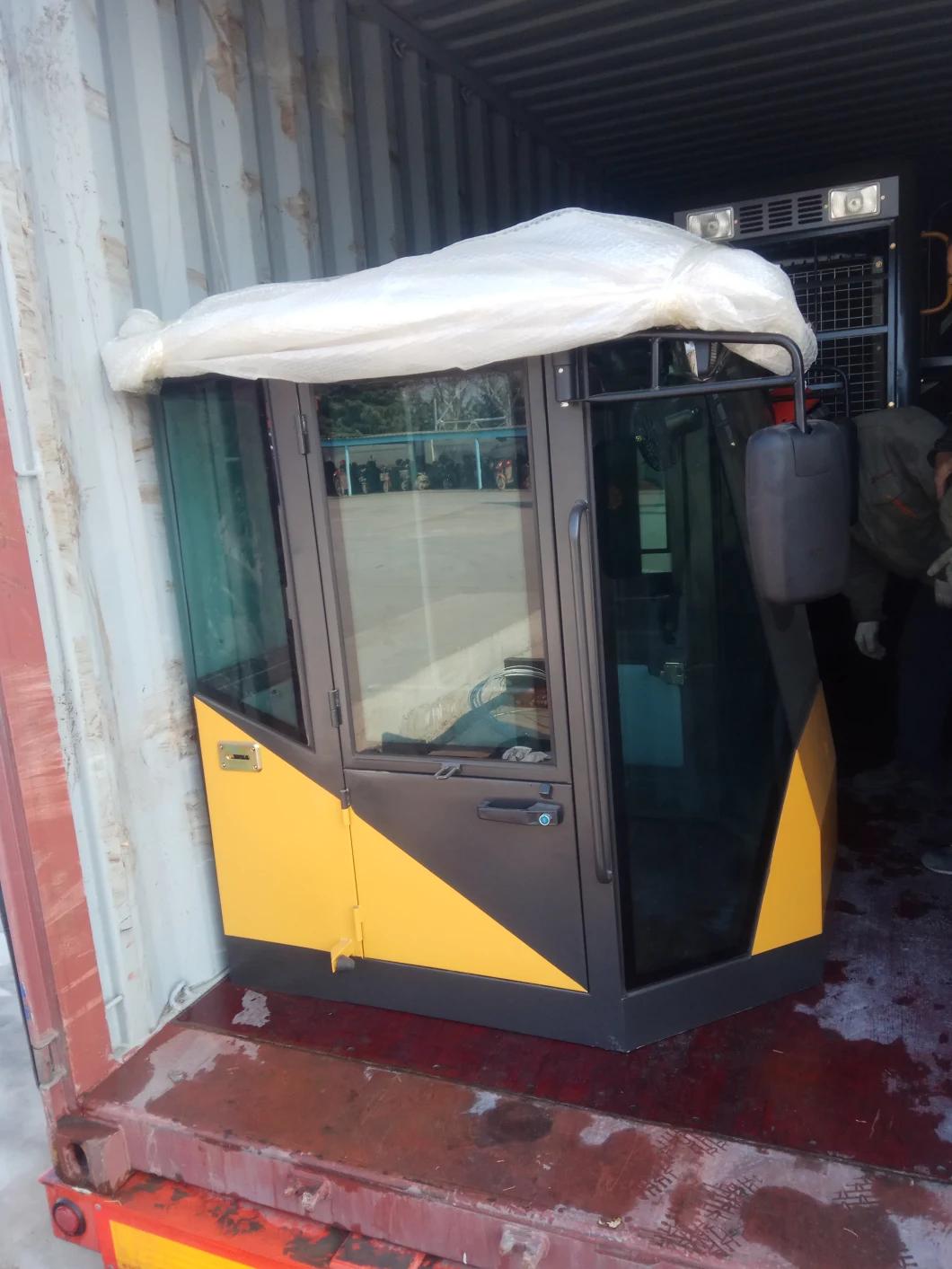

Container 40HC 1 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.2. spare parts or wearing parts will be packed in wooden box or paper carton. 3. Standard shipping method is by container.
