• Model NO.：LG940
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• OEM：Available
• Tire：16,70-24
• Operating Weight：5750kg
• Bucket Capacity：1.1cbm
• Transport Package：Nude Cargo
• Specification：6250X2150X2950
• Trademark：LuGong
• Origin：China
• HS Code：84295100
• Production Capacity：40000

Basic Info.

Model NO. LG940 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader OEM Available Tire 16/70-24 Operating Weight 5750kg Bucket Capacity 1.1cbm Transport Package Nude Cargo Specification 6250X2150X2950 Trademark LuGong Origin China HS Code 84295100 Production Capacity 40000

Product Description

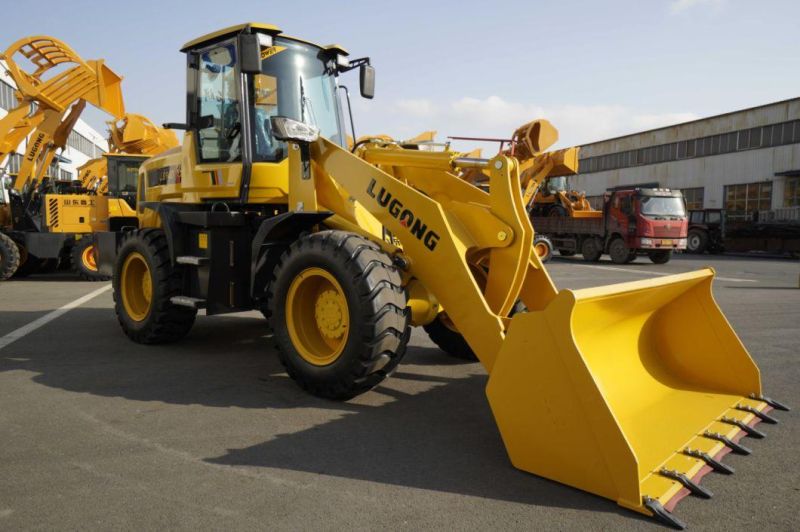

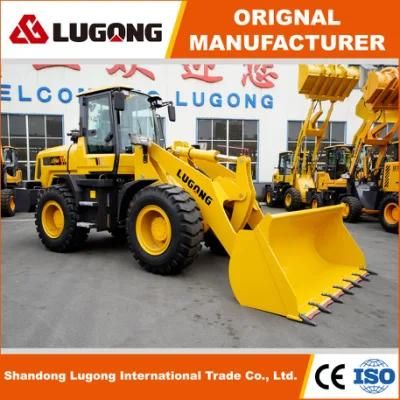

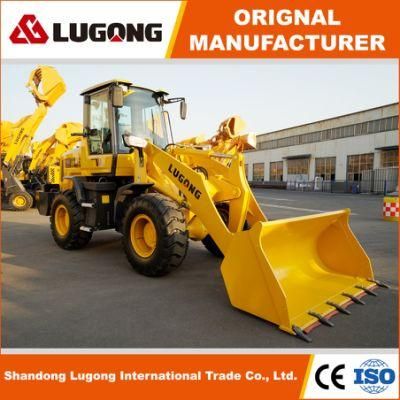

New generation LG940 2.2ton front end loaders with grapple for landscaping
The Details and Advantages of LG940



1.Engine
•Famous brand opption:CUMMINS, DEUTZ, YUNNEI;
•Better cost-effective and best cooperation with brands:WEICHAI-HF, YUCHAI,SIDA

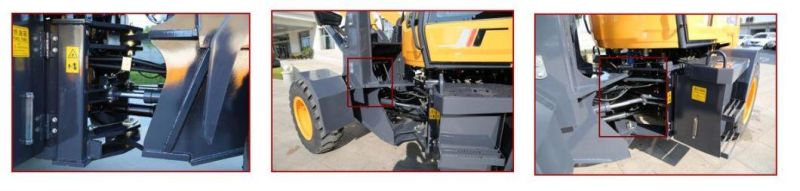

  2.Articulaiton
• Extended and widened plate charges in column,more strengthfull.
•Trajectory coincidence technology reduce tire wear and machine load capacity, turning radius is small and more flexible.

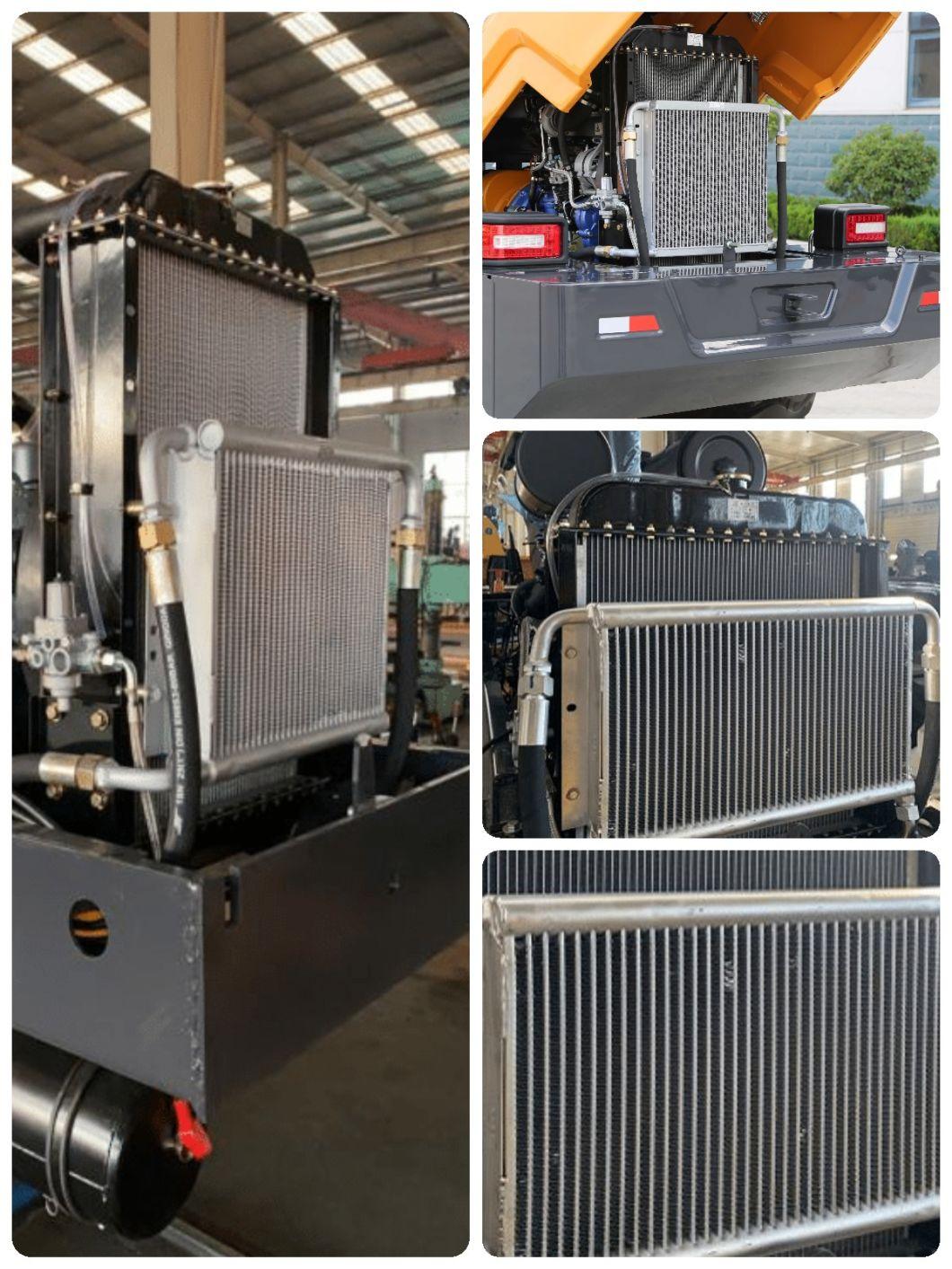

3.Cooling systerm
•High level water tank gets better radiation effect.
•Water and oil cooling systerm separately.
•Large hole grid and widen 32mm double-row pipes increases radiation effect and prevent blocked;

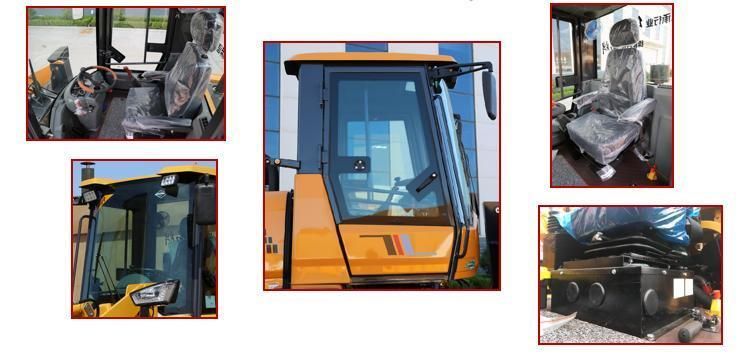

4.Cab
•Drawing stamping process gets high structural strength and big space for cab;
•Air-damping luxury seat , more comfortable and reduce exhaustion of long time driving;
•One-piece curved window shield gets better driving vision;
•Optional air conditioner improves driving comfort.

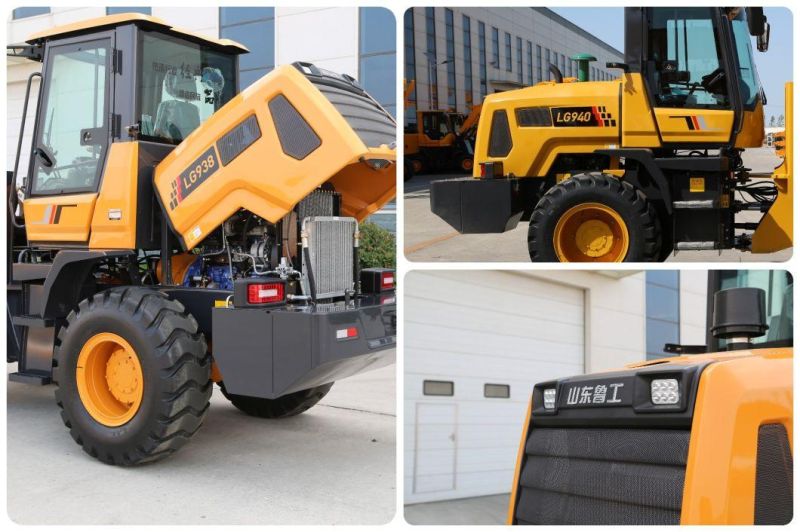

5.Appearance
•Drawing stamping process gets high structural strength and arc design gets good visual effect;
•Large open angle is convenient for repair;
•Electro-painting prevents metal from getting rusted soon.
•Stamping engineering gets more durable performance for grid plate.Small and narrow hole on it prevent dirties and crops into it.

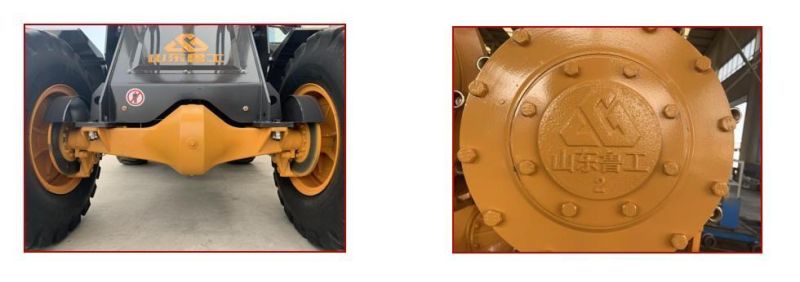

6.Axle
•Special patented axle with big hub reduction.
•Speed ratio 7:41, large torque and more power, speed acceleration fast.
•Casting steel, 200kg heavier than other brands. Stronger and more durable.
•Used on light-heahy trucks, high precision and low failure rate.

Other Details
• Shanghai "Steel" brand tire and made of 18PR Nylon;
•H type joint with two sealing rings ensures no oil leakage;
•Integrated pump and valve without hose increases safety and reduce fault;
•Front and rear brake pumps separated design prevents brake failure;
• Quick-change connector on air reservoir is convenient for inflation;
•LED lights are more bright and have longer life

The parameter of LG940


Rated Load	2200kgs	Engine Model	Yuchai 4105 Turbo
Standard Bucket	1.1m3	Gross Power	85KW
Operating Weight	5750kgs	Torque Converter	Hydraulic
Max. Dumping Height	3800mm	Transmission Box	CVT AWD 300 Split type
Turning Radius	6000mm	Axle	2.5T Big hub reduction gear
Tyre	16/70-24	Service Brake	Dual Air Hydraulic Disc

Optional Attachements

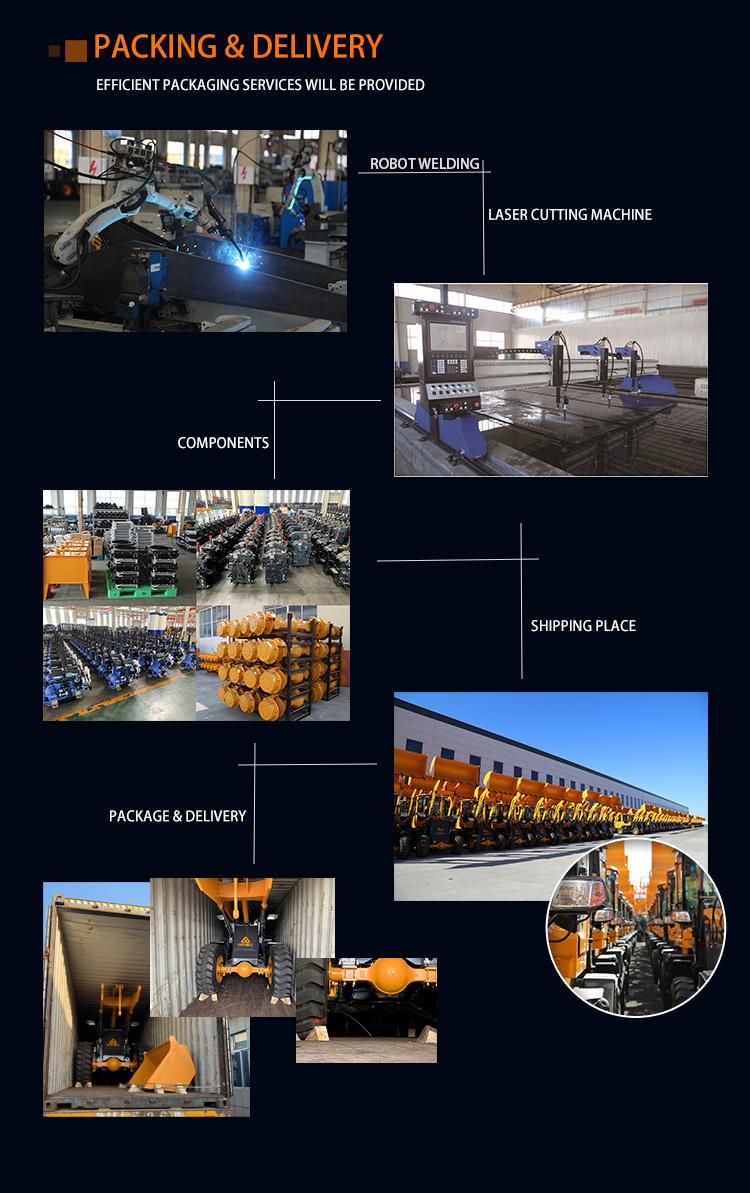

Packing & Delivery

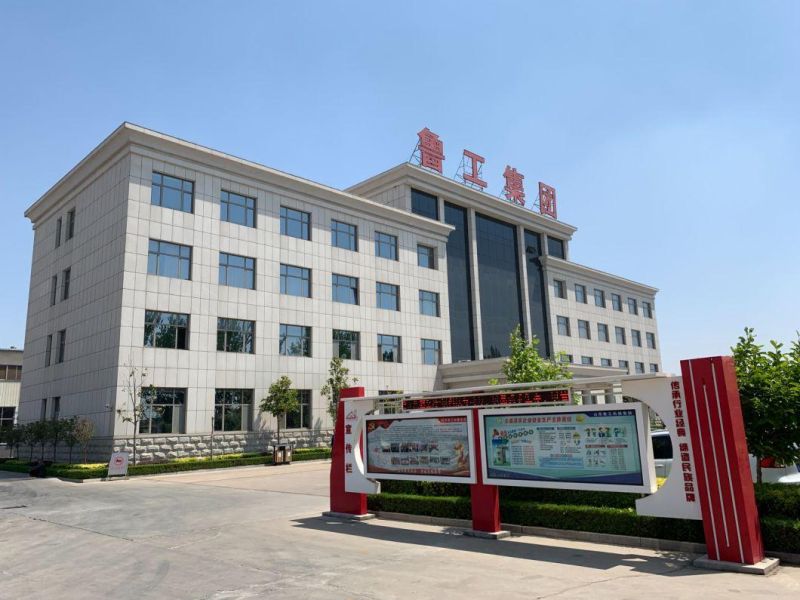

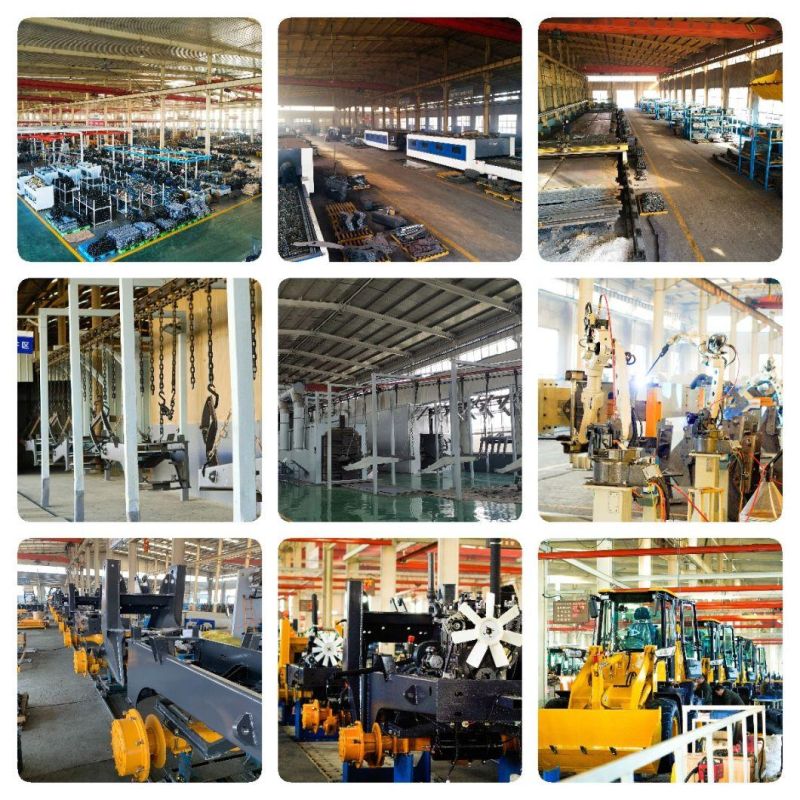

 The Company Profile
•Founded in 2000.
•Covers a land of 200,000 square meter.
•1100 employees,88  engineers.
•Compact wheel loaders are in leading position in demestic market.
•40,000 set of machines sold out on average last year
