• Model NO.：LG938
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• OEM：Available
• Tire：16,70-20
• Operating Weight：4500kg
• Bucket Capactiry：1.0cbm
• Bucket Width：2000mm
• Max Dumping Height：3500mm
• Max Dumping Distance：700mm
• Turning Radius：4500mm
• Engine Model：Power-Hf 4102 Turbo
• Rated Power：76kw
• Gearbox：Atutomatic 265 Split
• Axle：Awd, LG 2.0t Big Hub Reduction 2.0t
• Tyre Size：16,70-20
• Transport Package：Nude Cargo
• Specification：6000*2050*2950mm
• Trademark：LuGong
• Origin：China
• HS Code：8429510000
• Production Capacity：40000

Basic Info.

Model NO. LG938 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader OEM Available Tire 16/70-20 Operating Weight 4500kg Bucket Capactiry 1.0cbm Bucket Width 2000mm Max Dumping Height 3500mm Max Dumping Distance 700mm Turning Radius 4500mm Engine Model Power-Hf 4102 Turbo Rated Power 76kw Gearbox Atutomatic 265 Split Axle Awd, LG 2.0t Big Hub Reduction 2.0t Tyre Size 16/70-20 Transport Package Nude Cargo Specification 6000*2050*2950mm Trademark LuGong Origin China HS Code 8429510000 Production Capacity 40000

Product Description

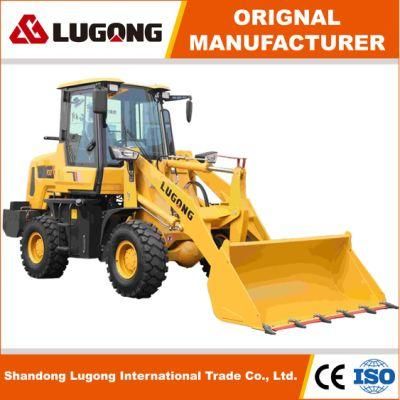

Multi-function LG938 1.0 CBM Air brake loaders with grapple with teeth


Advantages of LG938


1.Engine
•Famous brand opption:CUMMINS, DEUTZ, YUNNEI;
•Better cost-effective and best cooperation with brands:WEICHAI-HF, YUCHAI,SIDA

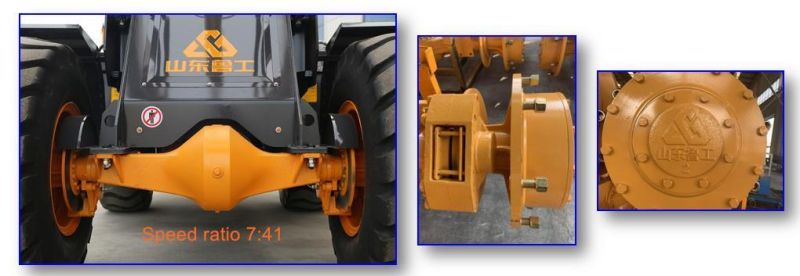

2.Axle
•Special patented axle with big hub reduction.
•Speed ratio 7:41, large torque and more power, speed acceleration fast.
•Casting steel, 200kg heavier than other brands. Stronger and more durable.
•Used on light-heahy trucks, high precision and low failure rate.

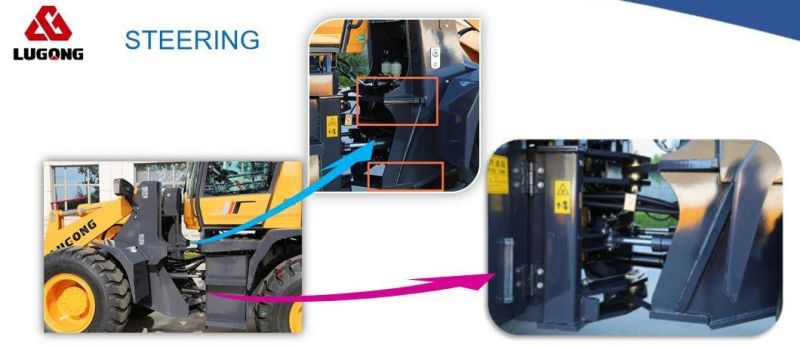

3.Articulaiton
•Three-layer articulation design uniform stress and prevent deformation.
• Extended and widened plate charges in column,more strengthfull.
•Trajectory coincidence technology reduce tire wear and machine load capacity, turning radius is small and more flexible.

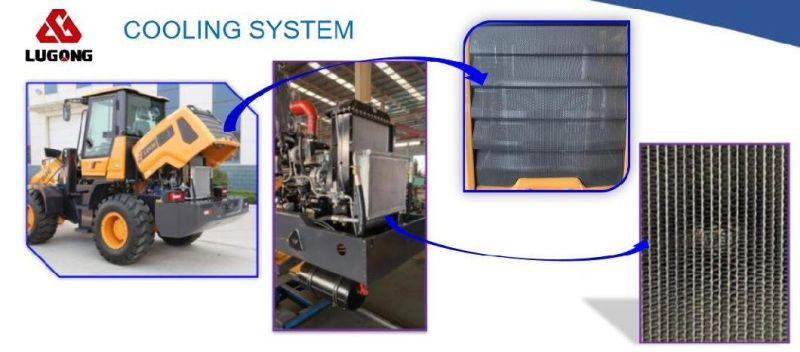

4.Cooling systerm
•High level water tank gets better radiation effect.
•Water and oil cooling systerm separately.
•Large hole grid and widen 32mm double-row pipes increases radiation effect and prevent blocked;

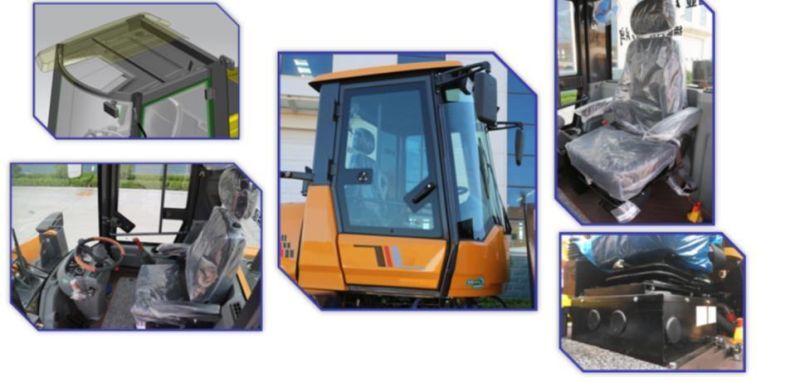

5.Cab
•Drawing stamping process gets high structural strength and big space for cab;
•Air-damping luxury seat , more comfortable and reduce exhaustion of long time driving;
•One-piece curved window shield gets better driving vision;
•Optional air conditioner improves driving comfort.

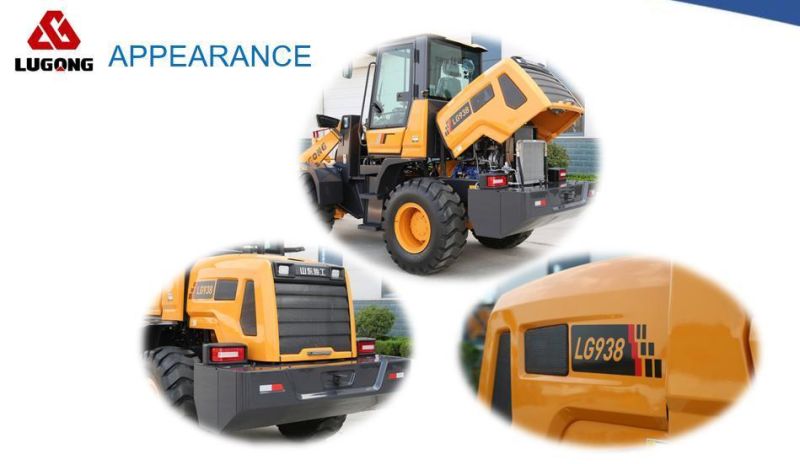

6.Appearance
•Drawing stamping process gets high structural strength and arc design gets good visual effect;
•Large open angle is convenient for repair;
•Electro-painting prevents metal from getting rusted soon.
•Stamping engineering gets more durable performance for grid plate.Small and narrow hole on it prevent dirties and crops into it.

Other Details


• Shanghai "Steel" brand tire and made of 18PR Nylon;
•H type joint with two sealing rings ensures no oil leakage;
•Integrated pump and valve without hose increases safety and reduce fault;
•Front and rear brake pumps separated design prevents brake failure;
• Quick-change connector on air reservoir is convenient for inflation;
•LED lights are more bright and have longer life

The parameter of LG938

Rated Load	2000kgs	Engine Model	Power 4102 Turbo
Standard Bucket	1.0m3	Gross Power	76KW
Operating Weight	4500kgs	Torque Converter	Hydraulic
Max. Dumping Height	3500mm	Transmission Box	CVT AWD 280 Split type
Turning Radius	4500mm	Axle	2.0T Big hub reduction gear
Tyre	16/70-20	Service Brake	Dual Air Hydraulic Disc

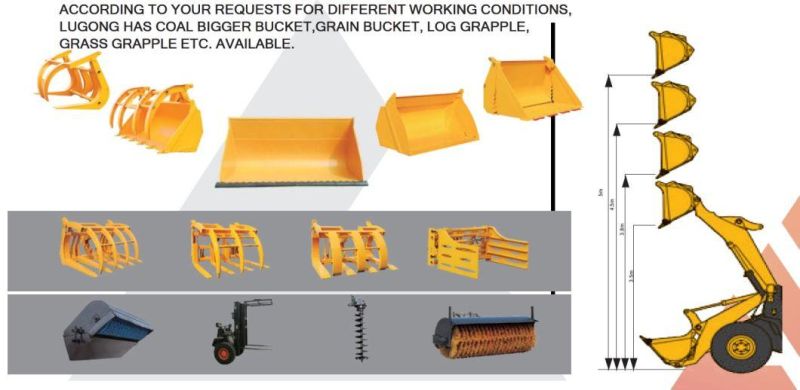

Optional Attachements

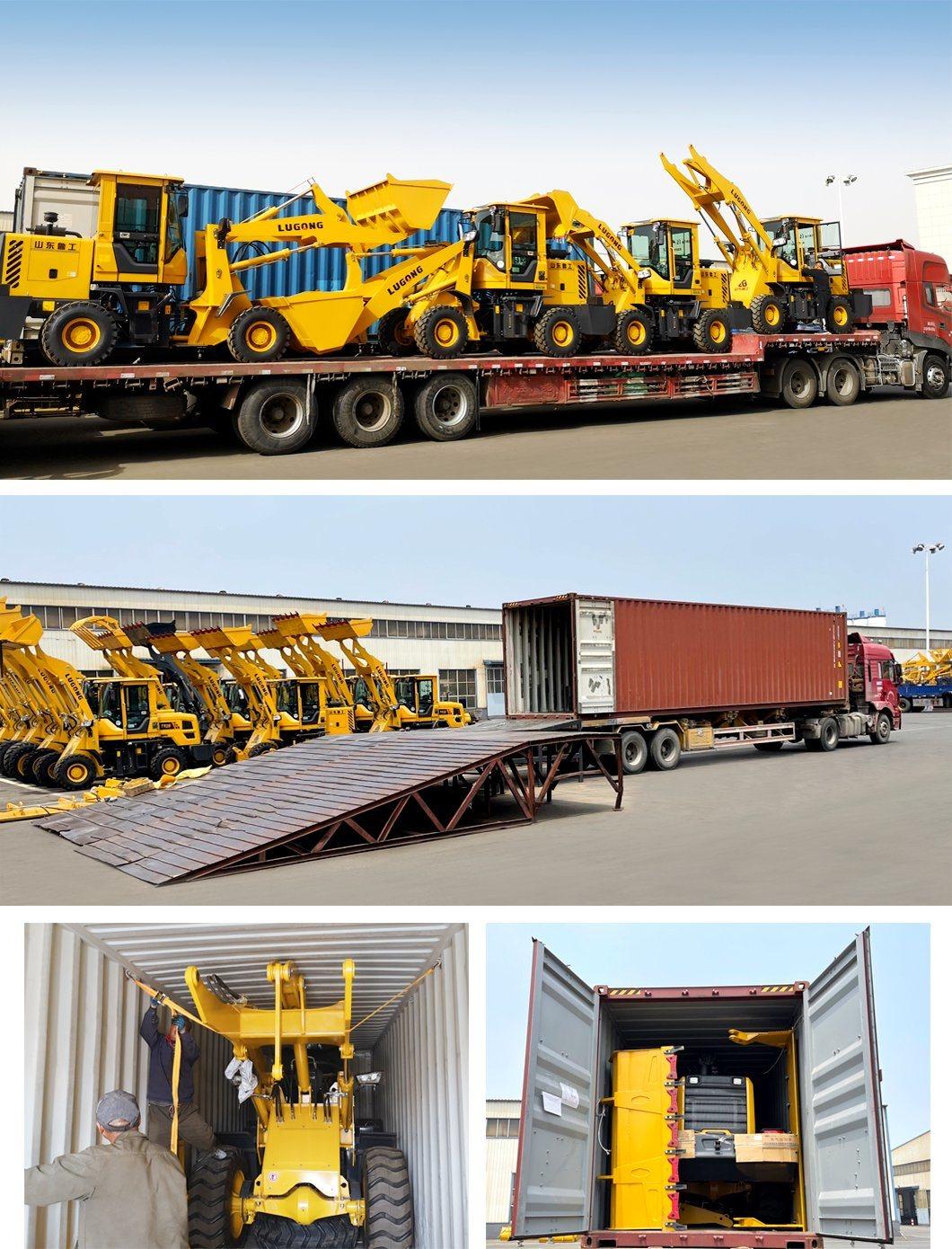

Packing & Delivery

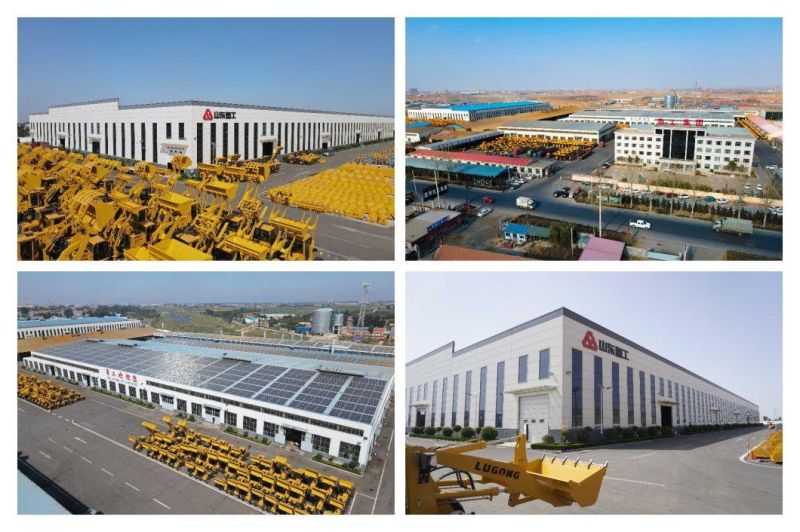

Company Profile

•Founded in 2000.
•Covers a land of 200,000 square meter.
•1100 employees,88  engineers.
•Compact wheel loaders are in leading position in demestic market.
•40,000 set of machines sold out on average last year


Basic Qualification

  Market Distribution

   LUGONG has a domestic network of hundreds of dealers in over 30 provinces.Globally, LUGONG products have been hot-selling in dozens of countries and regions-South Asia, Middle East, Russia, Africa, South America and so on.And LUGONG is continuing to expand the dealer network all over the world.We are going to improve the service quality of dealers and bring best quality products to customers abidingly.
