• Model NO.：LG946
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Bucket Capacity：1.3cbm
• Operating Weight：7200kg
• Bucket Width：2400mm
• Max Dumping Height：3800mm
• Max Dumping Distance：600mm
• Turning Radius：6000mm
• Engine Model：Yuchai 6105 Turbo
• Rated Power：92kw
• Gearbox：Automatic 300 Split
• Axle：Awd, LG2.8t Big Hub Reduction
• Tyre Size：17.5-25
• Transport Package：Nude Package
• Specification：6820X2130X3040
• Trademark：LuGong
• Origin：China
• HS Code：84295100
• Production Capacity：40000

Basic Info.

Model NO. LG946 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Bucket Capacity 1.3cbm Operating Weight 7200kg Bucket Width 2400mm Max Dumping Height 3800mm Max Dumping Distance 600mm Turning Radius 6000mm Engine Model Yuchai 6105 Turbo Rated Power 92kw Gearbox Automatic 300 Split Axle Awd, LG2.8t Big Hub Reduction Tyre Size 17.5-25 Transport Package Nude Package Specification 6820X2130X3040 Trademark LuGong Origin China HS Code 84295100 Production Capacity 40000

Product Description

CE approved LUGONG LG946 2.5ton Air brake loaders with grapple for construction work


The Details and Advantages of LG946

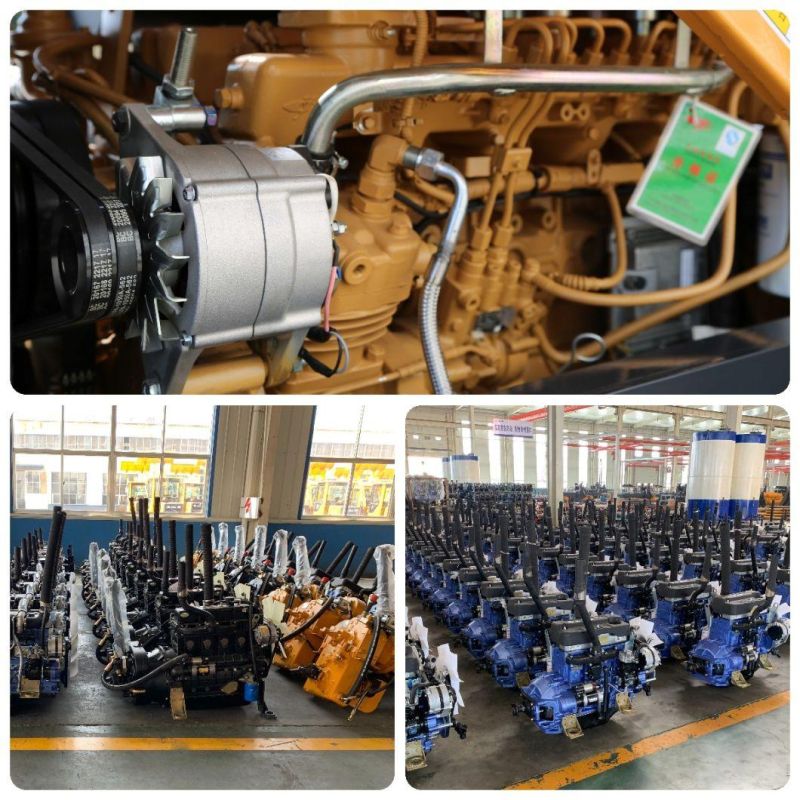

1.Engine
•Famous brand opption:CUMMINS, DEUTZ, YUNNEI;
•Better cost-effective and best cooperation with brands:WEICHAI-HF, YUCHAI,SIDA

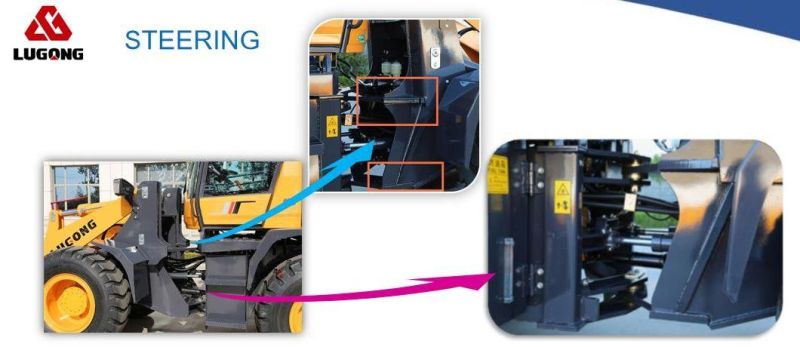

  2.Articulaiton
•Three-layer articulation design uniform stress and prevent deformation.
• Extended and widened plate charges in column,more strengthfull.
•Trajectory coincidence technology reduce tire wear and machine load capacity, turning radius is small and more flexible.

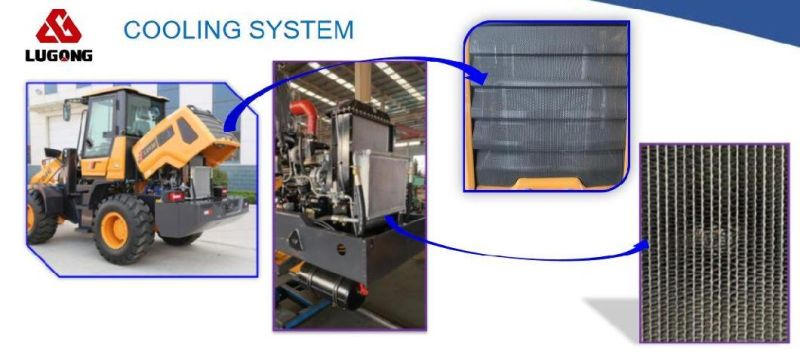

3.Cooling systerm
•High level water tank gets better radiation effect.
•Water and oil cooling systerm separately.
•Large hole grid and widen 32mm double-row pipes increases radiation effect and prevent blocked;

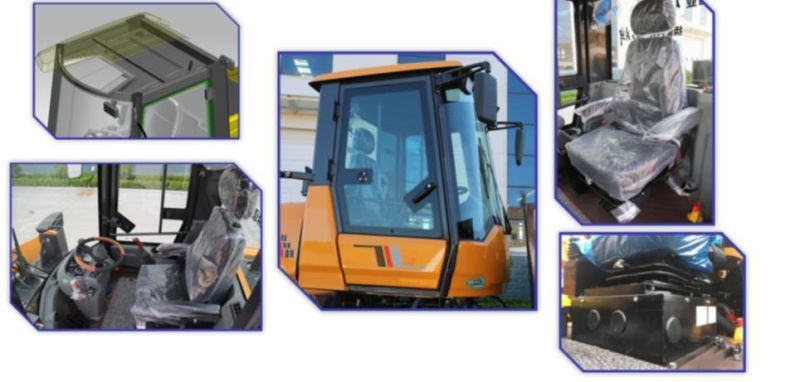

4.Cab
•Drawing stamping process gets high structural strength and big space for cab;
•Air-damping luxury seat , more comfortable and reduce exhaustion of long time driving;
•One-piece curved window shield gets better driving vision;
•Optional air conditioner improves driving comfort.

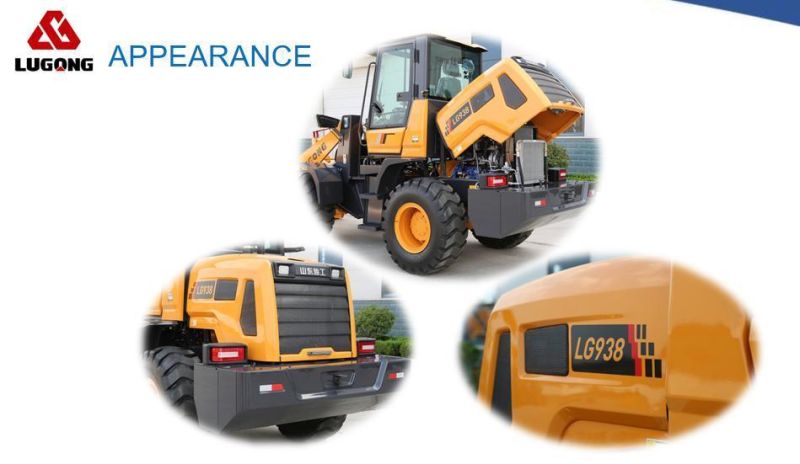

5.Appearance
•Drawing stamping process gets high structural strength and arc design gets good visual effect;
•Large open angle is convenient for repair;
•Electro-painting prevents metal from getting rusted soon.
•Stamping engineering gets more durable performance for grid plate.Small and narrow hole on it prevent dirties and crops into it.


Other Details
• Shanghai "Steel" brand tire and made of 18PR Nylon;
•H type joint with two sealing rings ensures no oil leakage;
•Front and rear brake pumps separated design prevents brake failure;
• Quick-change connector on air reservoir is convenient for inflation;
•LED lights are more bright and have longer life
Product Parameters


Rated Load	2500kgs	Engine Model	Yuchai 6105 Turbo
Standard Bucket	1.3m3	Gross Power	92KW
Operating Weight	7200kgs	Torque Converter	Hydraulic
Max. Dumping Height	3800mm	Transmission Box	CVT AWD 315 Split type
Turning Radius	6000mm	Axle	2.8T Big hub reduction gear
Tyre	17.5-25	Service Brake	Dual Air Hydraulic Disc

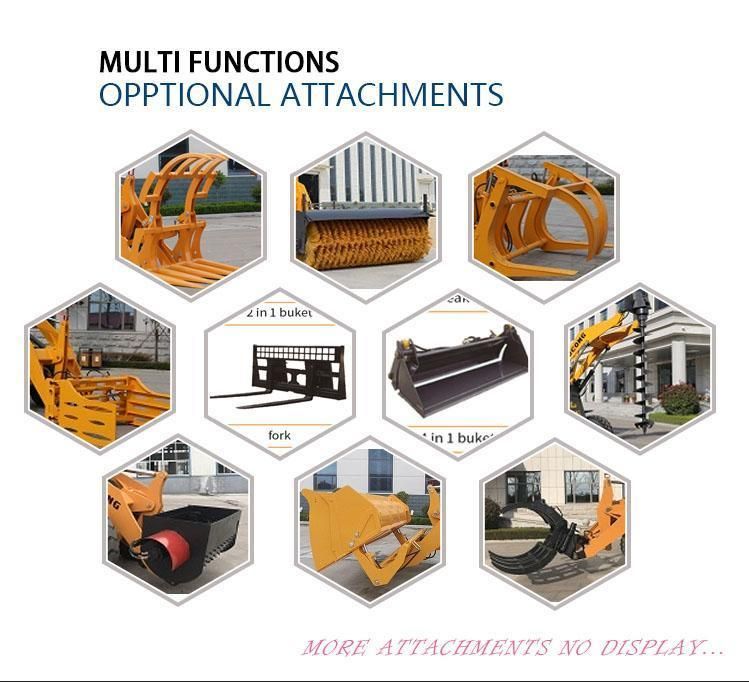

 Optional Attachements

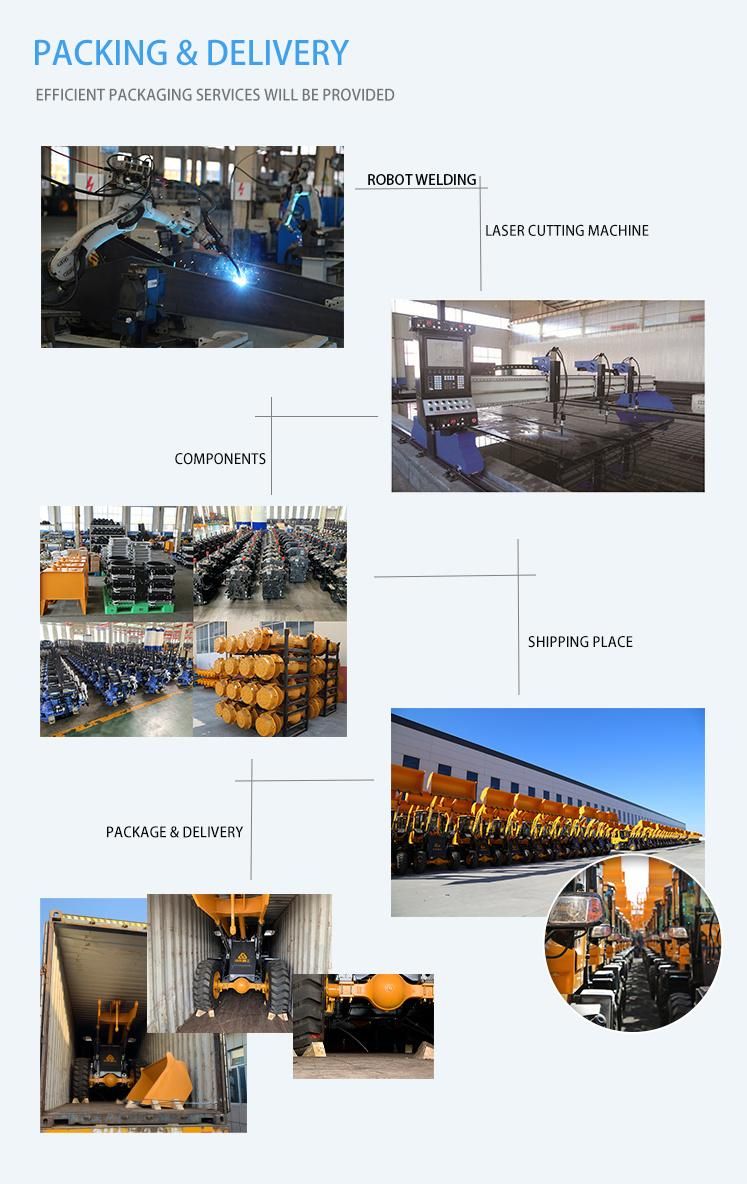

Packing & Delivery

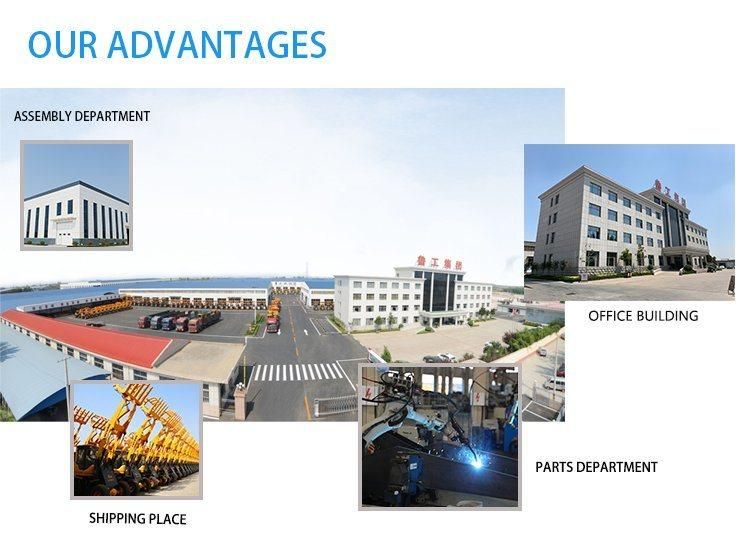

Company Profile

•Founded in 2000.
•Covers a land of 200,000 square meter.
•1100 employees,88  engineers.
•Compact wheel loaders are in leading position in demestic market.
•40,000 set of machines sold out on average last year

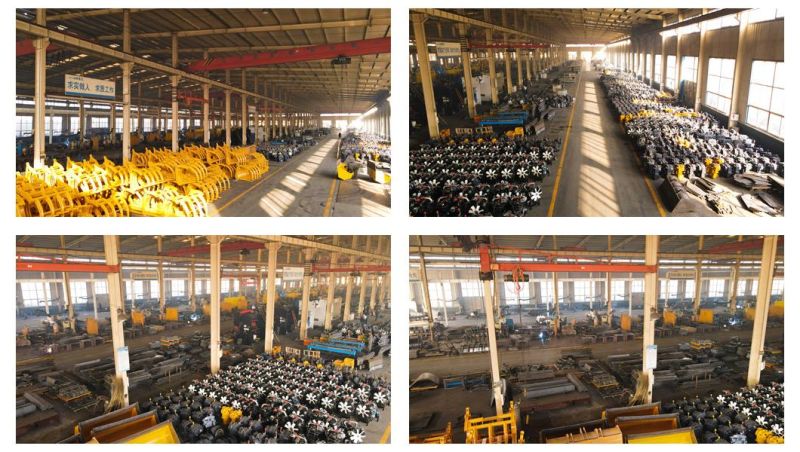

Workshop Glance

Overseas Market
  LUGONG has a domestic network of hundreds of dealers in over 30 provinces.Globally, LUGONG products have been hot-selling in dozens of countries and regions-South Asia, Middle East, Russia, Africa, South America and so on.And LUGONG is continuing to expand the dealer network all over the world.We are going to improve the service quality of dealers and bring best quality products to customers abidingly.

Exhibition
